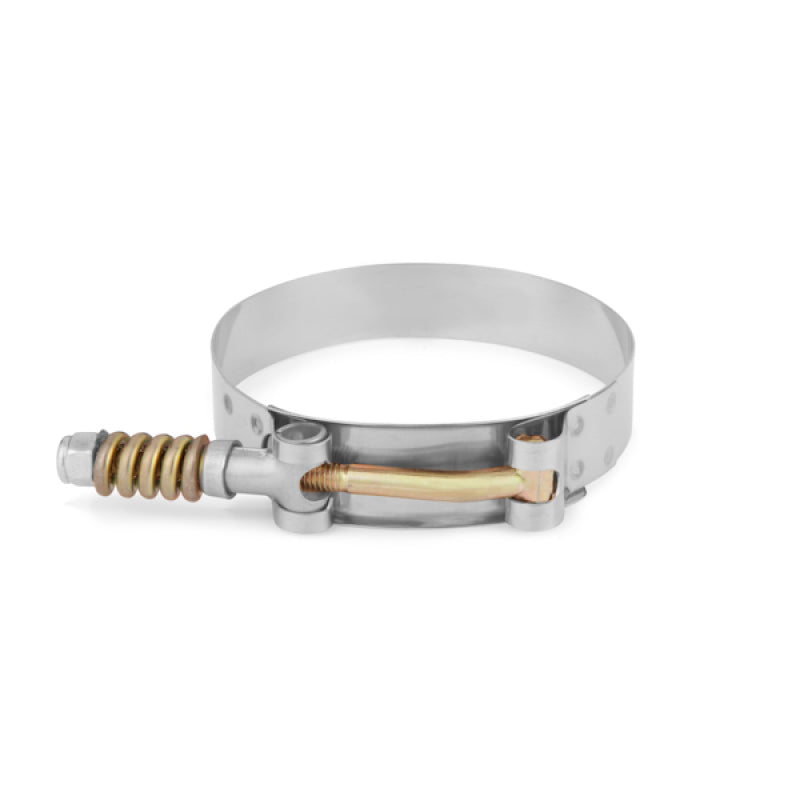

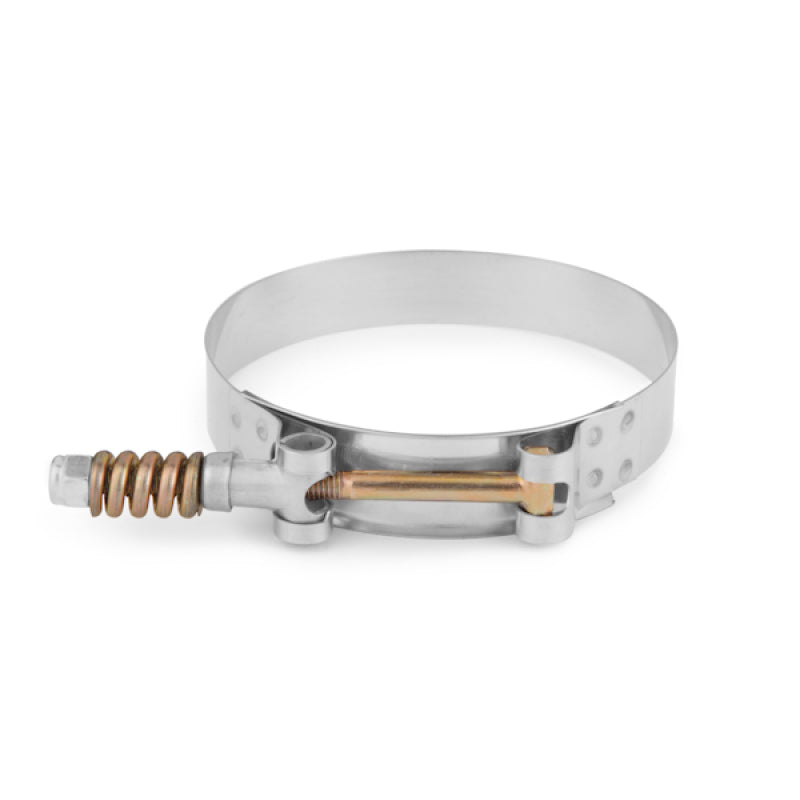

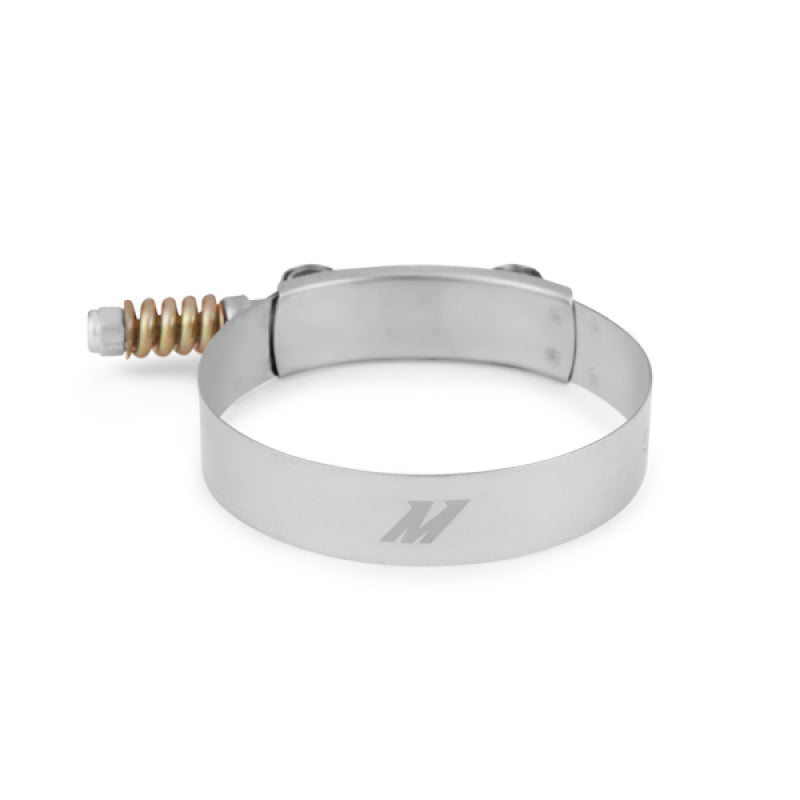

Mishimoto Stainless Steel Constant Tension T-Bolt Clamp

MISHIMOTO STAINLESS STEEL CONSTANT TENSION T-BOLT CLAMP, 3.11" – 3.43" (79MM – 87MM)
Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 3.11” – 3.43” (79mm – 87mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.
FEATURES:
- Securely clamps pipes, couplers, and hoses with an outer diameter from 3.11" – 3.43" (79mm – 87mm)
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
Min Clamp Diameter (In) 3.11
Max Clamp Diameter (In) 3.43
Min Clamp Diameter (mm) 79
Max Clamp Diameter (mm) 87
Clamp Style Constant Tension T-Bolt Clamp
Material Stainless Steel
Band Width 19
Finish Natural
SAE Number 72
Purchase Includes (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp
Recommended Tightening Torque 27 in-lbs (3 N*M)
