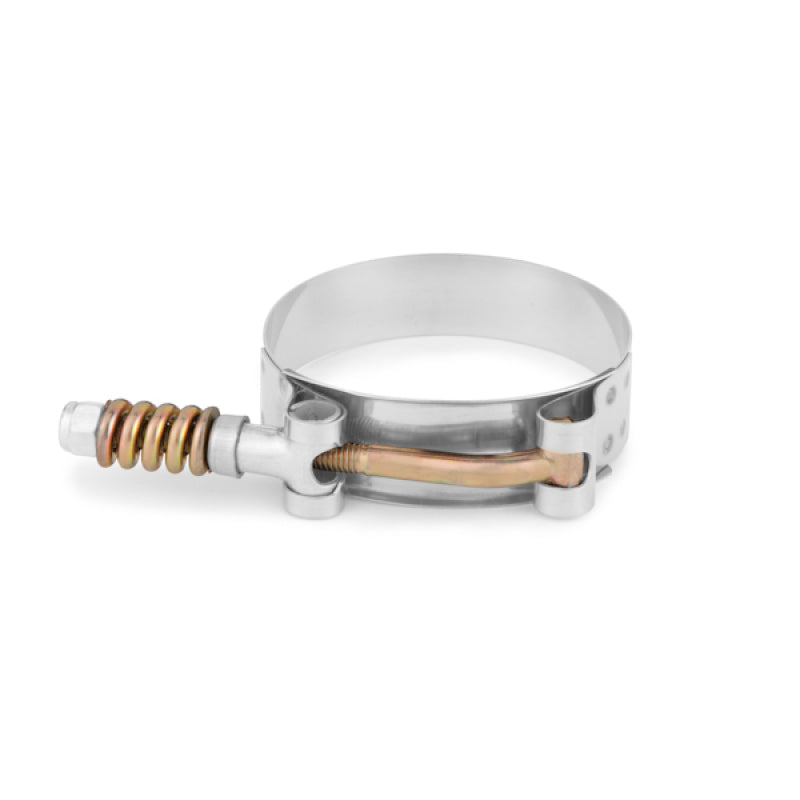

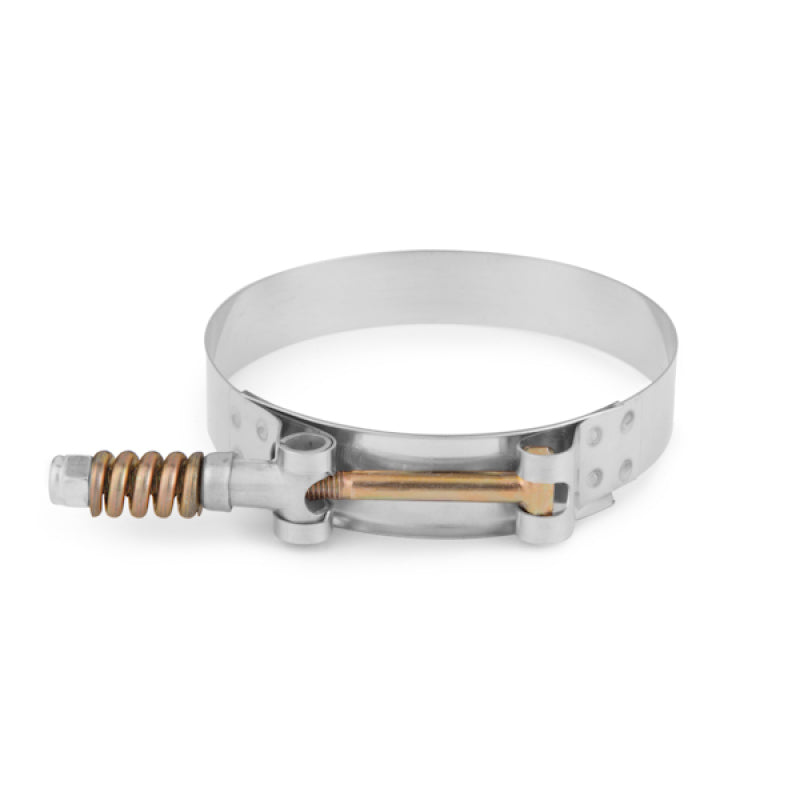

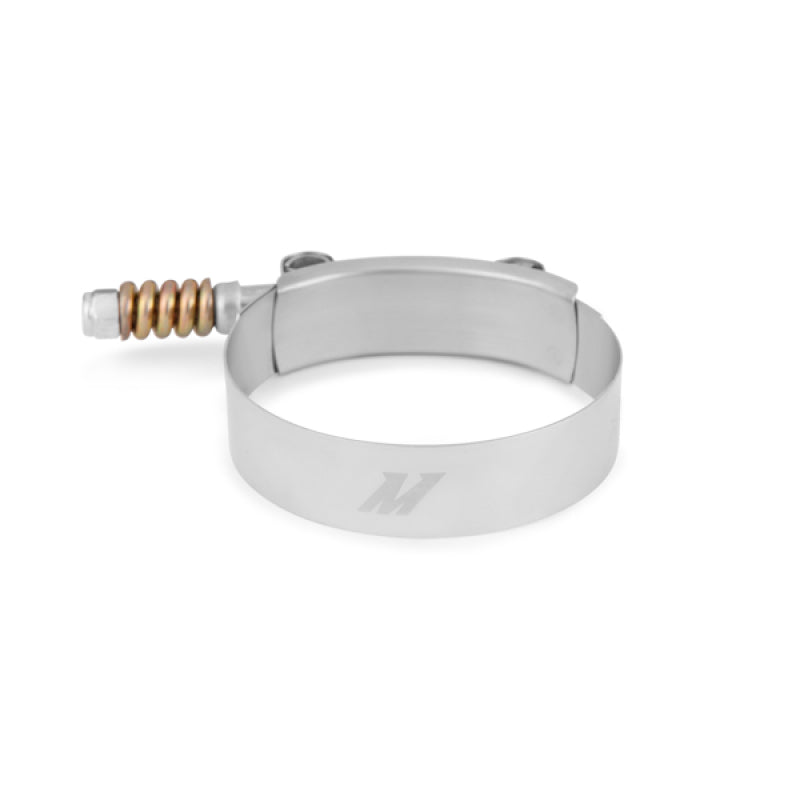

Mishimoto 2.75 inch Stainless Steel Constant Tension T-Bolt Clamp

MISHIMOTO STAINLESS STEEL CONSTANT TENSION T-BOLT CLAMP, 2.64" – 2.95" (67MM – 75MM)

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 2.64” – 2.95” (67mm – 75mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.

FEATURES:

• Securely clamps pipes, couplers, and hoses with an outer diameter from 2.64" – 2.95" (67mm – 75mm)
• Constant tension spring maintains clamping pressure through a wide range of temperatures
• Included self-locking nut prevents loosening with movement and vibration
• Stainless steel construction resists corrosion longer than zinc-plated clamps

Min Clamp Diameter (In) 2.64

Max Clamp Diameter (In) 2.95

Min Clamp Diameter (mm) 67

Max Clamp Diameter (mm) 75

Clamp Style Constant Tension T-Bolt Clamp

Material Stainless Steel

Band Width 19

Finish Natural

SAE Number 56

Purchase Includes (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp

Recommended Tightening Torque 27 in-lbs (3 N*M)

Note If using this clamp, we recommend purchasing:

• MMICP-AL-41
• MMICP-SS-151
• MMICP-SS-1751
