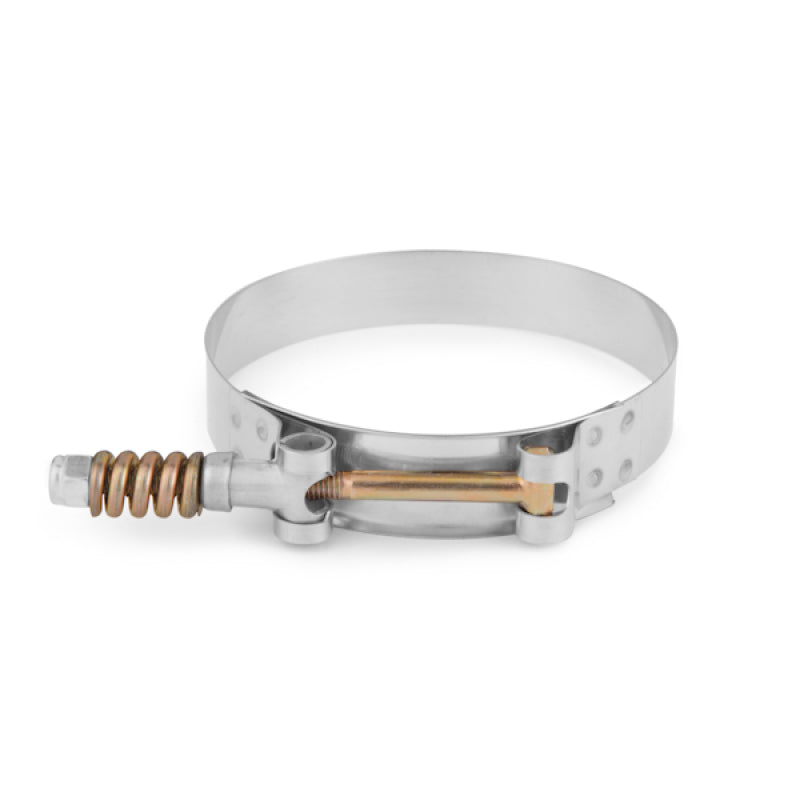

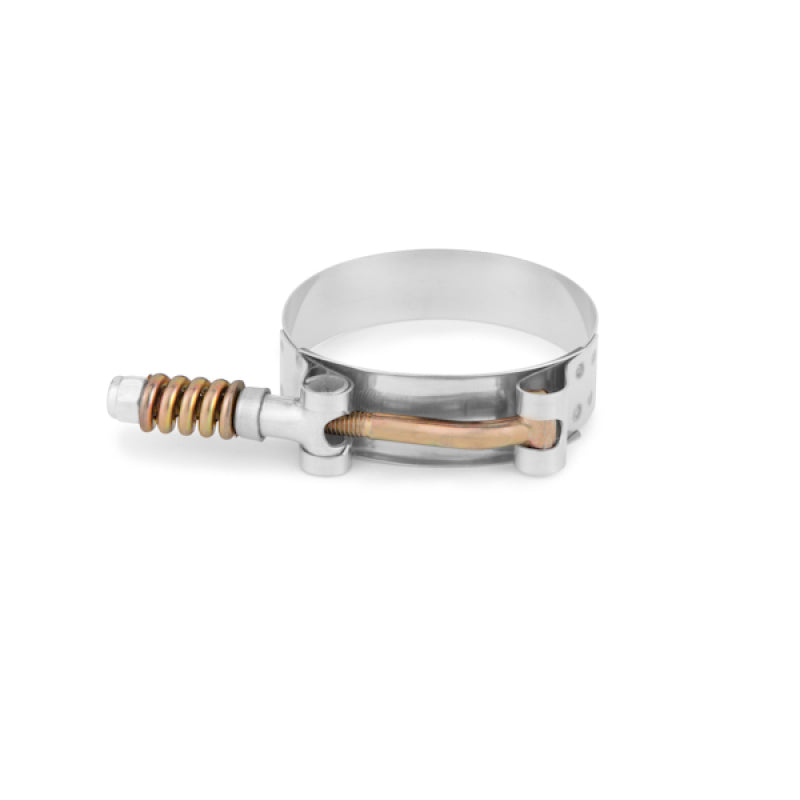

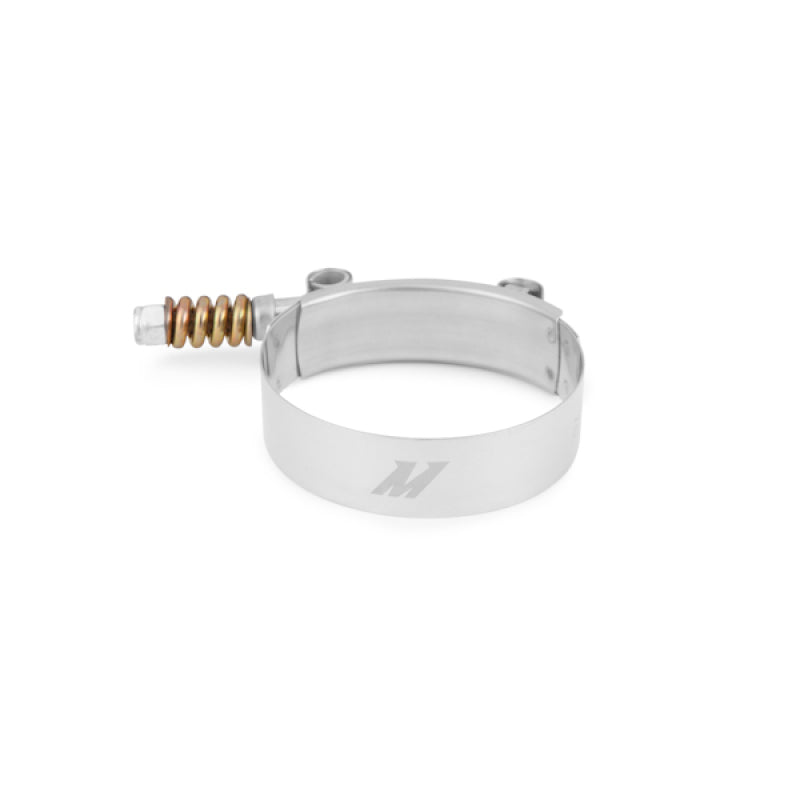

Mishimoto 2.5 inch Stainless Steel Constant Tension T-Bolt Clamp

MISHIMOTO STAINLESS STEEL CONSTANT TENSION T-BOLT CLAMP, 2.48" – 2.76" (63MM – 70MM)

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 2.48” – 2.76” (63mm – 70mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.

FEATURES:

Securely clamps pipes, couplers, and hoses with an outer diameter from 2.48" – 2.76" (63mm – 70mm)

Constant tension spring maintains clamping pressure through a wide range of temperatures

Included self-locking nut prevents loosening with movement and vibration

Stainless steel construction resists corrosion longer than zinc-plated clamps

Min Clamp Diameter (In) 2.48

Max Clamp Diameter (In) 2.76

Min Clamp Diameter (mm) 63

Max Clamp Diameter (mm) 70

Clamp Style Constant Tension T-Bolt Clamp

Material Stainless Steel

Band Width 19

Finish Natural

SAE Number 52

Purchase Includes (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp

Recommended Tightening Torque 27 in-lbs (3 N*M)

Note If using this clamp, we recommend purchasing:

• MMICP-AL-2750
• MMICP-AL-2759
• MMICP-AL-2751
• MMICP-AL-30
• MMICP-AL-39
• MMICP-AL-31
• MMICP-AL-40
• MMICP-AL-41
• MMICP-SS-151
• MMICP-SS-1751
