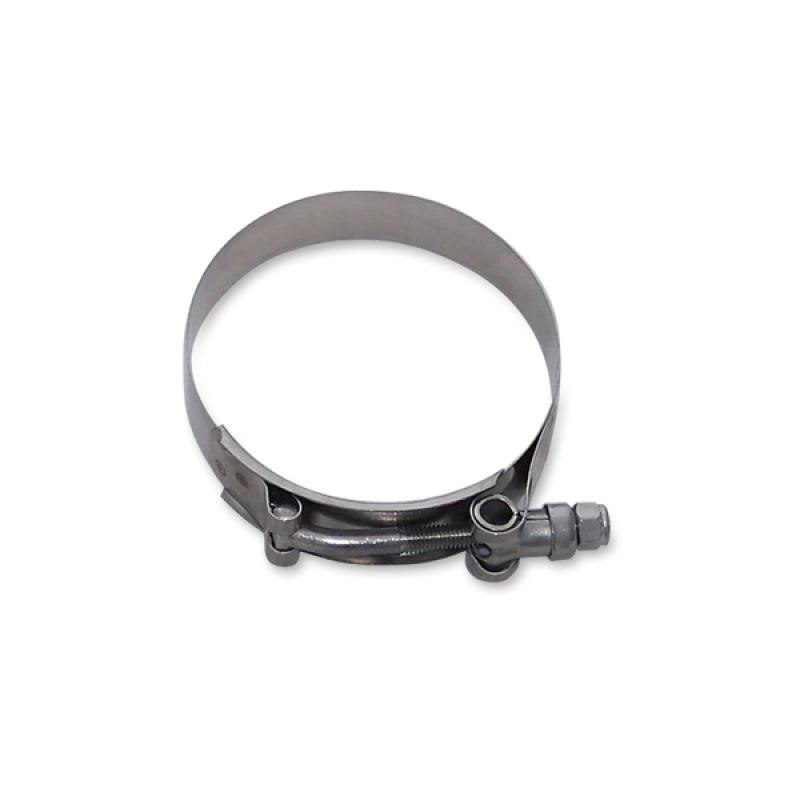

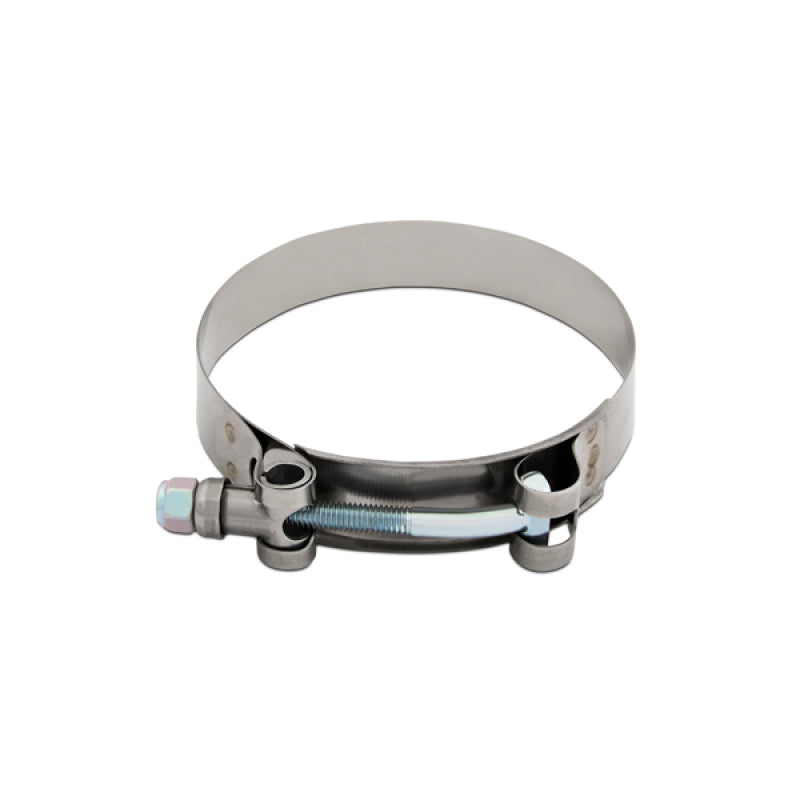

Mishimoto Stainless Steel T-bolt Clamp, 2.12- 2.44 (54mm - 62mm)

MISHIMOTO STAINLESS STEEL T-BOLT CLAMP, 2.12" – 2.44" (54MM – 62MM)
Mishimoto T-bolt clamps are a great solution for projects that need more clamping force than a standard worm gear clamp can provide. Built from the same stainless steel as our worm gear clamps, these T-bolt clamps are as durable as they are strong. This 2.12” – 2.44” (54mm – 62mm) T-bolt design provides superior clamping power while the included locking nut keeps the clamp tight against any vibration. Available in a wide range of sizes, these clamps are an excellent choice for a variety of applications.
FEATURES:
Securely clamps pipes, couplers, and hoses with an outer diameter from 2.12" – 2.44" (54mm – 62mm)
T-bolt design provides a strong and secure grip
Included self-locking nut prevents loosening with movement and vibration
Stainless steel construction resists corrosion longer than zinc-plated clamps

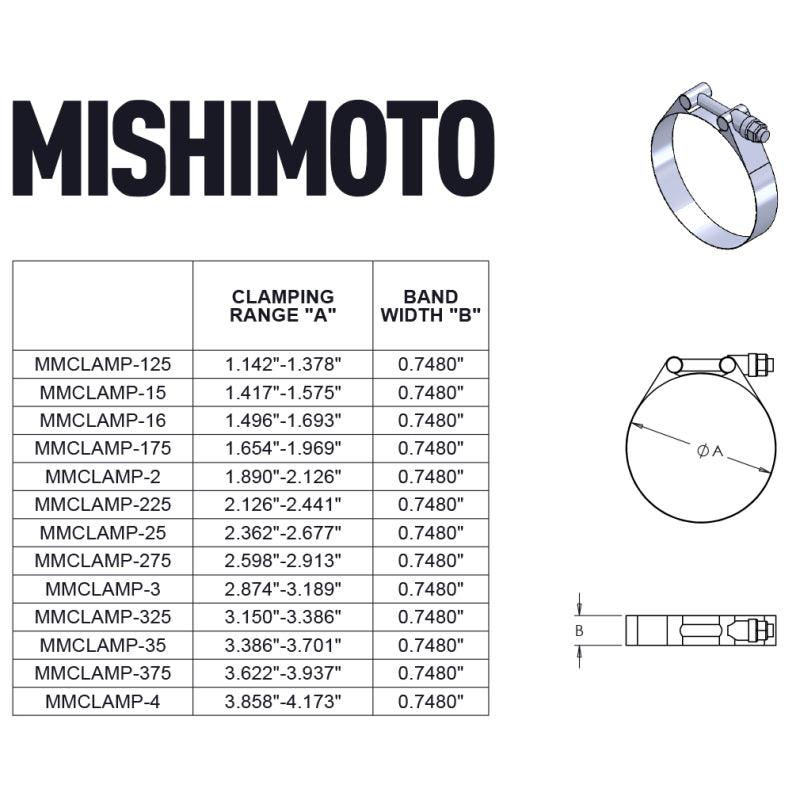

Min Clamp Diameter (In) 2.12
Max Clamp Diameter (In) 2.44
Min Clamp Diameter (mm) 54
Max Clamp Diameter (mm) 62
Clamp Style T-Bolt Clamp
Material Stainless Steel
Band Width 19
Finish Natural
SAE Number 40
Purchase Includes (1) Mishimoto Stainless Steel T-Bolt Clamp
Recommended Tightening Torque 27 in-lbs (3 N*M)
Note If using this clamp, we recommend purchasing:
- MMICP-250
- MMICP-259
- MMICP-251
