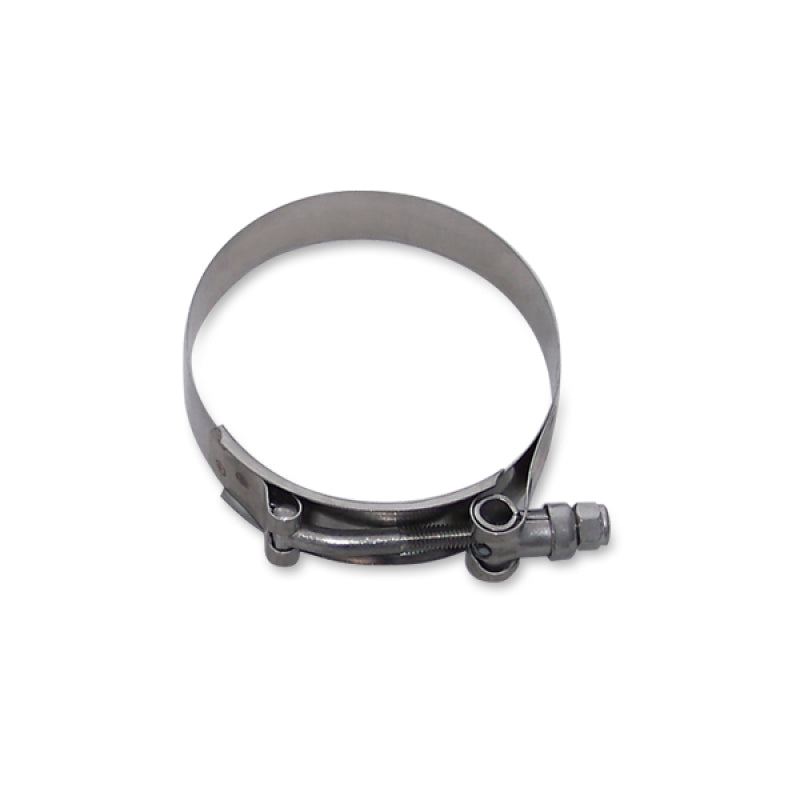

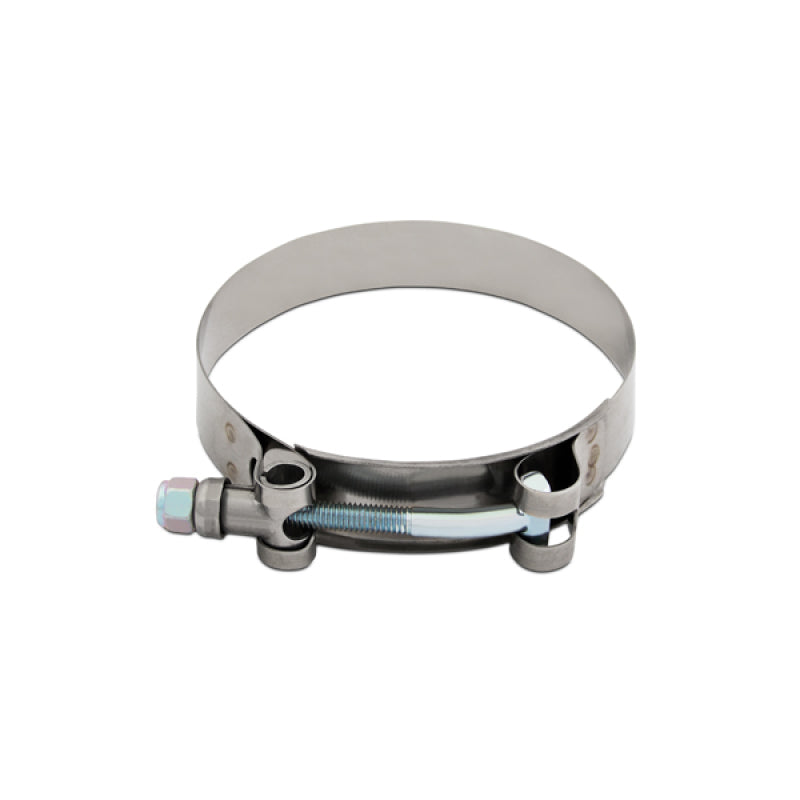

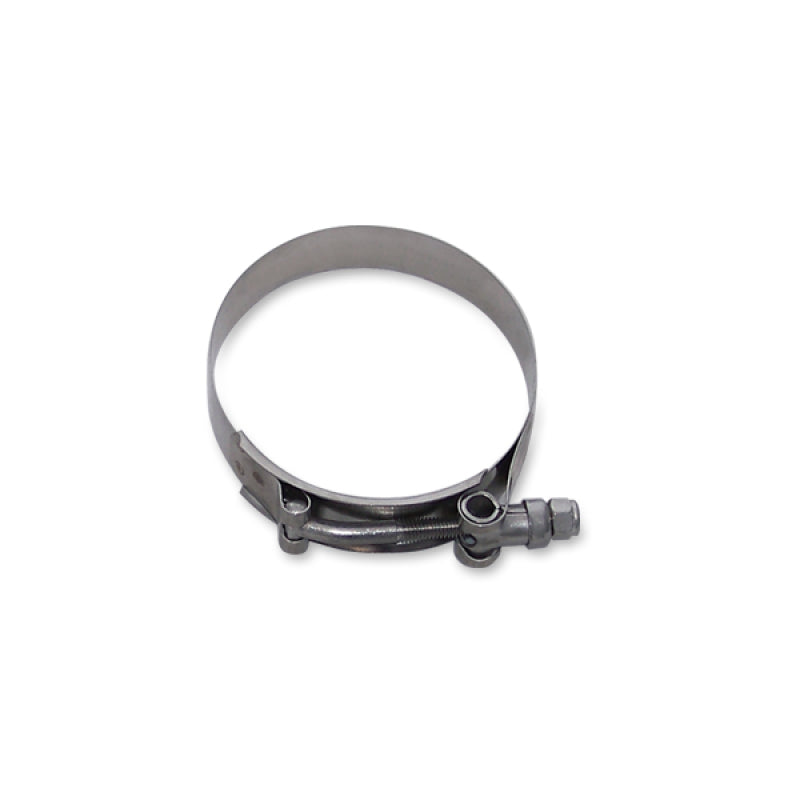

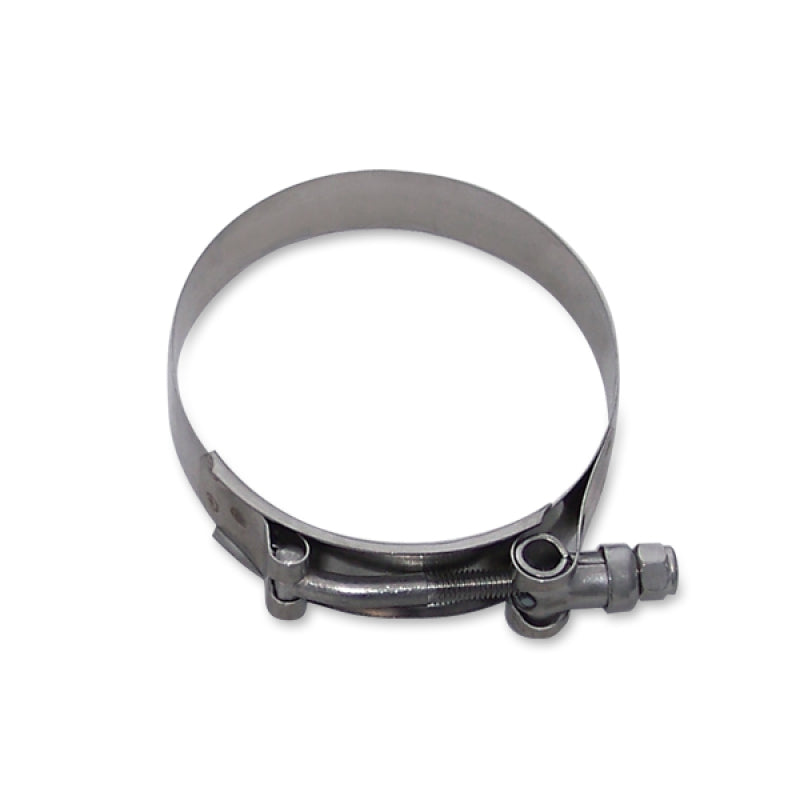

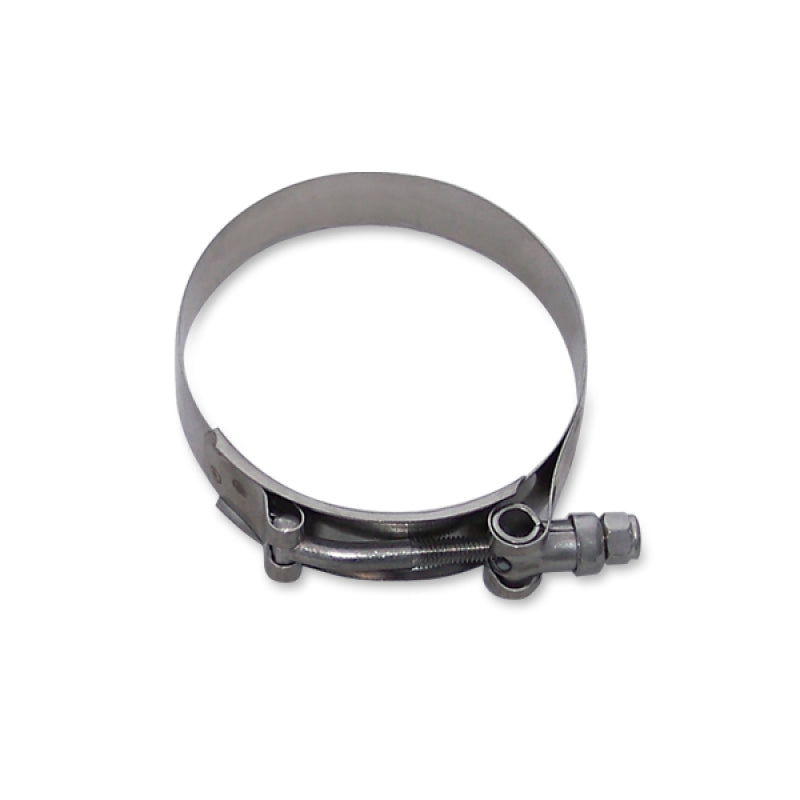

Mishimoto Stainless Steel T-Bolt Clamp, 1.89- 2.12 (48MM - 54MM)

Mishimoto T-bolt clamps are a great solution for projects that need more clamping force than a standard worm gear clamp can provide. Built from the same stainless steel as our worm gear clamps, these T-bolt clamps are as durable as they are strong. This 1.89” – 2.12” (48mm – 54mm) T-bolt design provides superior clamping power while the included locking nut keeps the clamp tight against any vibration. Available in a wide range of sizes, these clamps are an excellent choice for a variety of applications.

Features

• Securely clamps pipes, couplers, and hoses with an outer diameter from 1.89" – 2.12" (48mm – 54mm)
• T-bolt design provides a strong and secure grip
• Included self-locking nut prevents loosening with movement and vibration
• Stainless steel construction resists corrosion longer than zinc-plated clamps

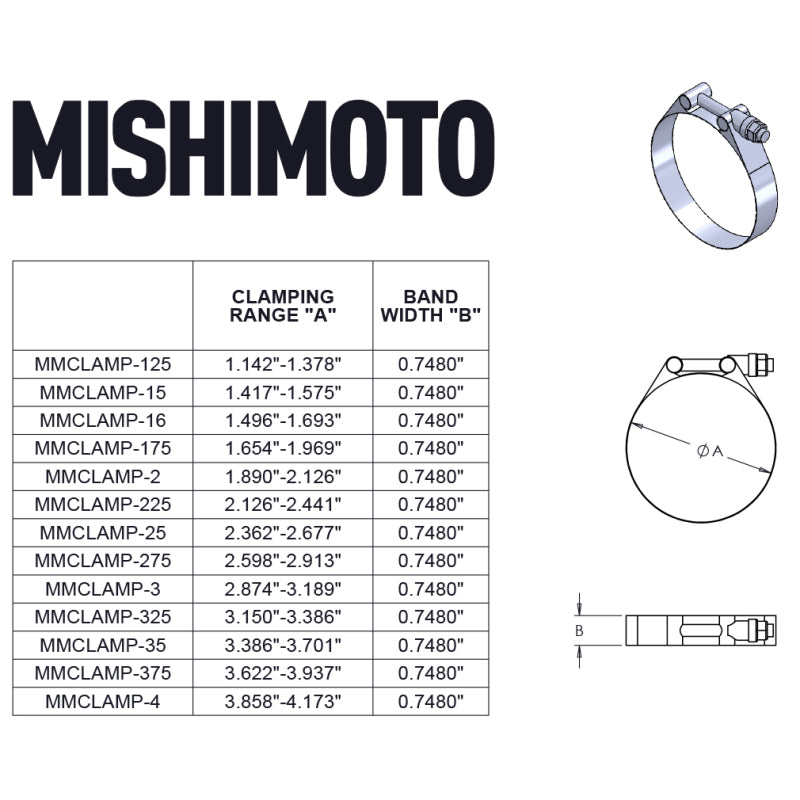

Min Clamp Diameter (In) 1.89

Max Clamp Diameter (In) 2.12

Min Clamp Diameter (mm) 48

Max Clamp Diameter (mm) 54

Clamp Style T-Bolt Clamp

Material Stainless Steel

Band Width 19

Finish Natural

SAE Number 32

Purchase Includes (1) Mishimoto Stainless Steel T-Bolt Clamp

Recommended Tightening Torque 27 in-lbs (3 N*M)

Note If using this clamp, we recommend purchasing:

• MMICP-2251
