Mishimoto Ford 6.0L Powerstroke Factory Fit Hot-Side, Lower Boot, 2003-2007
Ford 6.0L Powerstroke Factory Fit Hot-Side, Lower Boot, 20032007
Mishimoto is proud to release a direct-fit silicone boot with DuraCore" technology designed specifically for the 6.0L Ford Powerstroke. Mishimoto DuraCore" technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore" provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto constant tension T-bolt clamps for accurate and consistent holding power. This boot kit is precision engineered for a flawless fit on your Powerstroke and will provide years of service.
Features
- Direct fit for the 20032007 6.0L Powerstroke
- Replaces weak factory piping
- Improves airflow, power, and EGTs
- DuraCore" technology provides superior resistance to heat, pressure, fuel, and oil
- Includes high-quality constant-tension T-bolt clamps
Material Silicone DuraCore"

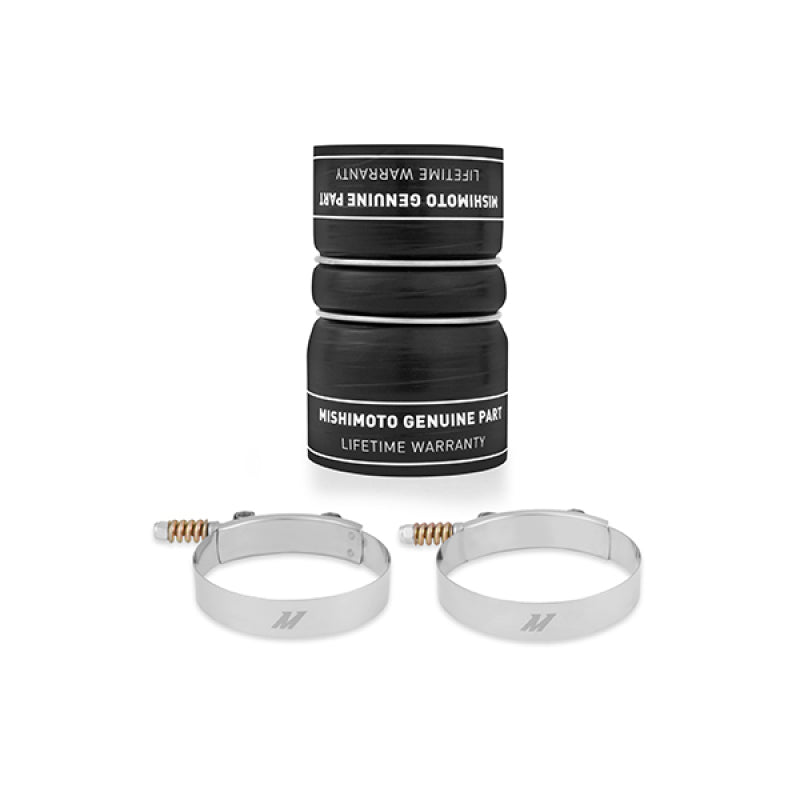

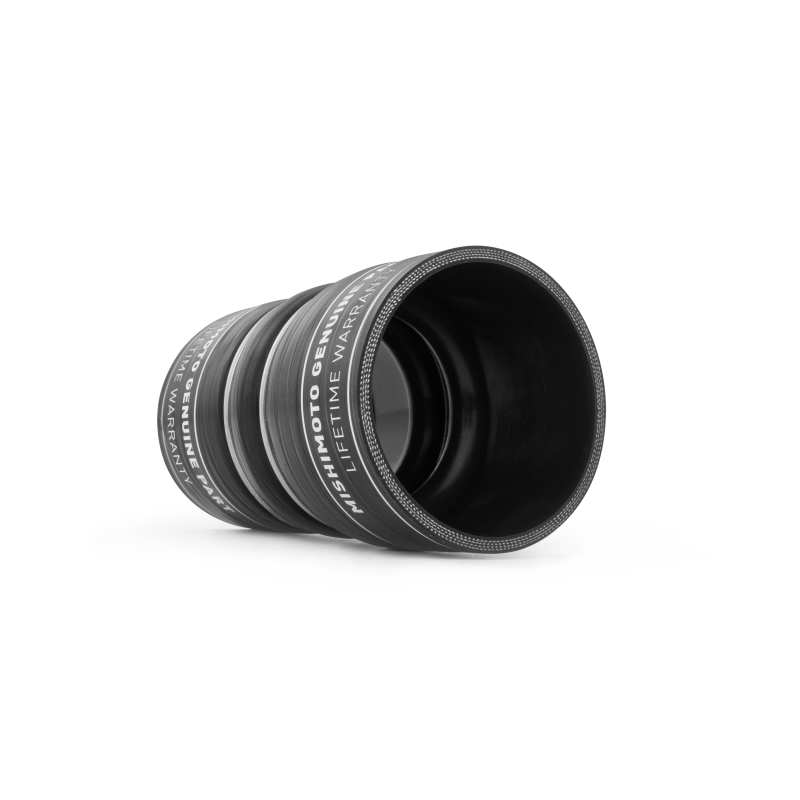

Purchase Includes (1) Hot Side, Lower Silicone Boot with DuraCore technology

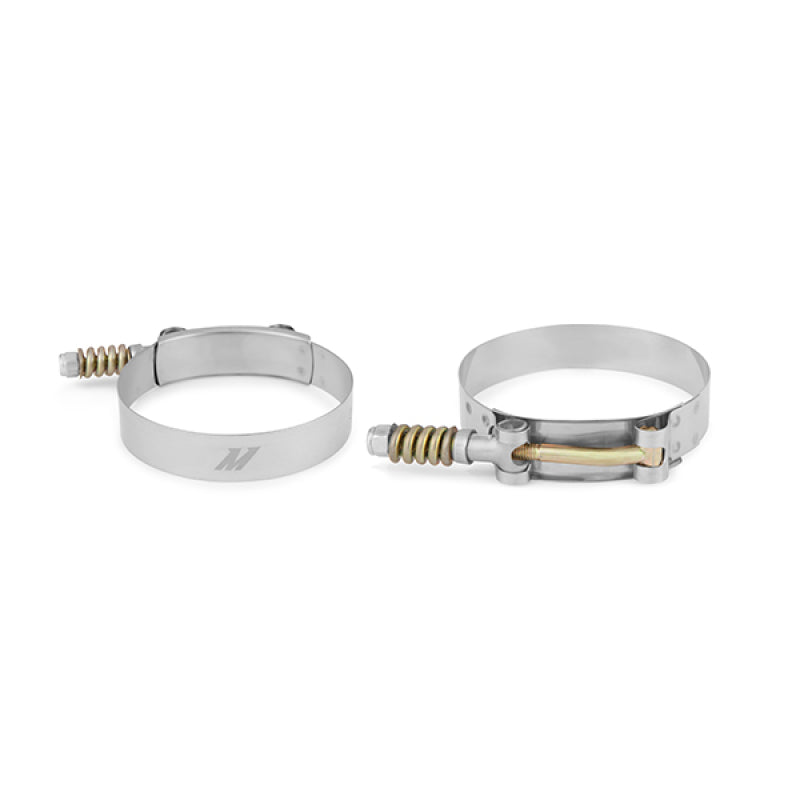

(2) Constant-Tension T-Bolt clamps
(1) Mishimoto Lifetime Warranty
Note Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Factory Part Number 6C3Z-6C640-B
Also Fits 2003-2007 Ford F250 w/ 6.0L Powerstroke
2003-2007 Ford F350 w/ 6.0L Powerstroke
2003-2007 Ford F450 w/ 6.0L Powerstroke
2003-2007 Ford F550 w/ 6.0L Powerstroke
Outer Diameter 3.40", 3.65"
Inner Diameter 3.00", 3.25"
Purchase Includes (1) Hot Side, Lower Silicone Boot with DuraCore technology
(2) Constant-Tension T-Bolt clamps
(1) Mishimoto Lifetime Warranty
Note Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Factory Part Number 6C3Z-6C640-B
Also Fits 2003-2007 Ford F250 w/ 6.0L Powerstroke
2003-2007 Ford F350 w/ 6.0L Powerstroke
2003-2007 Ford F450 w/ 6.0L Powerstroke
2003-2007 Ford F550 w/ 6.0L Powerstroke
Outer Diameter 3.40", 3.65"
Inner Diameter 3.00", 3.25"
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2005 | Ford | Excursion | XLS |
| 2003 - 2005 | Ford | Excursion | XLT, Eddie Bauer, Limited |
| 2004 - 2007 | Ford | F-250 Super Duty | Harley-Davidson Edition, King Ranch |
| 2003 - 2007 | Ford | F-250 Super Duty | Lariat, XL, XLT |
| 2004 - 2007 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2003 - 2007 | Ford | F-350 Super Duty | King Ranch, Lariat, XLT, XL |
| 2004 - 2007 | Ford | F-450 Super Duty | XL, XLT, Lariat |
| 2004 - 2007 | Ford | F-550 Super Duty | XLT, XL, Lariat |
