Mishimoto Nissan Titan Xd Baffled Oil Catch Can, 2016+

SKU: 13VQG | MPN:  MMBCC-XD-16CBE
Sale price$319.28 USD Regular price$331.80 USD
Sold out

  • Direct fit mounting bracket and hoses for the 2016+ Nissan Titan XD
  • Internal air diverter increases air turbulence to capture and prevent oil and water blow-by from entering the intake
  • Strategic positioning in the engine bay prevents condensation from freezing in cold weather
  • Oversized catch can capacity developed specifically for truck applications
  • Fully serviceable catch can
  • Fully sealed, billet 6061 aluminium catch cans

As powerful as the all-new Cummins V8 engine is, it still needs some protection, and the Mishimoto engineers created a baffled catch can kit to do just that.

Mishimoto’s 2016+ Titan XD Catch Can Kit features Mishimoto’s oversized Baffled Oil Catch Can with several internal baffles to better separate oil from the crankcase vapors. Strategic positioning in the engine bay prevents condensation buildup in the catch can from freezing in cold climates. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation.

To back up Mishimoto’s superior craftsmanship, each 2016+ Titan Catch Can Kit comes with the renowned Mishimoto Lifetime Warranty!

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

Overall Diameter2.5"

Inlet1/2" NPT

Outlet1/2" NPT

Drain Plug Thread Size3/8" NPT

Capacity4 oz

Assembled Weight1.8 lb

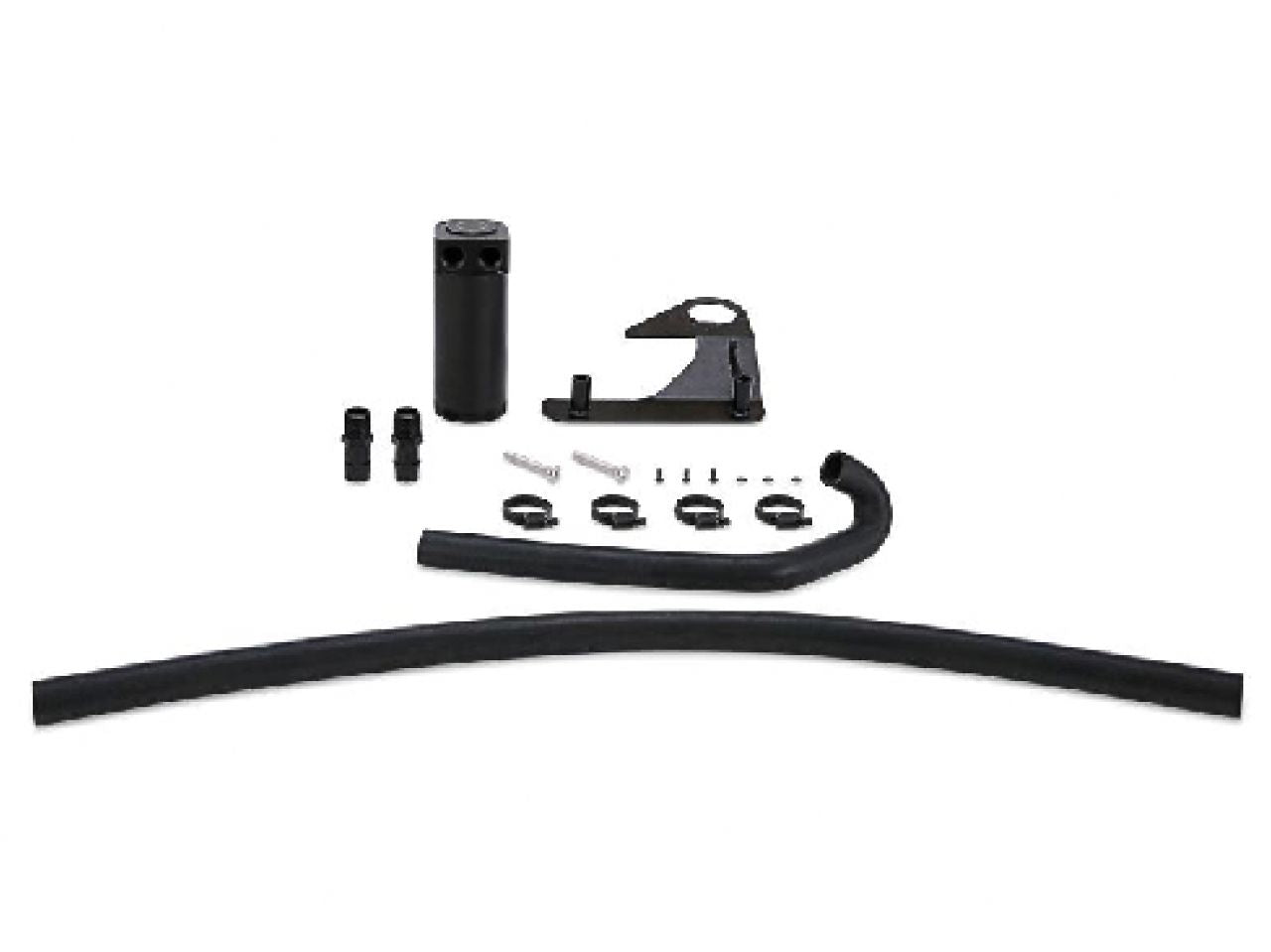

Purchase Includes(1) Application-Specific Mounting Bracket
(1) Black, Extended Length, Anodized 6061 Aluminum Catch Can
(2) Direct-Fit BUNA-N Hoses
(2) Plastic Barbed Fittings
(4) Worm Gear Clamps
(1) Air Diverter
(1) Internal Baffle & Rod
Mounting Hardware
Mishimoto Lifetime Warranty

Fits2016+ Nissan Titan XD

Engine CodesISV (5.0L V8 Cummins TurboDiesel)

Material6061 Aluminum

Install Torque Specs22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

NoteVehicles affected by Nissan service campaign #PC511 may require an ECU tune to use this catch can kit without a check engine light. The ECU re-flash performed under this campaign increases the sensitivity of the CCV pressure sensor and may lead the ECU to believe that a CCV hose is unplugged when using this kit. Please contact your dealer to verify if your vehicle has been re-flashed under this campaign.

After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle
