Mishimoto Cadillac Ats 2.0T Baffled Oil Catch Can, Ccv Side, 2013+, Black

SKU: 1D1QL | MPN:  MMBCC-ATS4-13CBK
Sale price$321.36 USD
Sold out

  • Direct fit for the 2013+ Cadillac ATS 2.0T
  • Installs in under 30 minutes
  • Can mounts in line with the CCV system to separate oil from air using a 50-micron bronze filter
  • Helps maintain proper octane levels to reduce potential detonation
  • Reduces carbon build-up on the intake valves
  • Internal air diverter increases air turbulence to improve oil separation
  • Application-specific bracket mounts the can in a serviceable location on left side strut tower
  • Billet 6061 aluminum sealed can
  • Filter and can are fully serviceable
  • Catch can has a 2 oz. capacity for longer servicing intervals
  • Offered with black, blue, or red silicone hoses
  • Application-specific hoses are pre-molded for a direct fit
  • Hoses include OEM style quick-disconnect fittings for easy installation
  • Mishimoto Lifetime Warranty

Do you want to keep your turbocharged Cadillac even more bulletproof from oil blow-by harm? You can accomplish this with the addition of the Mishimoto 2013+ Cadillac ATS 2.0T CCV Side Baffled Oil Catch Can Kit. While the blow-by the ATS produces can be extracted from the internal PCV valve, there is still more to be removed from the external CCV system.

The Mishimoto Cadillac ATS 2.0T CCV Side Catch Can Kit uses a 50-micron bronze filter to remove blow-by from the system, and can complement an already installed PCV can with an additional Billet 6061 aluminum can, for those of you who want nothing short of the highest level of protection for your LTG. The kit comes with silicone hoses that are available in blue, black, or red. The Mishimoto 2013+ ATS 2.0T CCV Side Catch Can Kit includes all mounting and installation hardware, and ships with the Mishimoto Lifetime Warranty.

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

Overall Height3.8"

Overall Diameter2.5"

Inlet3/8" NPT

Outlet3/8" NPT

Drain Plug Thread Size3/8" NPT

Capacity2 fl oz

Assembled Weight0.9 lbs

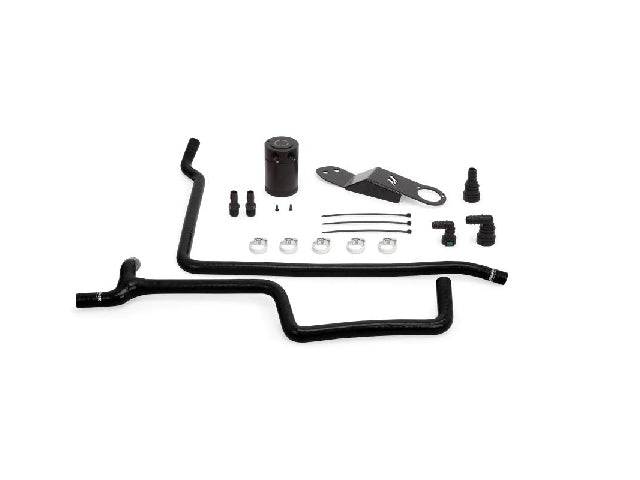

Purchase Includes(1) Application-Specific Mounting Bracket w/ hardware
(1) Black, Anodized 6061 Aluminum Catch Can
(2) Direct-Fit Silicone Hoses w/ quick-disconnect fittings
(5) High-Quality Worm Gear Clamps
(2) Metal Tool for removing factory fittings
(2) Plastic Barb Fittings
(1) Air Diverter
(1) Internal Baffle & Rod
(1) 3/8" NPT Plug
(1) Large O-Ring
Mounting Hardware
Mishimoto Lifetime Warranty

Fits2013+ Cadillac ATS 2.0T

Engine CodesLTG

Chassis CodesAlpha

Material6061 Aluminum

Install Torque Specs22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

NoteAfter installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

BaffledTrue
