Mishimoto Ford Focus RS Performance Air Intake, 2016+

Ford has finally manufactured a Focus wielding the RS badge, and we couldnt be happier. We wanted to improve and upgrade a lot of things on this car and among those priorities had to be an intake. Our engineers have spent many hours in development, performing a handful of tests and data collection, so that our intake gives you the right results.

This is a full intake, replacing every core component in the OEM system, including the airbox and the intake pipe. Our kit includes a 3 aluminum pipe that routes all the way to the turbo, with all of the necessary bracketry for a perfect fit. The airbox has a similar design to the stock airbox, facilitating an improved pressure drop with an open top, so that the filter is exposed to more air while also sealing the box against the hood, keeping it fully enclosed. This airbox uses the factory air inlet ducts, grabbing air right from the front of the car, and the ports are surrounded with weather stripping to avoid movement.

We have put this intake through hundreds of miles of road testing and countless dyno runs to ensure repeatable and reliable max gains of 12 hp and 15 ft-lb of torque (more details below in our engineering blog). No cutting or modification to factory components will be necessary.

FEATURES

• Direct fit for 2016+ Ford Focus RS
• Dyno-proven maximum gains of up to 12 whp and 15 wtq on the stock tune
• Designed to work with stock tune with no additional tuning required
• Air filter placed to receive maximum airflow from the front of the vehicle
• Black powder-coated airbox keeps unwanted hot air from entering the air filter
• Highly aggressive intake tone under acceleration
• Available with a polished, wrinkle black or Wrinkle Nitrous Blue pipe
• Installs in under 1 hour
• CARB EO #: D-759-2

Pipe Diameter 3"

Airbox Material Steel

Oiled Filter 38 g of oil on filter

Pipe Material Mandrel-Bent Aluminum

Engine Codes 2.3L EcoBoost

Fits 20162018 Ford Focus RS

Note Installation Torque Specs
22 in-lbs (2.5N*M) recommended for all worm gear clamps.
These clamps have an operating range of 18-27 in-lbs 2-3N*M.
Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Air Filter Part Number MMAF-3006

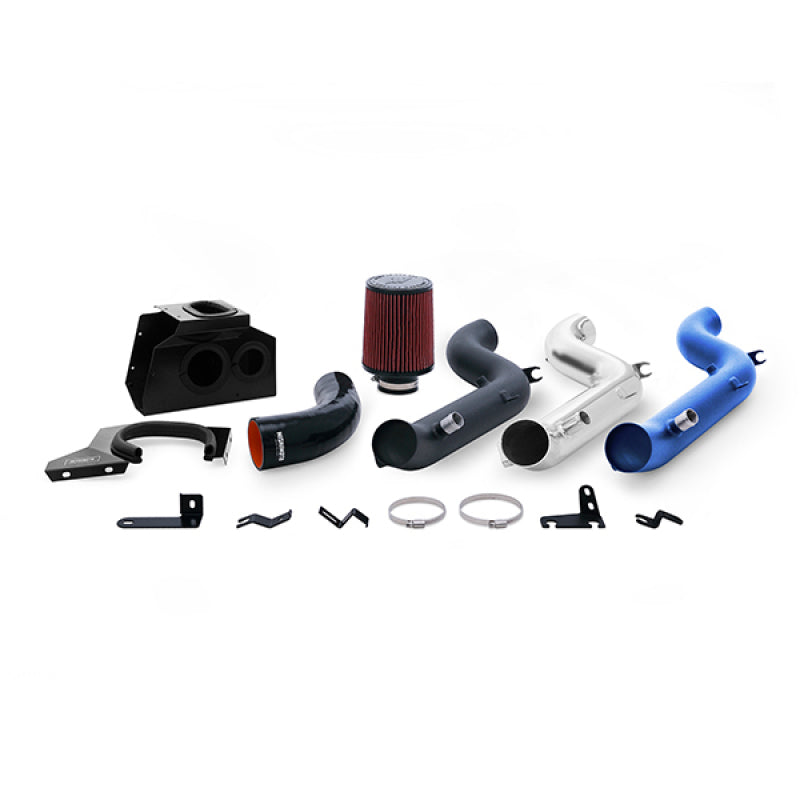

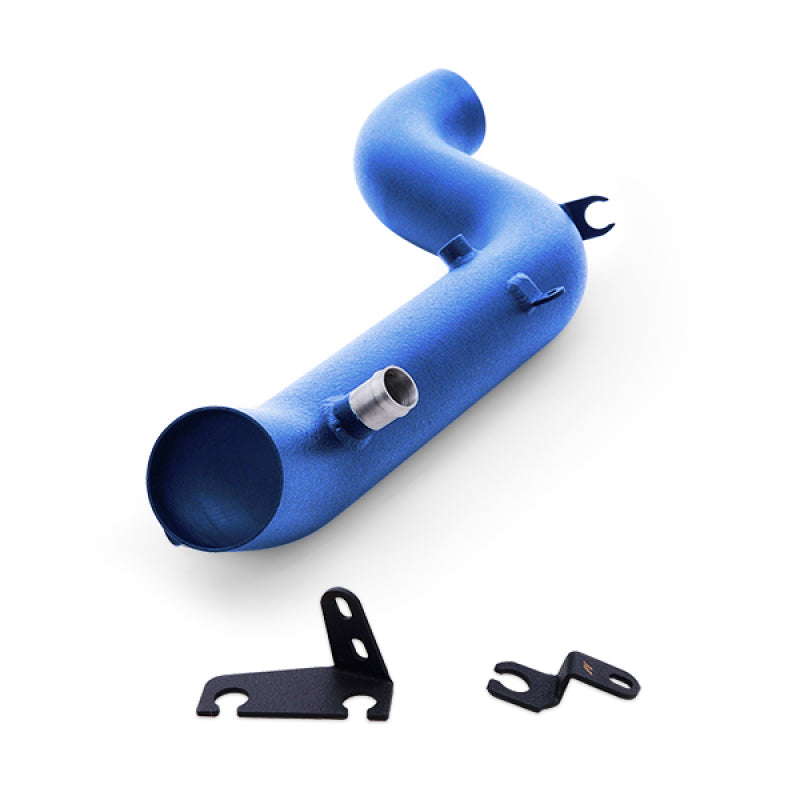

Purchase Includes (1) Aluminum Intake Pipe w/ CNC-Machined MAP Section

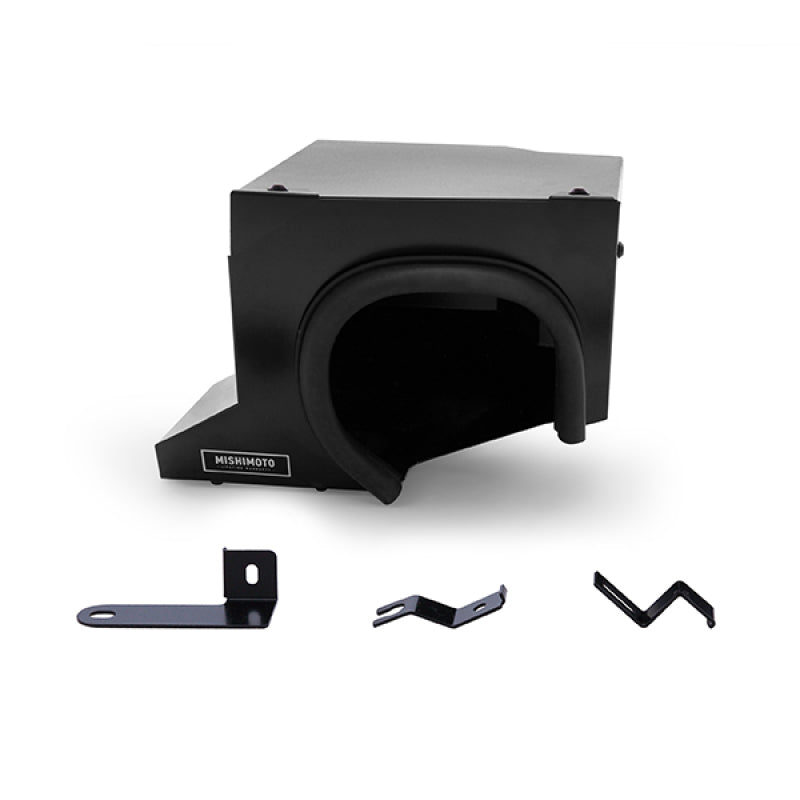

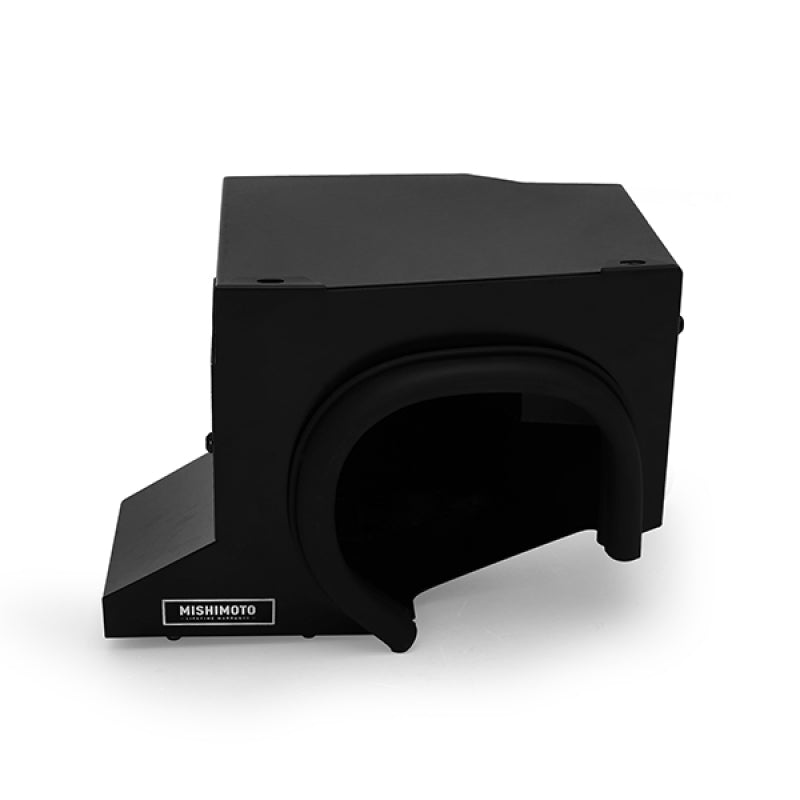

(1) Airbox w/ Protective Edging

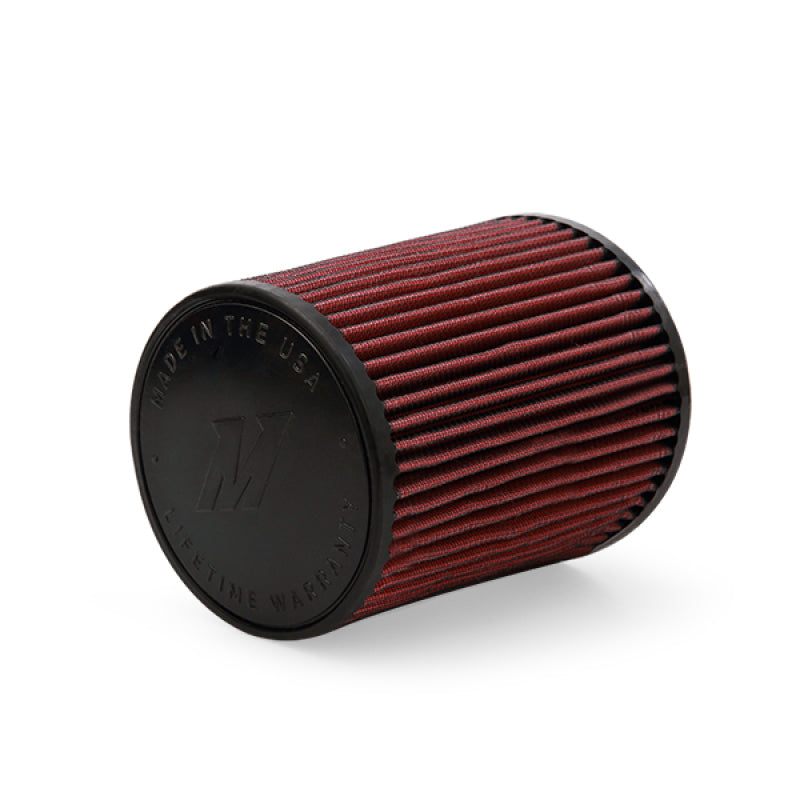

(1) High-Flow Oiled Filter

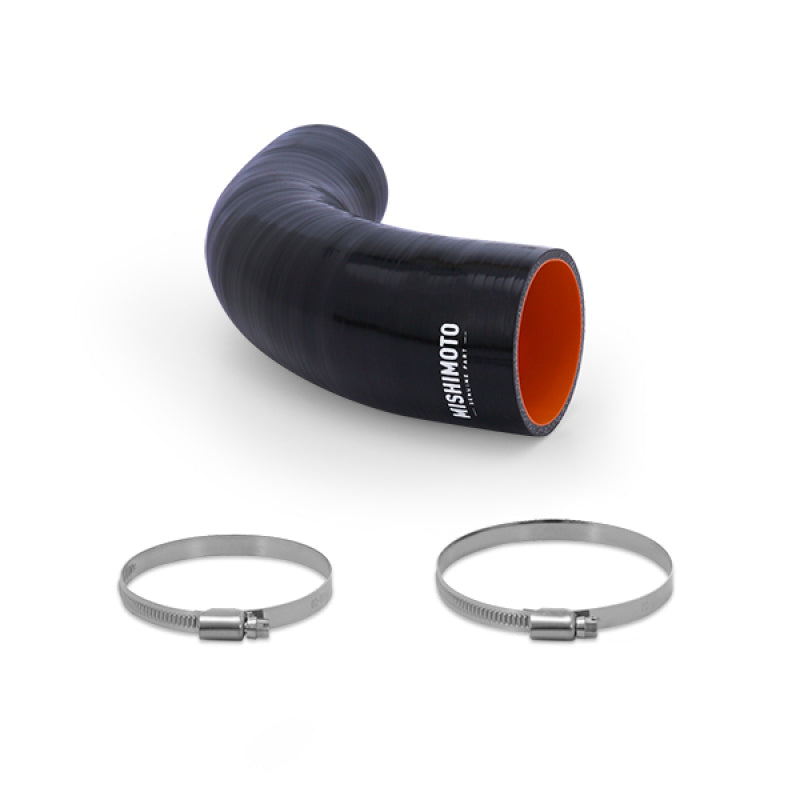

(1) Silicone Turbo Inlet Hose
(2) Worm Gear Clamps

Vehicle Fitments:
