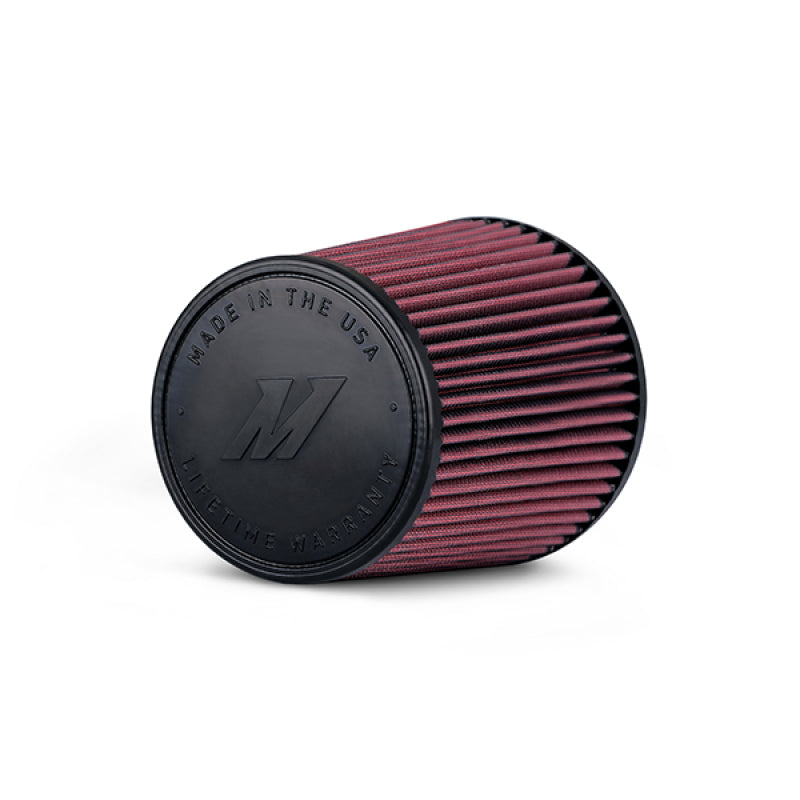

Mishimoto Performance Air Filter, 4" Inlet, 7" Filter Length

Provide your performance vehicle with superior air filtration and optimal airflow with a Mishimoto Performance Air Filter! Mishimoto oiled air filters can be cleaned and reused, which allows for a lifetime of consistent, efficient performance for extended use on the street, track, or trails. Mishimoto filters feature an exceptionally robust construction and include a high-quality clamp for installation. These filters are made in the USA and include the Mishimoto Lifetime Warranty

Oil ColorRed

NoteFilter re-oil is not included in Lifetime Warranty.

MMAF-13625 SPECS
Flange ID - 1.3625"
Flange Height - 0.625"
Top Width - 3"
Filter Height - 2.42"
Overall Height - 3.045"
Base Width - 3"
Quantity of Oil - 6 g of oil on filter

MMAF-2757 SPECS
Flange ID - 2.75"
Flange Height - 1.75"
Top Width - 5.25"
Filter Height - 7"
Overall Height - 8.25"
Base Width - 5.875"
Quantity of Oil - 38 g of oil on filter

MMAF-3006 SPECS
Flange ID - 3.00"
Flange Height - 1.75"
Top Width - 5.125"
Filter Height - 6"
Overall Height - 7.75"
Base Width - 6"
Quantity of Oil - 32 g of oil on filter

MMAF-2758 SPECS
Flange ID - 2.75"
Flange Height - .875"
Top Width - 4"
Filter Height - 7.75"
Overall Height - 8.75"
Base Width - 4.75"
Quantity of Oil - 47 g of oil on filter

MMAF-3007 SPECS
Flange ID - 3"
Flange Height - 1.75"
Top Width - 5.25"
Filter Height - 7"
Overall Height - 8.75"
Base Width - 5.875"
Quantity of Oil - 32 g of oil on filter

MMAF-3506 SPECS
Flange ID - 3.5"
Flange Height - 1.75"
Top Width - 5.25"
Filter Height - 6"
Overall Height - 7.75"
Base Width - 6.25"
Quantity of Oil - 32 g of oil on filter

MMAF-3508 SPECS
Flange ID - 3.5"
Flange Height - 1.75"
Top Width - 5.25"
Filter Height - 8"
Overall Height - 9.75"
Base Width - 6.25"
Quantity of Oil - 46 g of oil on filter MMAF-4007 SPECS
Flange ID - 4"
Flange Height - 1.75"
Top Width - 5.25"
Filter Height - 7"
Overall Height - 8.75"
Base Width - 6.438"
Quantity of Oil - 38 g of oil on filter

MMAF-5007 SPECS
Flange ID - 5"
Flange Height - 1"
Top Width - 4"
Filter Height - 7"
Overall Height - 8"
Base Width - 6.5"
Quantity of Oil - 42 g of oil on filter

MMAF-2756 SPECS
Flange ID - 2.75"
Flange Height - 1.75"
Top Width - 5.25"
Filter Height - 5.827"
Overall Height - 7.577"
Base Width - 5.875"
Quantity of Oil - 33 g of oil on filter

CautionINSTALLATION TORQUE SPECS
27 in-lbs (3N*M) recommended for all t-bolt and constant-tension t-bolt clamps.
These clamps have an operating range of 18-35 in-lbs (2-4N*M).

Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
