Mishimoto Mazdaspeed 3 Baffled Oil Catch Can, PCV Side, 2007-2013

SKU: 1EFBE | MPN:  MMBCC-MS3-07PBE2
In stock
Sale price$228.45 USD Regular price$249.00 USD
Save $20.55

Mazdaspeed 3 Baffled Oil Catch Can, PCV Side, 2007-2013

Add a layer of protection to your 2007-2013 Mazdaspeed 3 with the Mishimoto Baffled Oil Catch Can Kit. The MS3 might have been one of the pioneers in the North American hot-hatch movement, but like the rest of the direct-injected turbocharged engines of that era, it suffers from copious carbon buildup due to engine blow-by. The 2.3L MZR turbo has a unique issue with blow-by. Its equipped with a top-mounted intercooler, which is prone to heat-soak, effectively baking all of the oil and fuel droplets into the heat exchanger.

With the Mishimoto Baffled Oil Catch Can Kit, those crankcase gases are intercepted before even reaching the intercooler. We also included our taller 7.5oz catch can to compensate for the increased levels of blow-by that the Mazdaspeed 3 experiences in colder weather. Also included in the kit are pre-formed hoses to ensure a simple and direct fit in your MS3. As with all of our products, the Mazdaspeed 3 Baffled Oil Catch Can Kit is covered under the Mishimoto Lifetime Warranty, keeping your 2.3L MZR Turbo blow-by free over the lifetime of the car.

Features

  • Direct fit for the 2007-2013 Mazdaspeed 3
  • Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
  • Helps reduce carbon build-up on intake valves
  • Patent pending billet 6061 aluminum sealed can sealed with Viton" O-rings
  • Installs in under 30 minutes
  • Robust, application-specific bracket mounts the can in a serviceable location
  • Includes pre-molded hoses for simplified installation
  • Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase.
  • Defends intake system and essential engine components from oil blow-by
  • CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
  • Catch can has a 7.5 oz. capacity for longer serving intervals
  • Internal air diverter increases air turbulence to improve oil separation
  • Helps maintain proper octane levels to reduce potential detonation
  • Filter and can are fully serviceable

Inlet 1/2"

Outlet 1/2"

Drain Plug Thread Size 3/8" NPT

Capacity 7.5 fl oz.

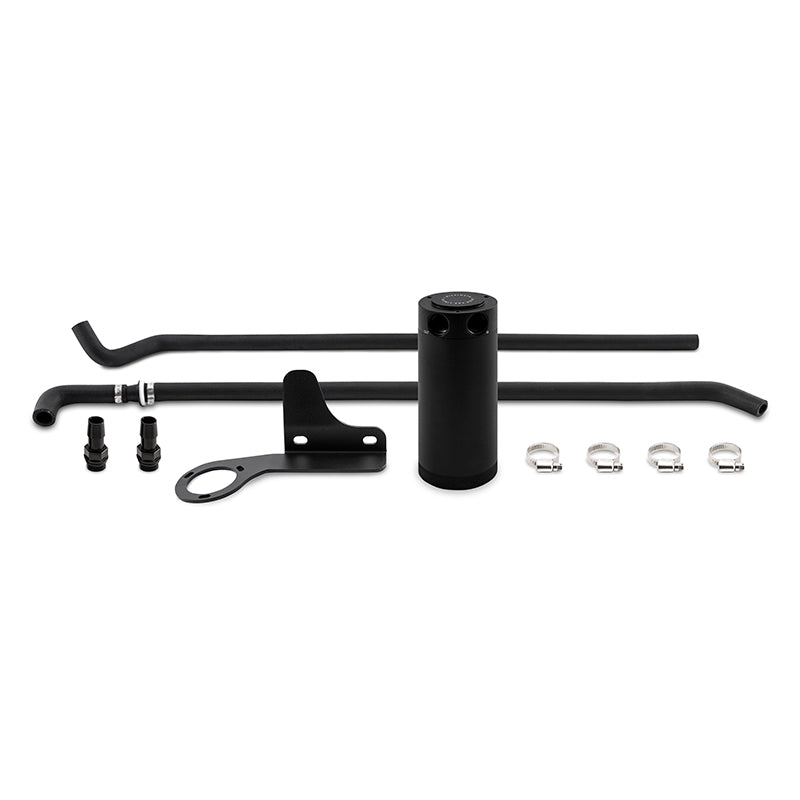

Purchase Includes (1) Large Baffled Oil Catch Can
(1) Application Specific Mounting Bracket
(2) Direct-Fit Hoses with Integrated Check Valve
(4) Worm-Gear Clamps
(2) 1/2" Aluminum Barbed Fittings
Mounting Hardware

Fits 2007-2013 Mazdaspeed 3

Material 6061 Aluminum

Install Torque Specs 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Baffled True



Vehicle Fitments:

Year Make Model Submodel
2008 - 2012 Mazda 3 GS
2012 - 2013 Mazda 3 GS-SKY
2008 - 2013 Mazda 3 GT, GX
2010 - 2013 Mazda 3 I Touring, Grand Touring
2007 - 2013 Mazda 3 Mazdaspeed, S, i
2011 Mazda 3 Sport GT, Sport GX, Sport GS
