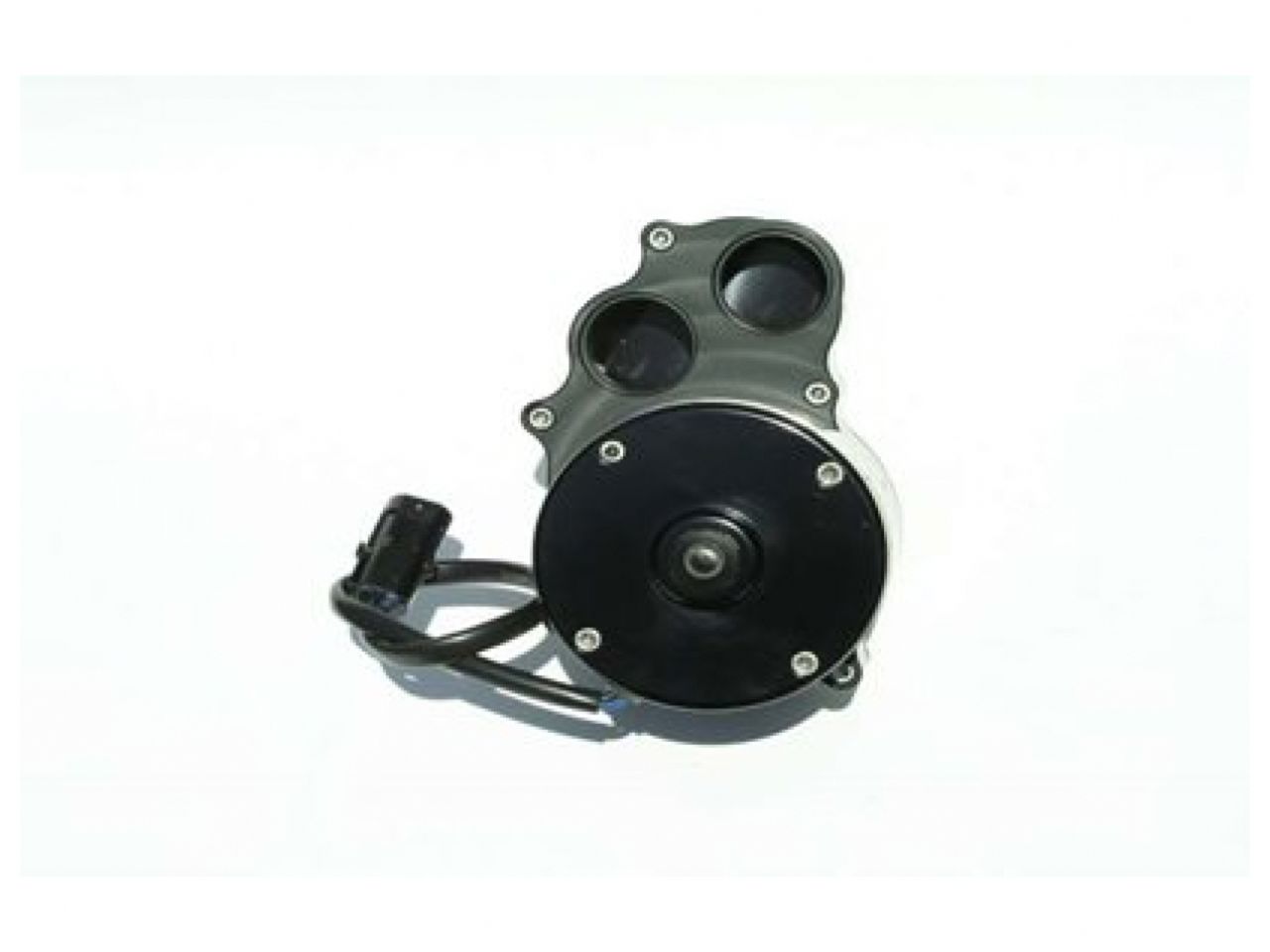

Meziere Electric Pump Remote, High Flow Inline, Dual Out, 55 GPM
American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say. Our 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value! Remote pumps fill many different needs. When an engine mounted pump is not available or space limits the ability to use one, the remote pumps are the answer. Meziere makes more remote pump configurations than any other manufacturer in the performance market. We make pumps that flow from 20 to 55+ gallons per minute. Our pumps can be configured to use almost any size line. All of our pumps are built for cooling systems and can operate properly in a harsh environment.
This water pump model features:
- Remote / universal inline design
- Suitable for street or drag strip use.
- 3000+ hour life expectancy.
- Show quality finish.
- All stainless steel hardware and 4130 mounting bracket included.
- Light weight. Complete standard unit weighs only 6.2 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal.
- Single inlet port threaded #20AN to accept our standard WN Style fittings.
- #12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose inlet fitings available.
- Dual exit ports threaded #16AN for a wide variety of fitting options.
- Dual / tandem outlets perfect for V6, V8 or V10 applications where there are two banks to feed.
TECHNICAL SPECIFICATION
- Finishing The System: This pump is supplied complete with mounting bracket hardware but without the inlet or outlet fittings. The fittings need to be ordered according to the size of the radiator hoses.
- Amperage draw: Under normal use the pump will draw 11-12 amps.
- Overall Height Dimension: The standard pump is 5.2" long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 6.2 lbs.
- 16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, Turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.
