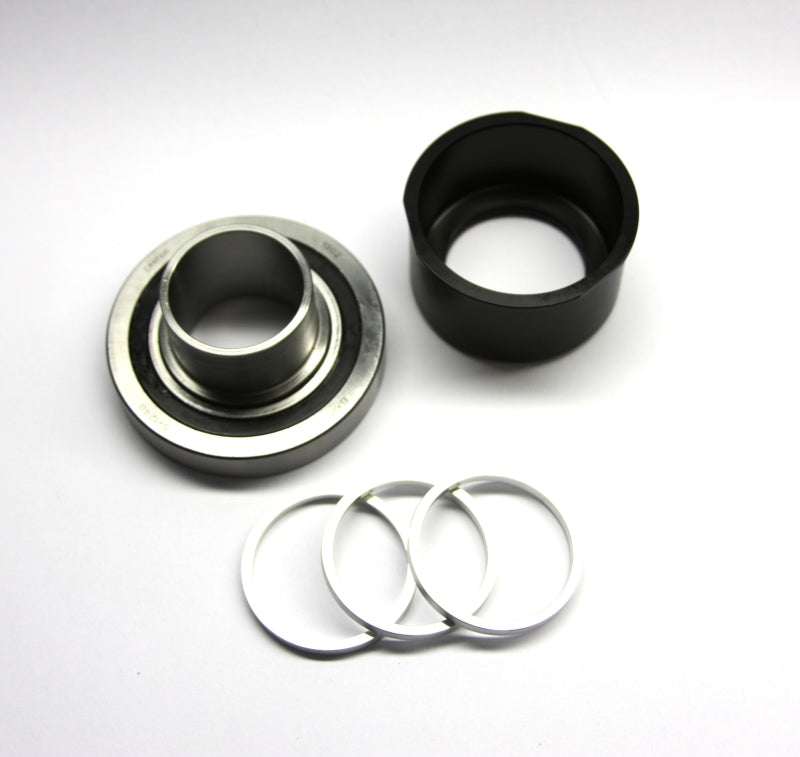

McLeod Replacement Adjustable Height Piston
McLeod offers an exclusive replacement adjustable height piston for the 1300 series bolt on style bearings. These pistons are adjustable to three different height locations to help maintain proper mechanical linkage geometry. McLeod Adjustable piston kits utilize bearings with angular contact, constant running bearings for long life and durability. McLeod Adjustable Height Pistons.
Measurements below are from the face of the throw-out bearing to the face of the transmission when the bearing is fully compressed.
0 Spacers -2.440" to 2.740"
1 Spacers - 2.590" to 2.890"
2 Spacers - 2.740" to 3.040"
3 Spacers - 2.890" to 3.190"
Anything greater than 3.180" requires adjustable piston 139079. Note" All machined parts have a tolerance of +/- .005"
Specifications
| "A" Dimension | 2.99" or Less |
|---|---|
| Spline | No |
| Bearing Retainer O.D. | No |
| Stock Collar I.D. | No |
| Transmission | No |
| Master Cylinder Included | No |
This product is one of the leader in the performance automotive aftermarket clutch and driveline industry. McLeod is a leading global supplier of clutch kits, clutch components, hydraulic bearings, flywheels, bellhousings and other performance driveline products. McLeod Racing is proud to have been providing cutting edge products, and industry leading service to the world's foremost performance automotive, light truck and racing enthusiasts.
