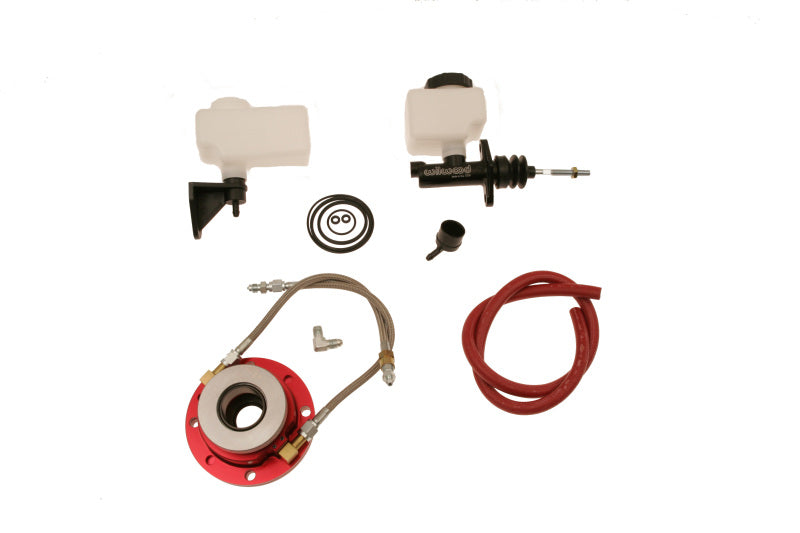

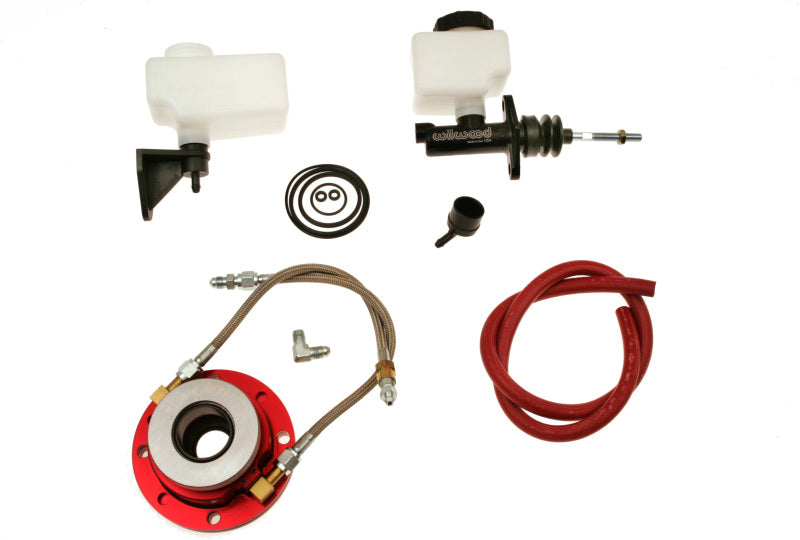

McLeod Hydraulic T.O. Bearing W/Mc 1-1/16X10 Ford Top Loader
1300 Series Hydraulic Bearing PNS

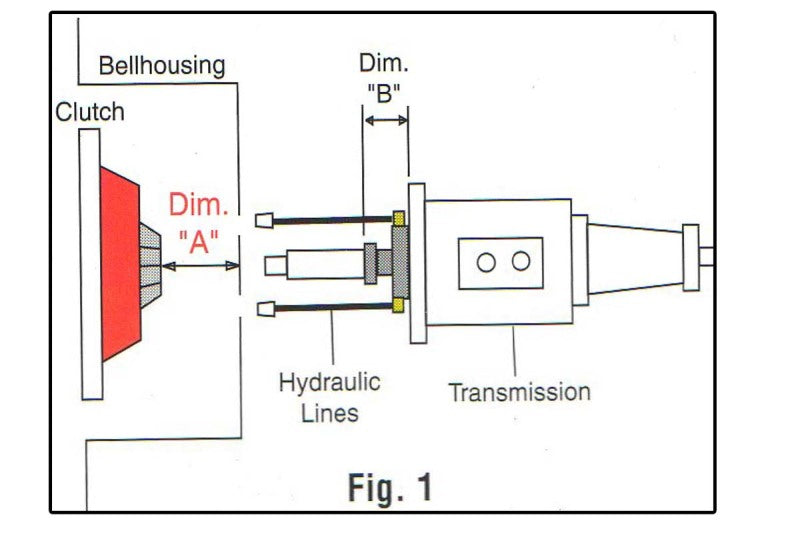

The 1300 series bolt on bearing is intended to replace your OEM bearing retainer when your "A" measurement is less than 3". These bearings are made of the finest hard anodized billet aluminum, along with quality elbow swivel fittings and high pressure stainless steel braided lines. These high quality components make the Mcleod bolt on hydraulic throw out bearing extremely durable, and the best in the market today! These assemblies may be used to eliminate the need to fabricate complex clutch linkage when swapping transmissions.
Specification:
| "A" Dimension | 2.99" or Less |
|---|---|
| Spline | 1 1/16" x 10 |
| Bearing Retainer O.D. | NA |
| Stock Collar I.D. | 4.850" |
| Transmission | No |
| Master Cylinder Included | Yes |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1972 | Dodge | B100 Van | Base, Sportsman |
| 1970 - 1974 | Ford | Maverick | Base |
| 1964 - 1973 | Ford | Mustang | Base |
| 1969 - 1971 | Ford | Mustang | Boss 302 |
| 1971 - 1972 | Ford | Mustang | Boss 351 |
| 1969 - 1970 | Ford | Mustang | Boss 429 |
| 1970 - 1973 | Ford | Mustang | Mach 1, Grande |
| 1965 - 1970 | Ford | Mustang | Shelby GT-350 |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1967 - 1970 | Ford | Mustang | Shelby GT-500 |
| 1968 | Ford | Mustang | Shelby GT-500KR |
McLeod Hydraulic T.O. Bearing W/Mc 1-1/16X10 Ford Top Loader
Sale price$528.44 USD
