Edelbrock Max-Fire Distributor AMC/Jeep V8 290-401 Ready To Run

SKU: 1E6DW | MPN:  22765
In stock
Sale price$459.95 USD

Max Fire Distributor

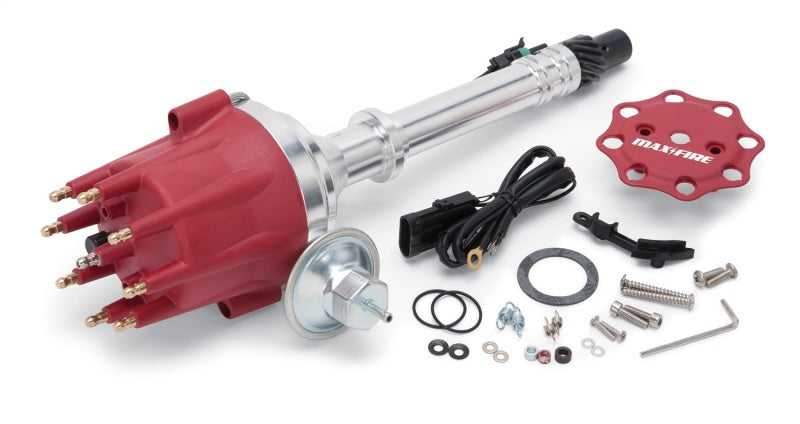

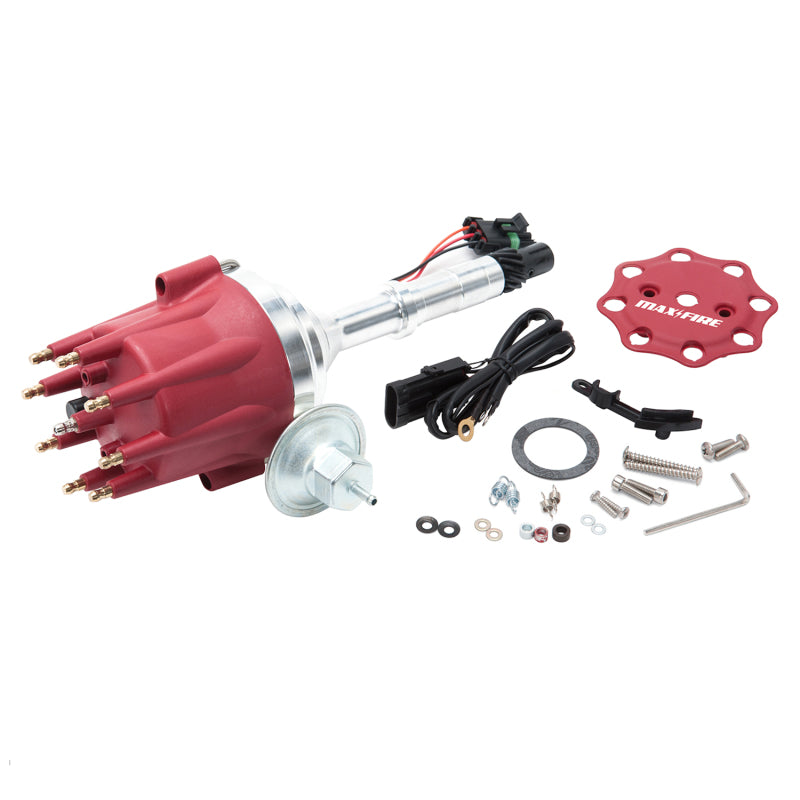

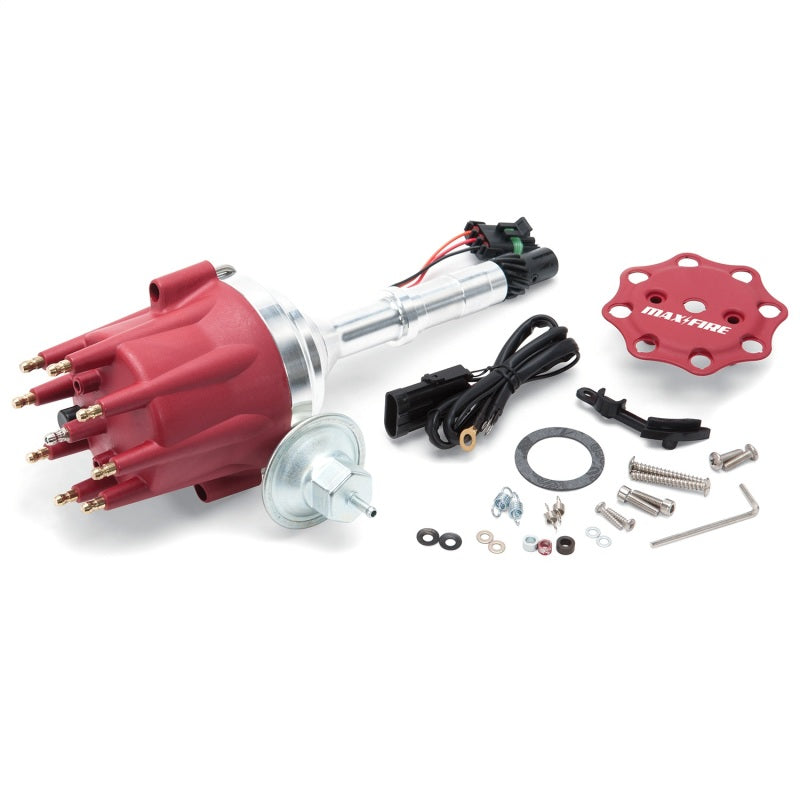

These Max-Fire distributors are ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit.

Features & Benefits
  • CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block
  • Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance
  • Features brass contacts and a stainless steel rotor spring for maximum conductivity
  • Hardened iron drive gear ensures long service life
  • Fully adjustable mechanical and vacuum advance for increased mileage potential


Vehicle Fitments:

Year Make Model Submodel
1962 American Motors Ambassador 400
1963 American Motors Ambassador 880
1963 - 1967 American Motors Ambassador 990
1960 - 1970 American Motors Ambassador Base
1971 - 1974 American Motors Ambassador Brougham
1958 - 1962 American Motors Ambassador Custom
1961 American Motors Ambassador Custom 400
1959 American Motors Ambassador Deluxe
1966 - 1971 American Motors Ambassador DPL
1968 - 1972 American Motors Ambassador SST
1958 - 1961 American Motors Ambassador Super
1966 - 1968 American Motors American 440, Base
1967 - 1968 American Motors American Rogue
1968 - 1979 American Motors AMX Base
1965 American Motors Classic 660
1965 - 1966 American Motors Classic 770, Base
1978 - 1979 American Motors Concord Base
1979 American Motors Concord Limited, DL
1972 - 1976 American Motors Gremlin Base
1976 American Motors Gremlin Custom
1977 American Motors Hornet AMX
1970 - 1977 American Motors Hornet Base
1971 American Motors Hornet SC/360
1971 - 1977 American Motors Hornet Sportabout
1970 - 1972 American Motors Hornet SST
1971 - 1974 American Motors Javelin AMX
1968 - 1974 American Motors Javelin Base
1968 - 1972 American Motors Javelin SST
1970 American Motors Javelin SST Mark Donohue, SST Trans Am
1965 - 1967 American Motors Marlin Base
1971 - 1978 American Motors Matador Base
1974 American Motors Matador Brougham, X
1978 American Motors Pacer Base
1979 American Motors Pacer DL, Limited
1969 American Motors Rambler Hurst SC/Rambler, Rogue, 440, Base
1968 American Motors Rebel 550
1967 - 1968 American Motors Rebel 770
1966 - 1970 American Motors Rebel Base
1967 - 1970 American Motors Rebel SST
1970 American Motors Rebel The Machine
1966 American Motors Rogue Base
1979 American Motors Spirit Base
1974 Bricklin SV-1 Base
1974 - 1983 Jeep Cherokee Base
1981 - 1983 Jeep Cherokee Chief
1981 Jeep Cherokee Laredo
1983 Jeep Cherokee Pioneer
1974 - 1980 Jeep Cherokee S
1978 - 1980 Jeep Cherokee Wide Track
1975 - 1982 Jeep Cherokee Wide Track Chief
1979 - 1980 Jeep Cherokee Wide Track Golden Eagle
1980 - 1983 Jeep Cherokee Wide Track Laredo
1980 Jeep Cherokee Wide Track Limited
1971 - 1981 Jeep CJ5 Base
1977 - 1980 Jeep CJ5 Golden Eagle
1980 - 1981 Jeep CJ5 Laredo
1975 - 1981 Jeep CJ5 Renegade
1971 - 1975 Jeep CJ6 Base
1976 - 1981 Jeep CJ7 Base, Renegade
1977 - 1979 Jeep CJ7 Golden Eagle
1980 Jeep CJ7 Golden Hawk
1980 - 1981 Jeep CJ7 Laredo
1972 - 1973 Jeep Commando Base
1965 - 1969 Jeep Gladiator Base
1984 - 1991 Jeep Grand Wagoneer Base
1984 - 1985 Jeep Grand Wagoneer Limited
1965 - 1973 Jeep J-100 Base
1965 Jeep J-200 Base
1965 Jeep J-210 Base
1965 Jeep J-220 Base
1965 Jeep J-230 Base
1965 - 1973 Jeep J-2500 Base
1965 - 1973 Jeep J-2600 Base
1965 - 1970 Jeep J-2700 Base
1965 - 1968 Jeep J-2800 Base
1965 Jeep J-300 Base
1965 Jeep J-310 Base
1965 Jeep J-320 Base
1965 Jeep J-330 Base
1965 - 1970 Jeep J-3500 Base
1965 - 1970 Jeep J-3600 Base
1965 - 1970 Jeep J-3700 Base
1965 - 1971 Jeep J-3800 Base
1970 - 1973 Jeep J-4500 Base
1970 - 1973 Jeep J-4600 Base
1970 - 1973 Jeep J-4700 Base
1970 - 1973 Jeep J-4800 Base
1974 - 1988 Jeep J10 Base
1982 - 1984 Jeep J10 Laredo
1974 - 1988 Jeep J20 Base
1972 - 1973 Jeep Jeepster Base, Commando
1983 Jeep Wagoneer Alpina
1965 - 1983 Jeep Wagoneer Base
1982 - 1983 Jeep Wagoneer Brougham
1973 - 1976 Jeep Wagoneer Custom
1979 - 1983 Jeep Wagoneer Limited
1957 Nash Ambassador Custom Base
1957 Nash Rambler Deluxe, Custom, Super, Rebel
