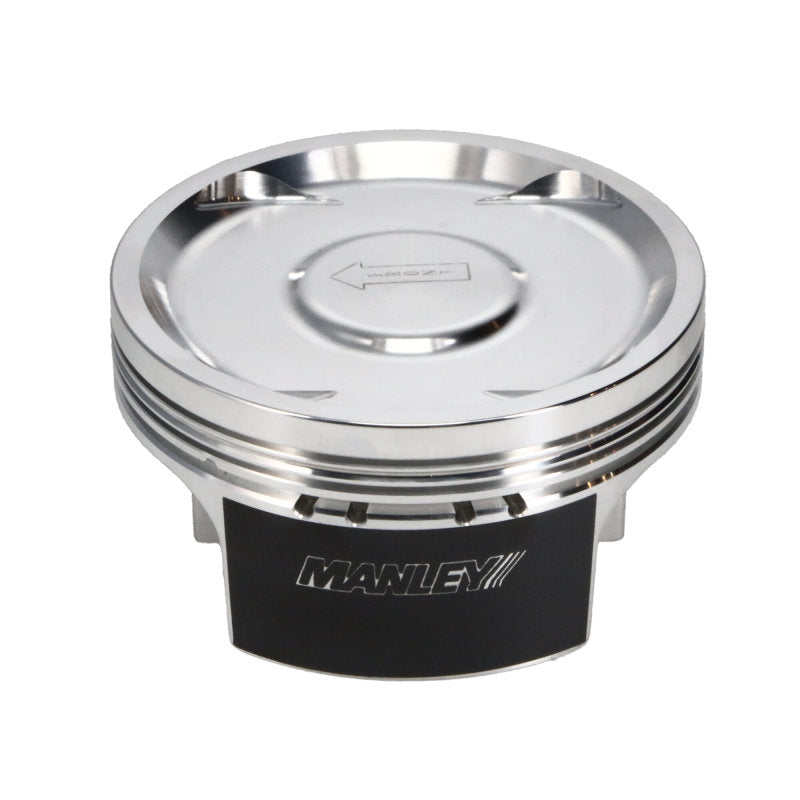

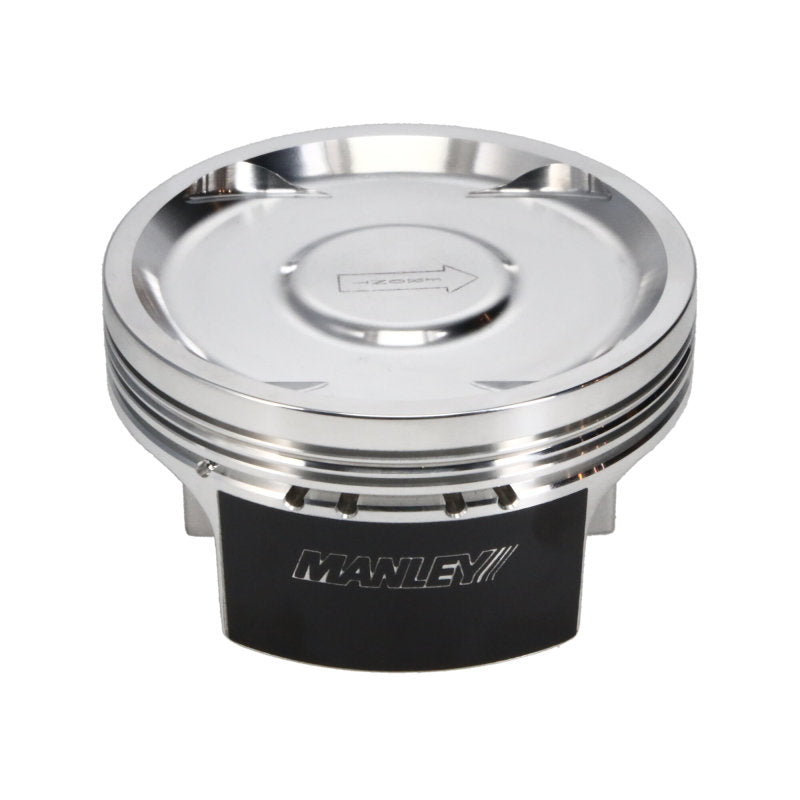

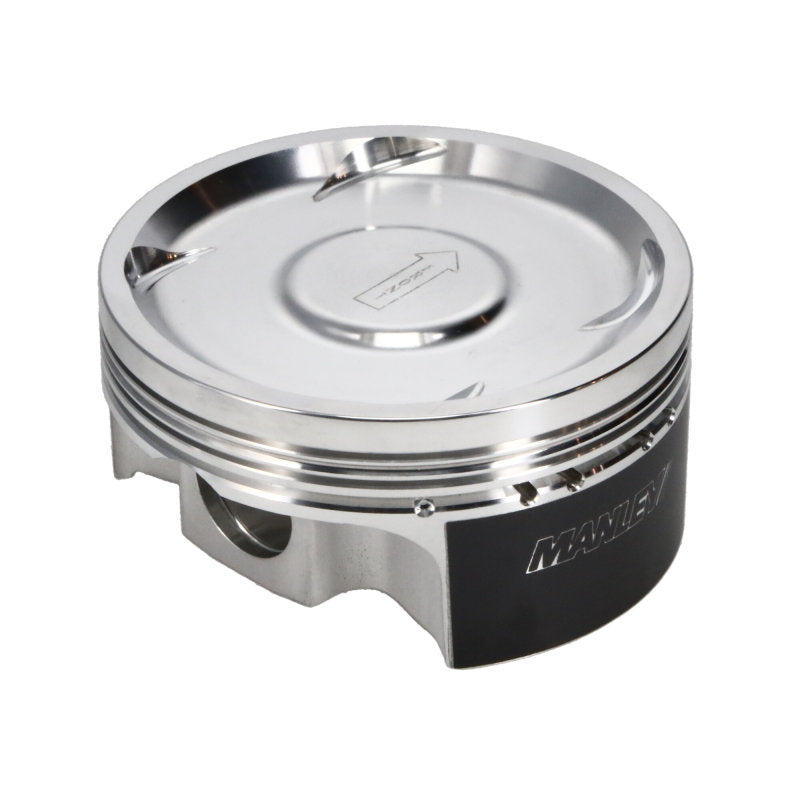

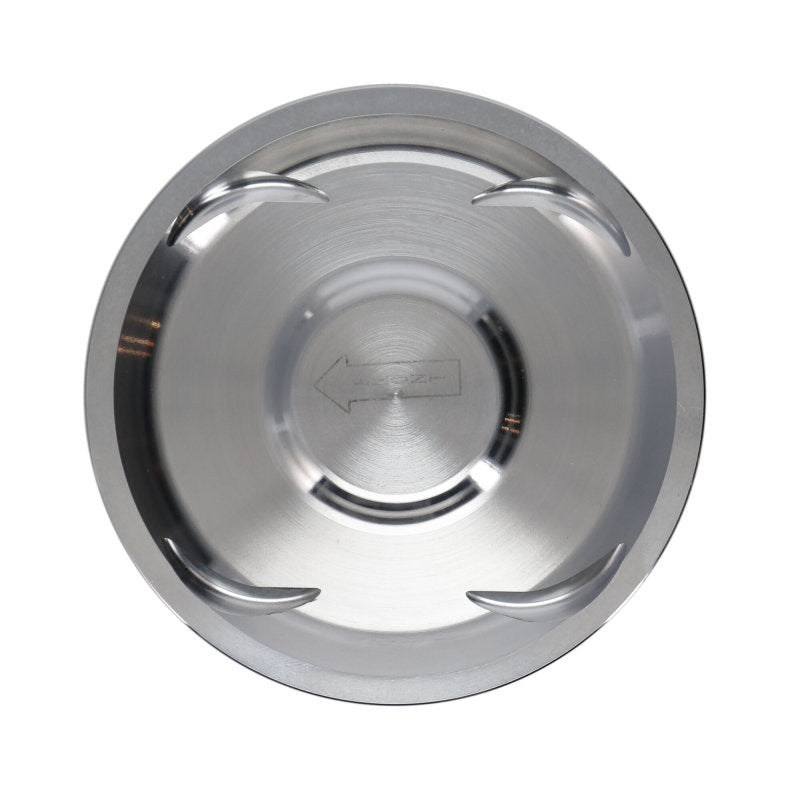

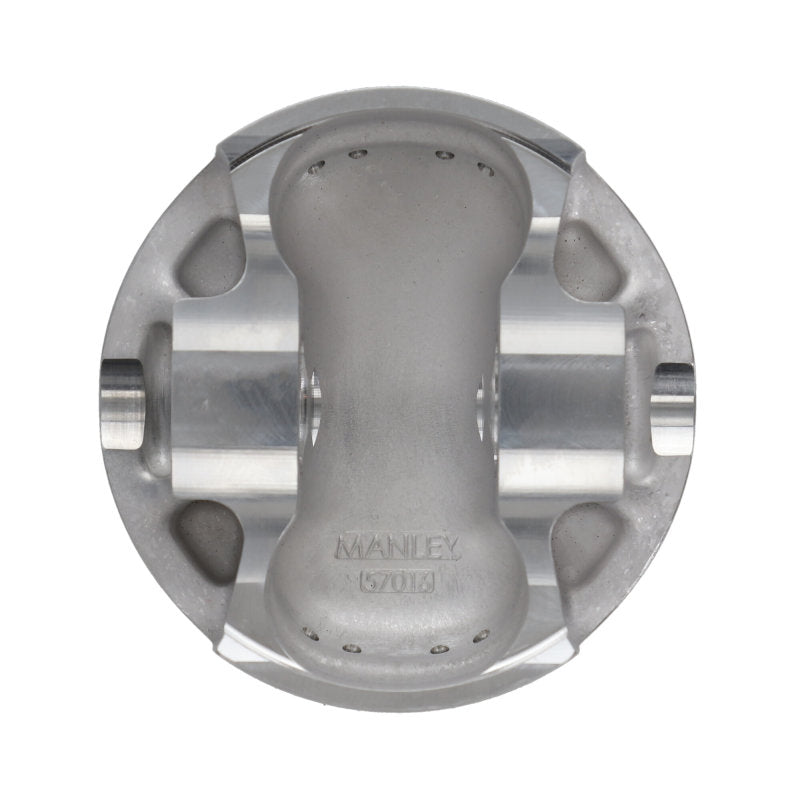

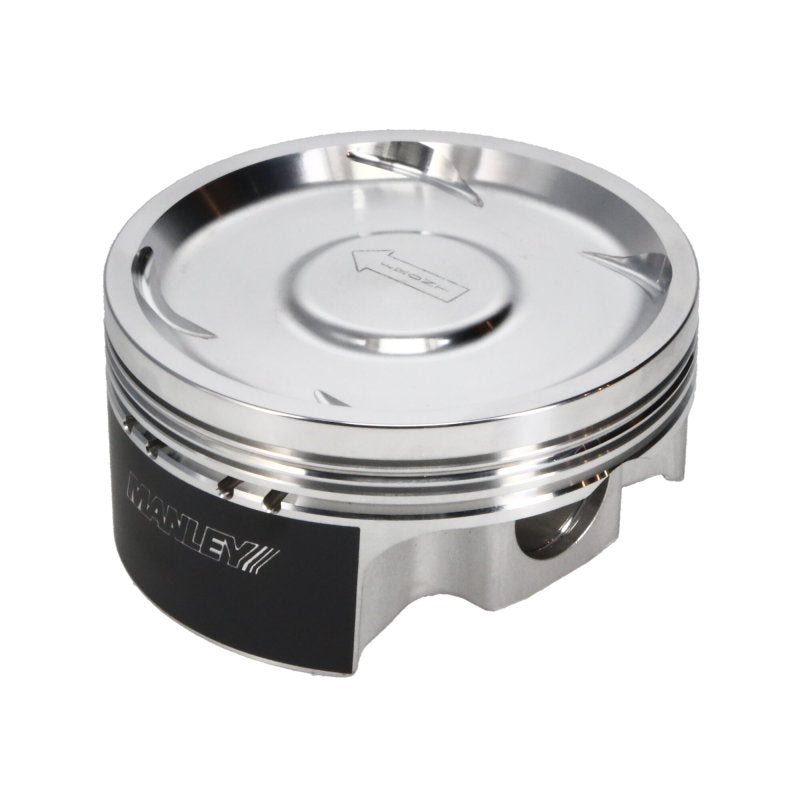

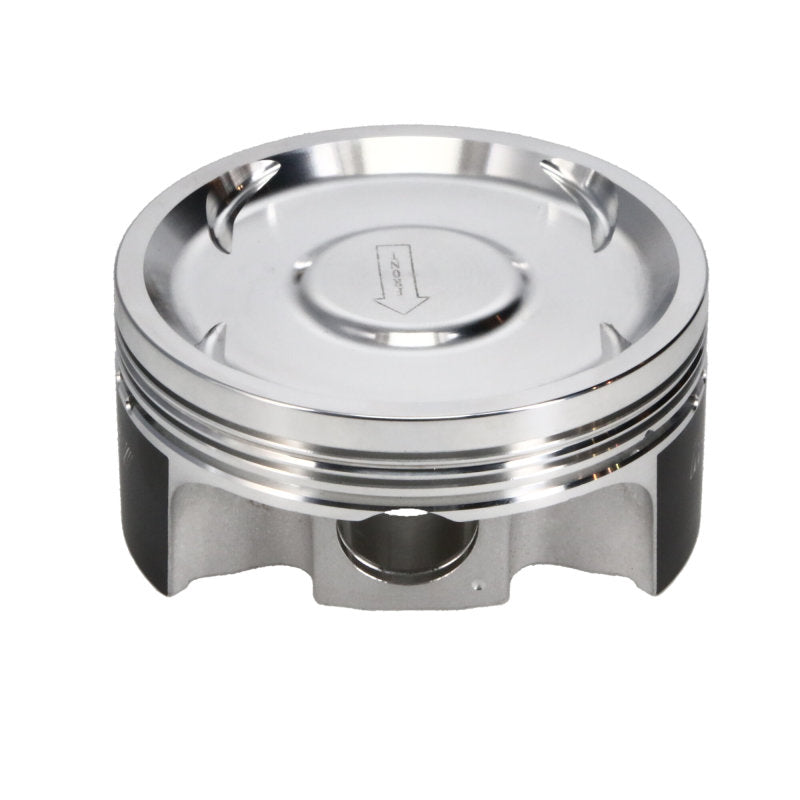

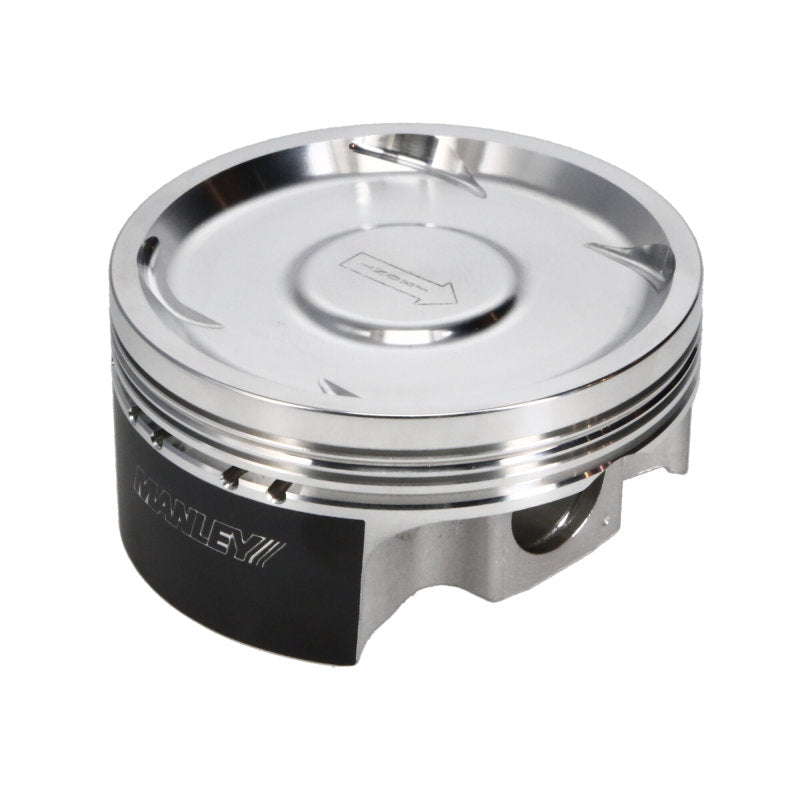

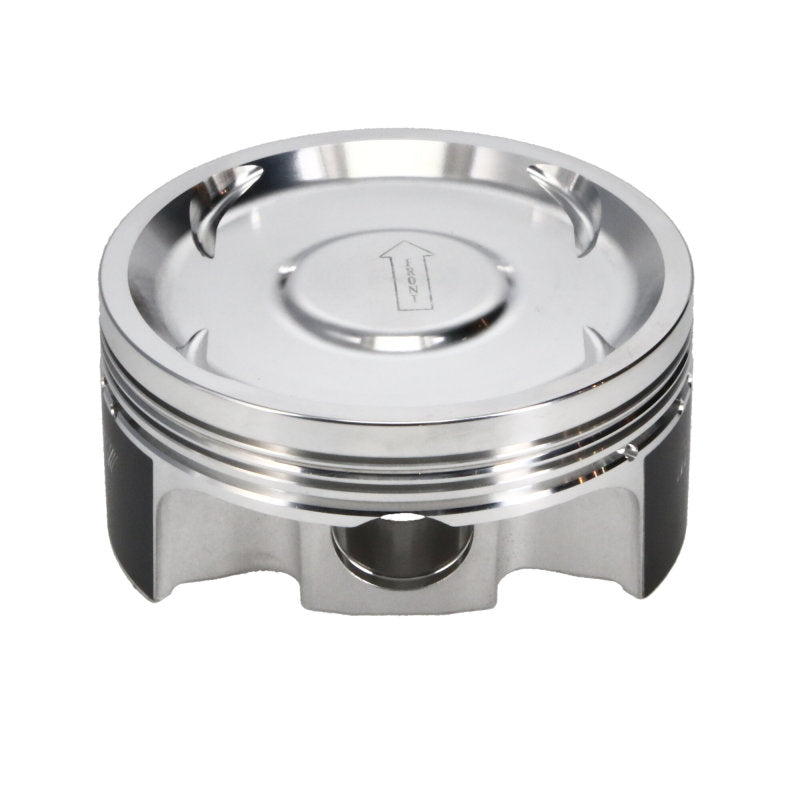

Manley Performance Piston - Subaru Wrx 22cc Dish T/T

EJ25 - PLATINUM SERIES TURBO TUFF PISTONS

The best aftermarket Subaru piston company just got even better with our new Turbo Tuff lineup targeted specifically for EJ25 engines. By incorporating proven design enhancements from our "Formula-Won" piston forging, we've created the ultimate Subi piston to withstand the rigors of the highest boosted and stressed applications yet still run "quietly" and trouble-free for the daily driver.

Forging

2618 alloy for maximum high temperature strength and fatigue resistance.

Attributes

• "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
• Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
• All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
• Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
• Value - added features such as a pressure balance groove included in all series.
• Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.

Manley Sport Compact Platinum series pistons come complete with pistons, rings, pins, and locks

Applications: Subaru WRX STi 2004-Up

Specifications

• Bore Size: 99.5 Grade A
• Over Size: STD
• Rod Length: 5.137"
• Comp.Distance: 1.209"
• Dome Volume (cc): -22
• Cylinder Head (cc): 51
• Comp. Ratio: 8.5
• Piston Type: Dish
• Piston Wt / Gms: 405
