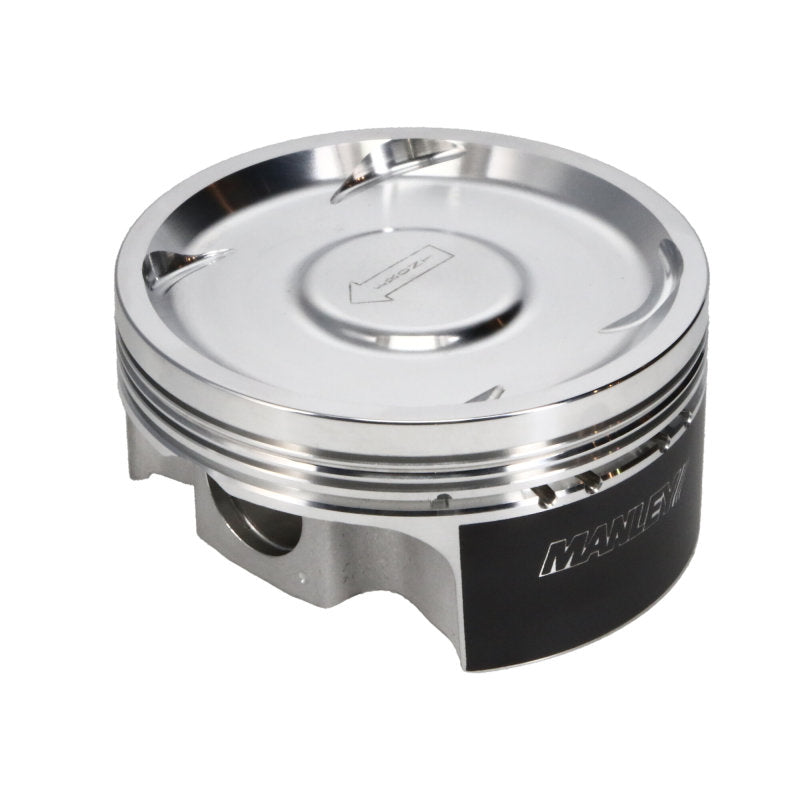

• Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 Photo - Primary

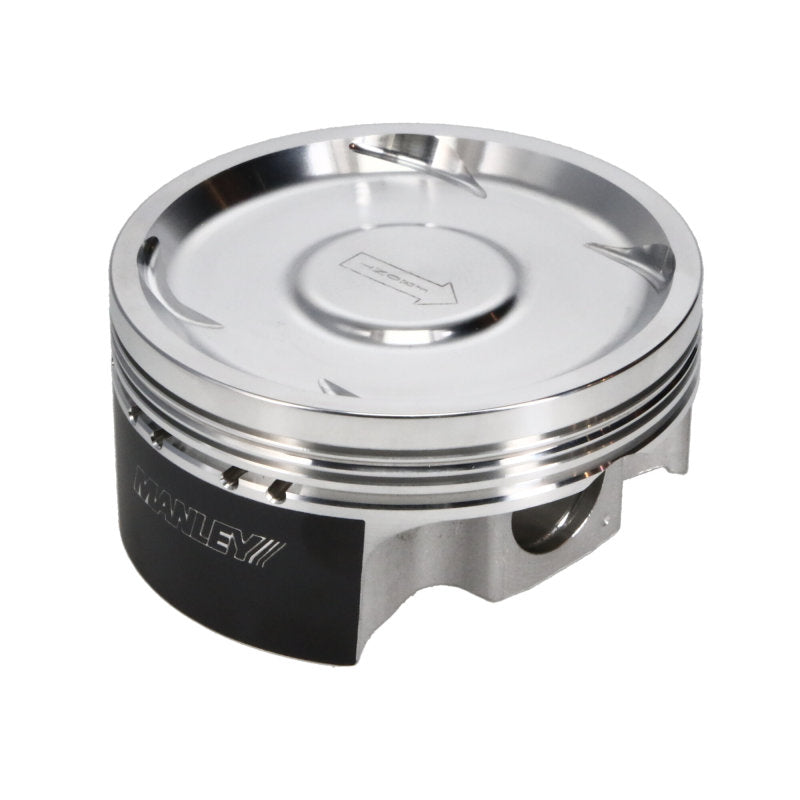

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 Photo - out of package

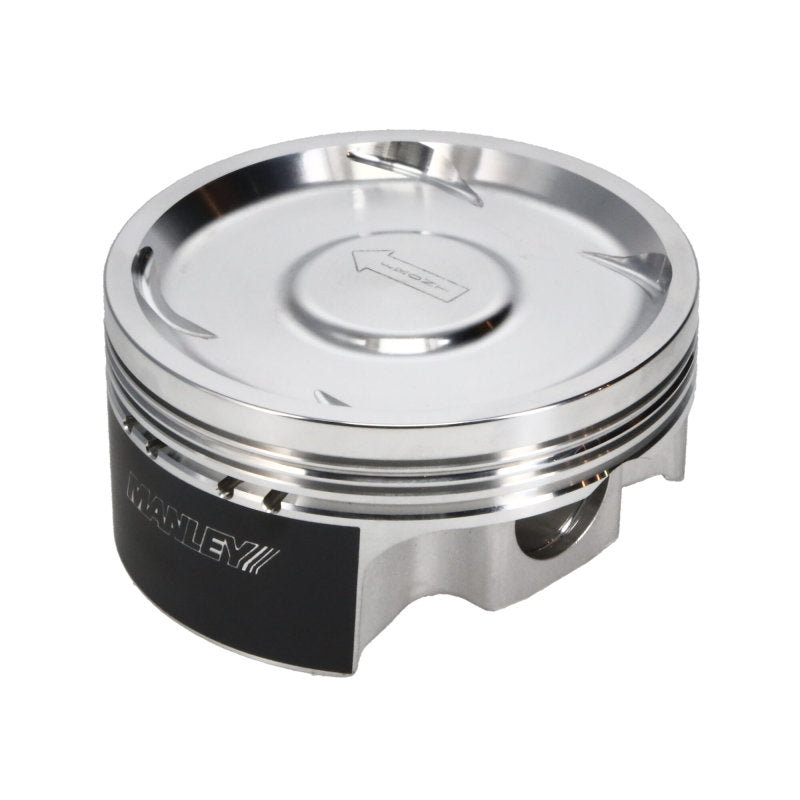

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 1

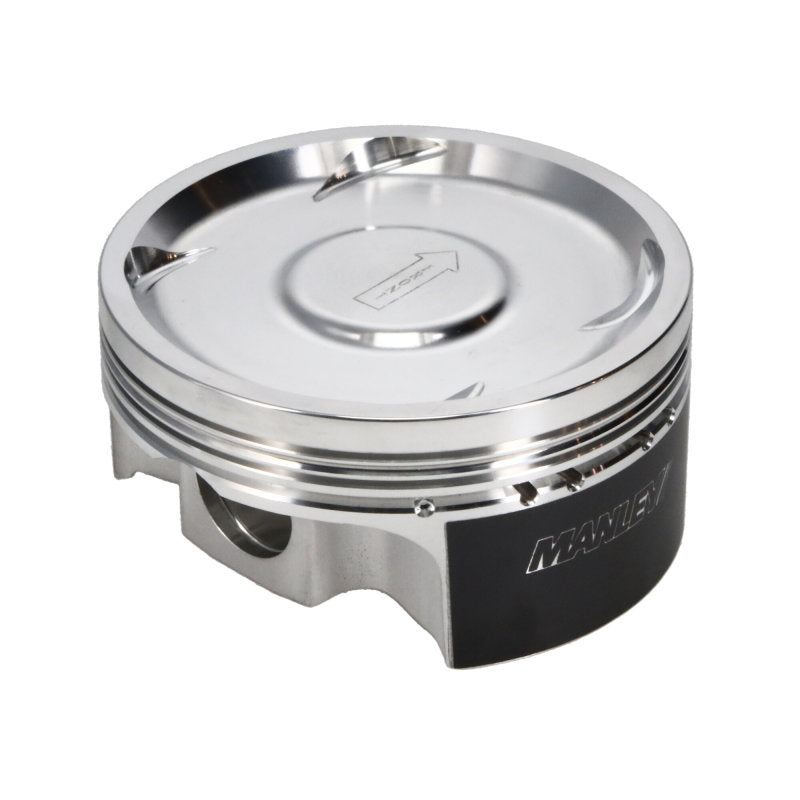

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 2

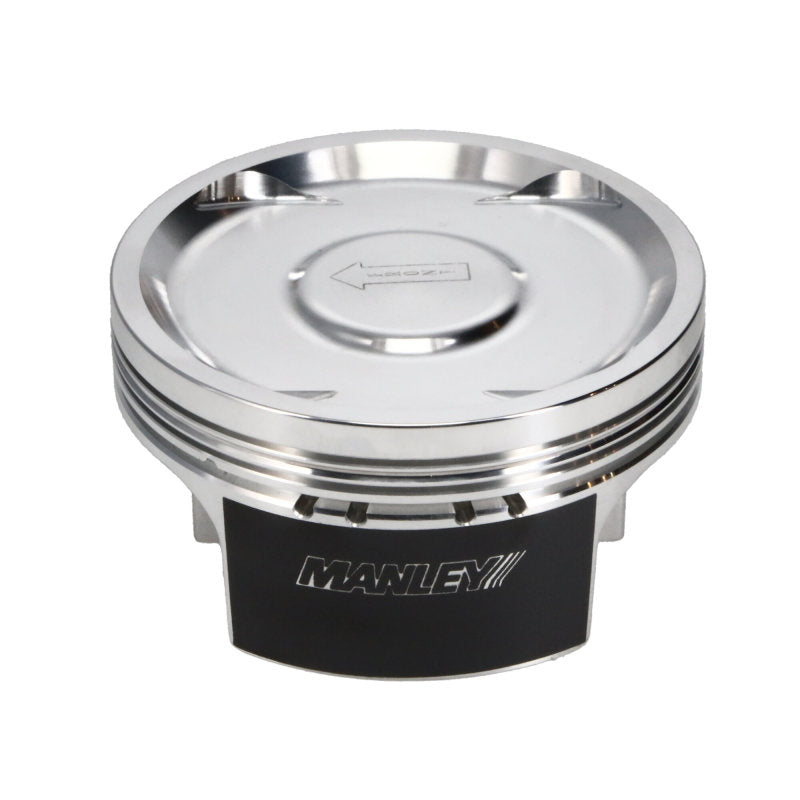

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 3

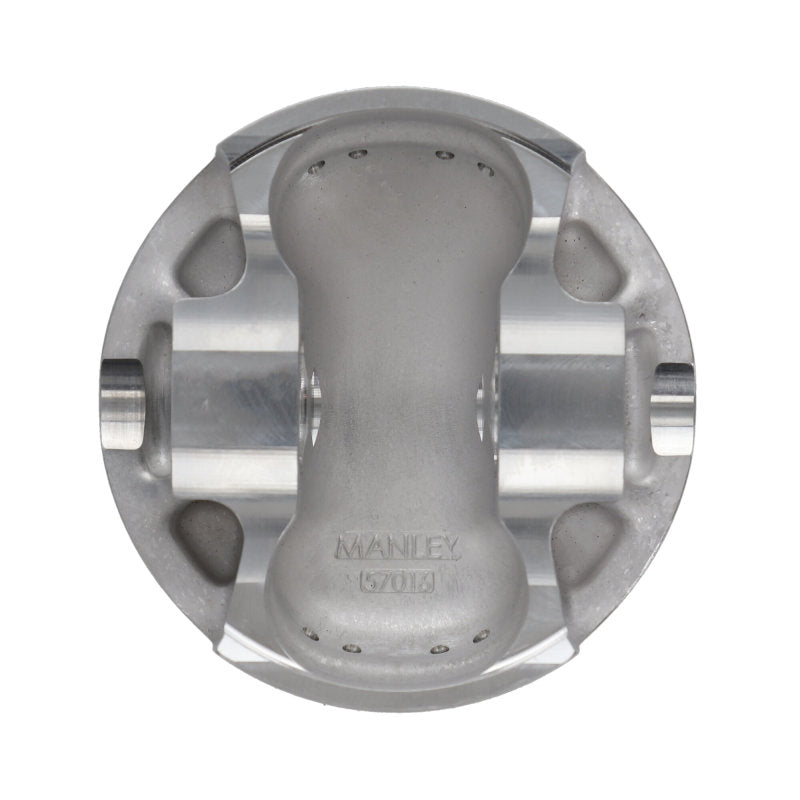

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 4

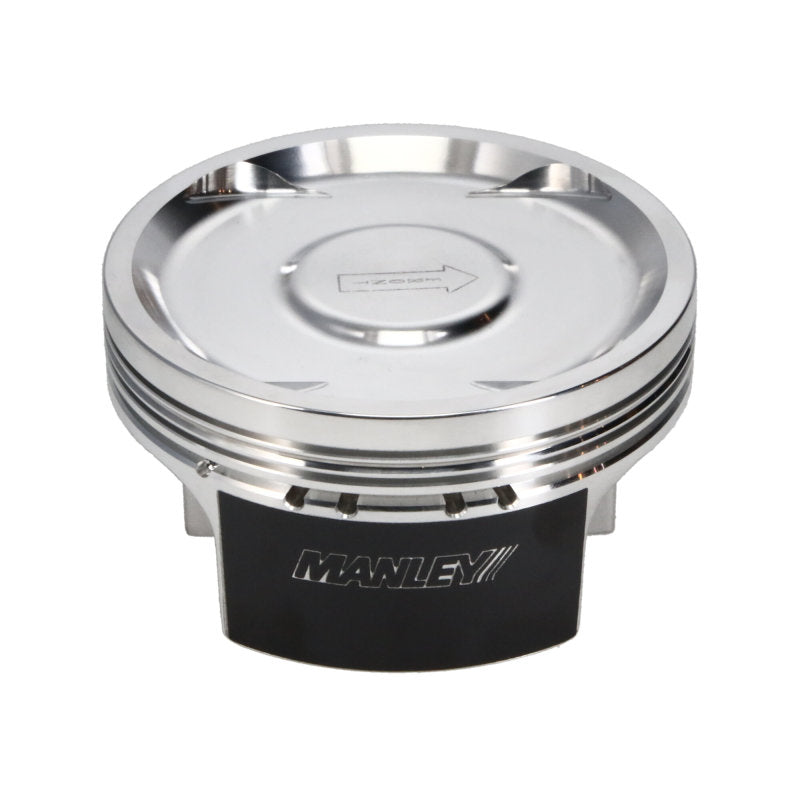

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 5

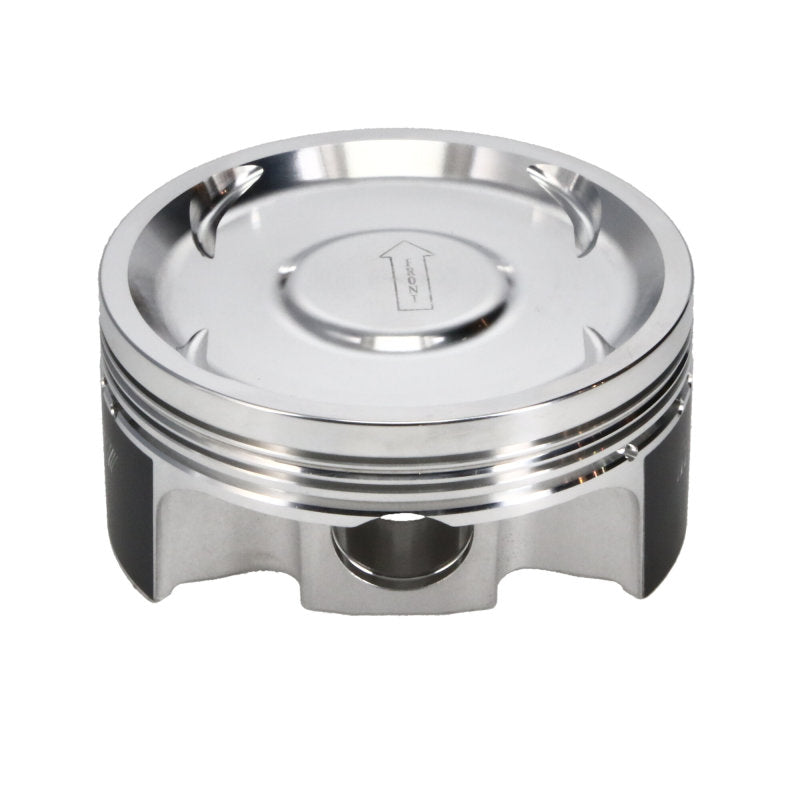

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 6

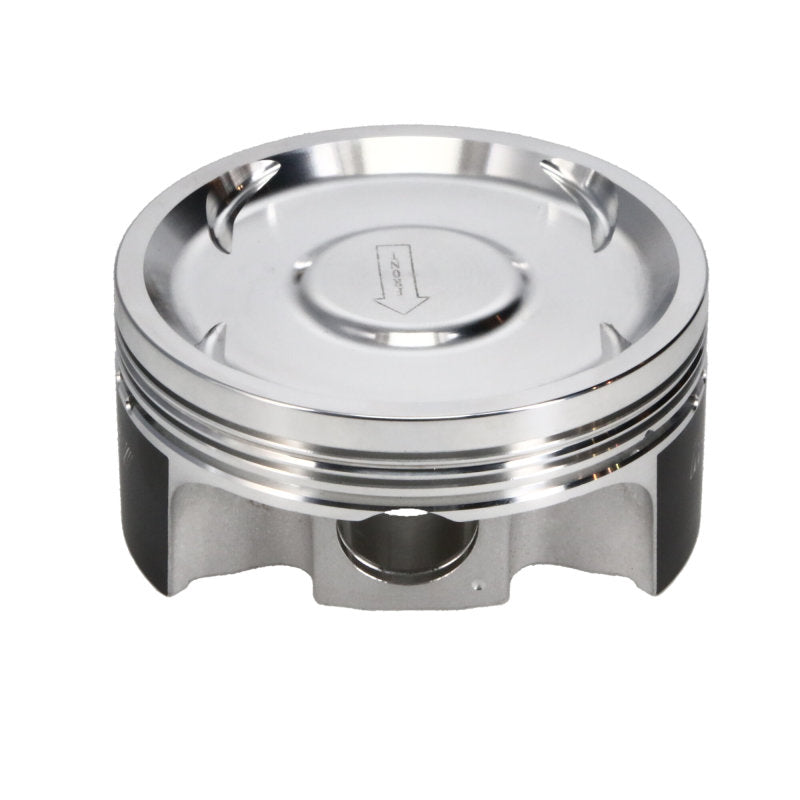

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 7

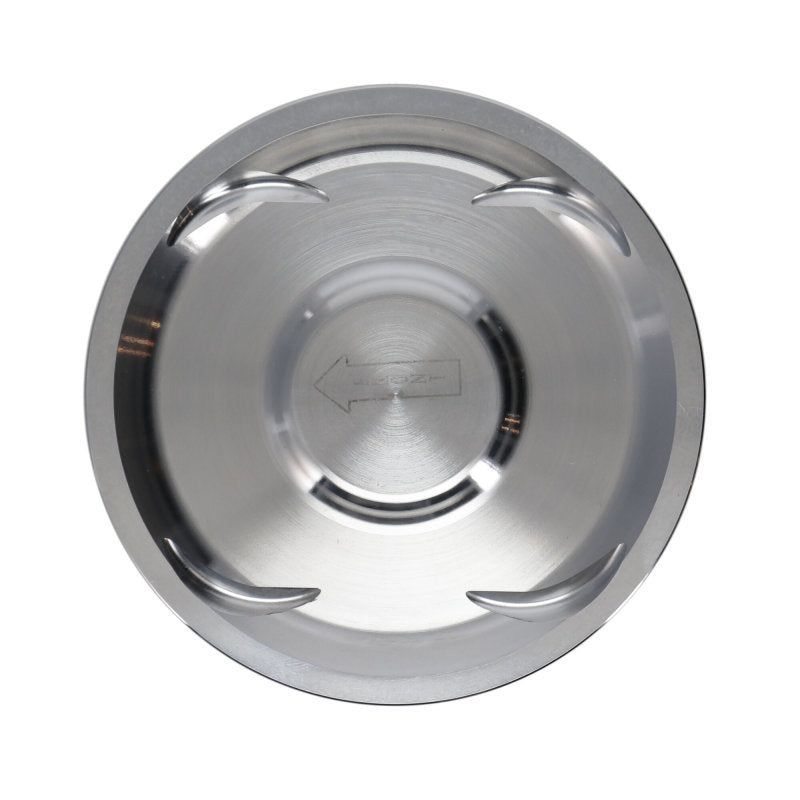

  • Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set 632200C-4 User 8
1 10
Manley

Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set

Manley Performance 04+ Subaru WRX/STI EH257 99.50mm Bore STD Size 8.5:1 Dish Piston Set

sku: 0HYWK | mpn: 632200C-4
$956.05
$956.05 $956.05
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

The best aftermarket Subaru piston company just got even better with our new Turbo Tuff lineup targeted specifically for EJ25 engines. By incorporating proven design enhancements from our "Formula-Won" piston forging, we've created the ultimate Subi piston to withstand the rigors of the highest boosted and stressed applications yet still run "quietly" and trouble-free for the daily driver. Like all Manley Subaru pistons, these are made from 2618 alloy, utilize an offset wrist pin design, are skirt coated and include our standard 2.500" x .180" wall premium chrome moly wrist pin (P/N 42346). 9310 alloy .210" wall pin upgrades are available. Simply order the EXTREME DUTY part number in the column below. These come equipped with the 9310 pins (P/N 42546). Premium steel top rings with Napier style second rings and higher tension oil rings for ultimate oil control are included with each set along with round wire locks. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79/83mm Strokes) and 1.100" (75mm Stroke) from the bottom of the oil ring groove.

Specifications

  • Bore size: 99.5mm
  • Over Size: STD
  • Rod length: 5.137"
  • Comp distance: 1.209"
  • Dome volume: -22cc
  • Cylinder head: 51cc
  • Comp ratio: 8.5
  • Dish Piston type
  • Piston wt/gms: 405g
  • Include ring set: 46995DT-4
