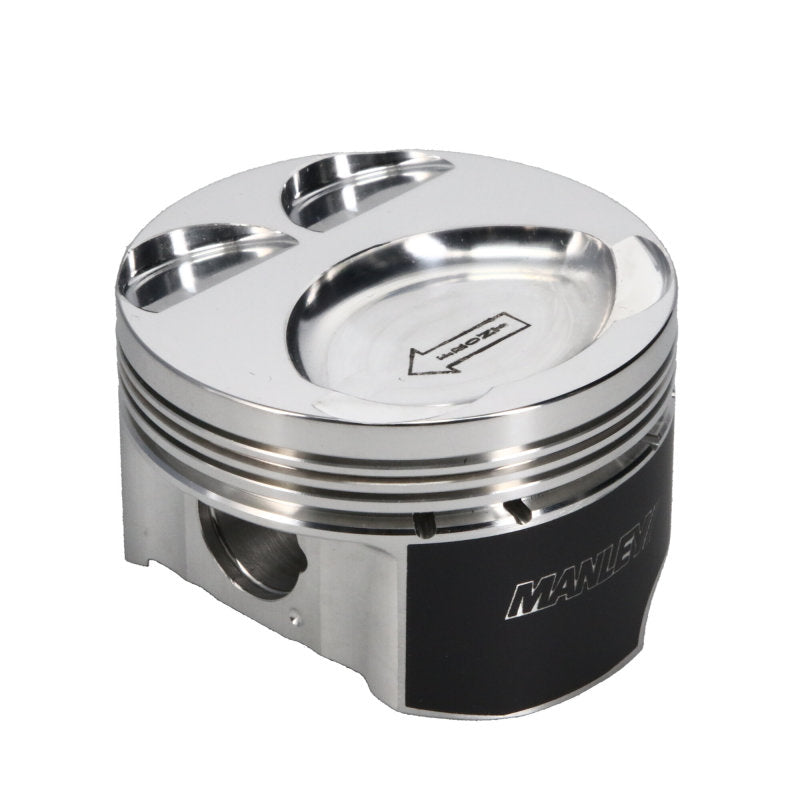

• Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 Photo - Primary

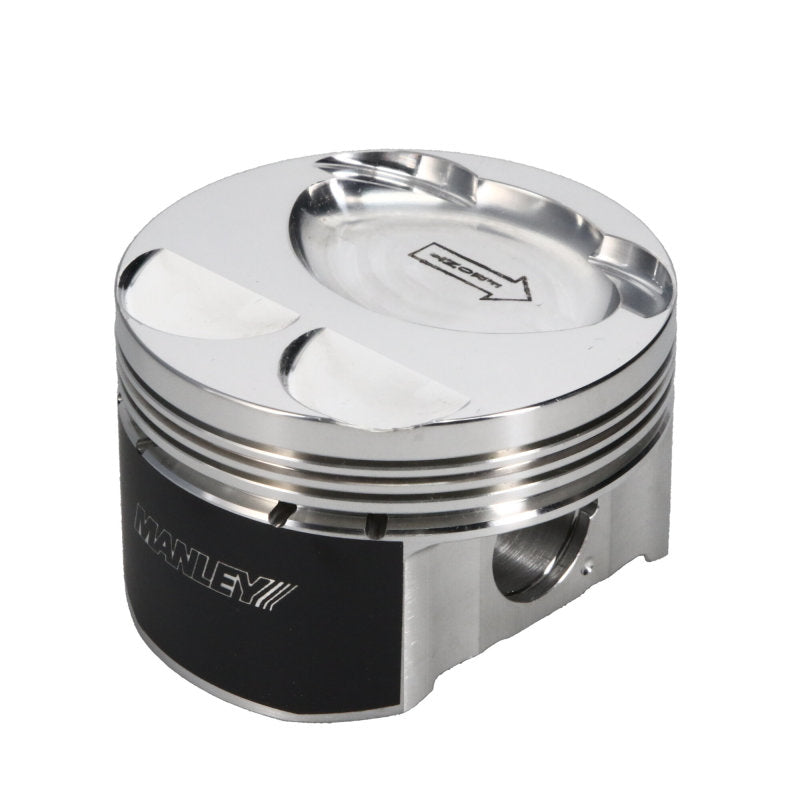

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 Photo - out of package

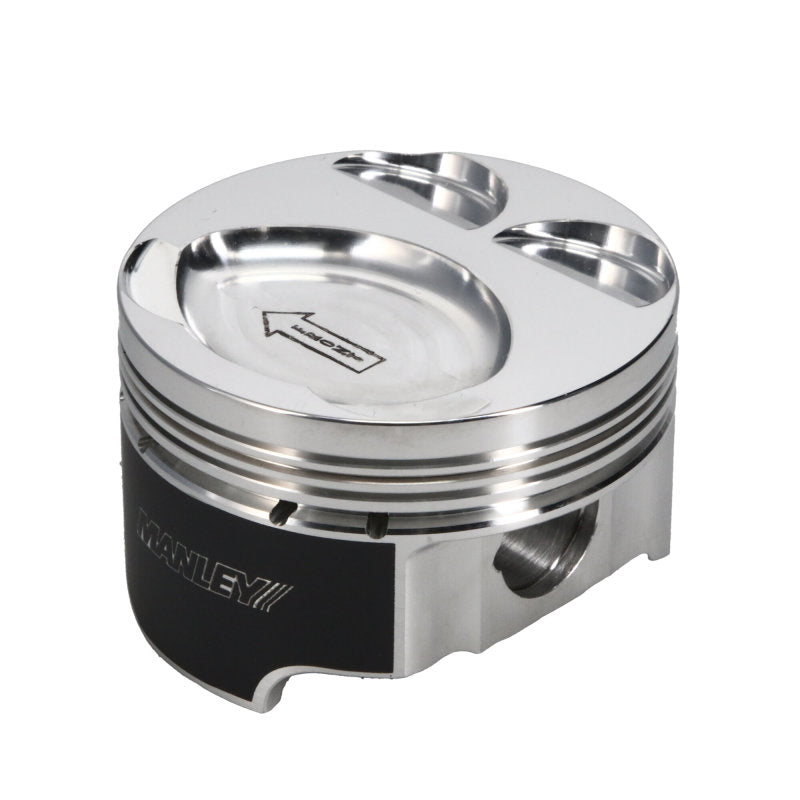

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 1

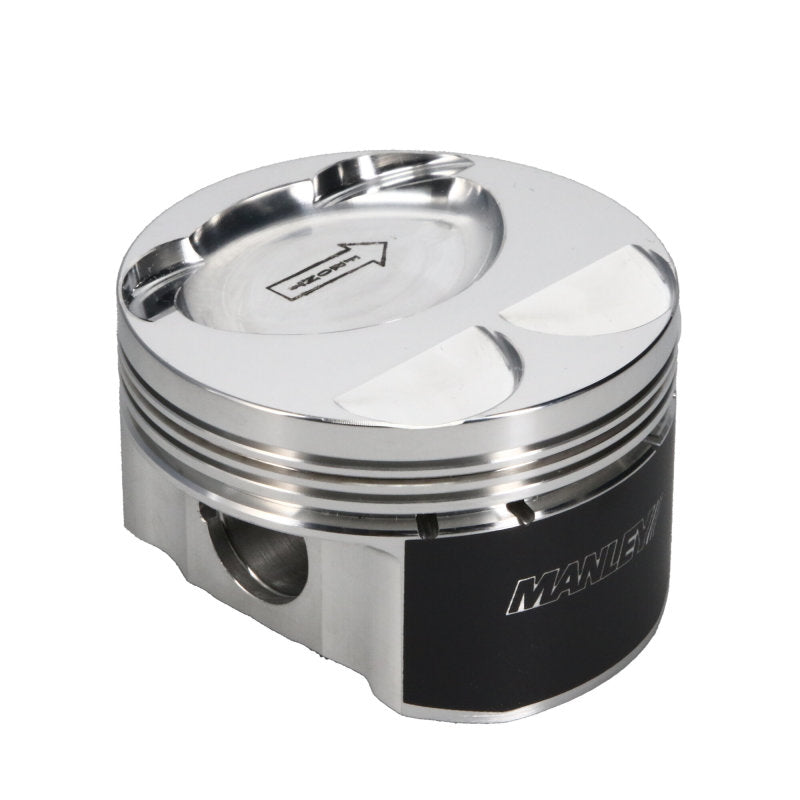

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 2

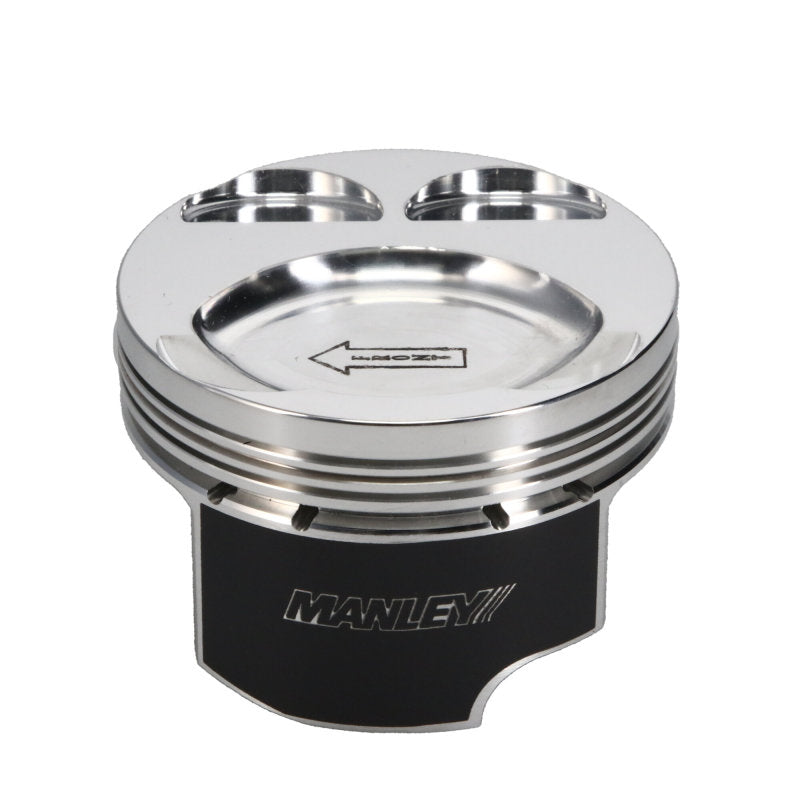

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 3

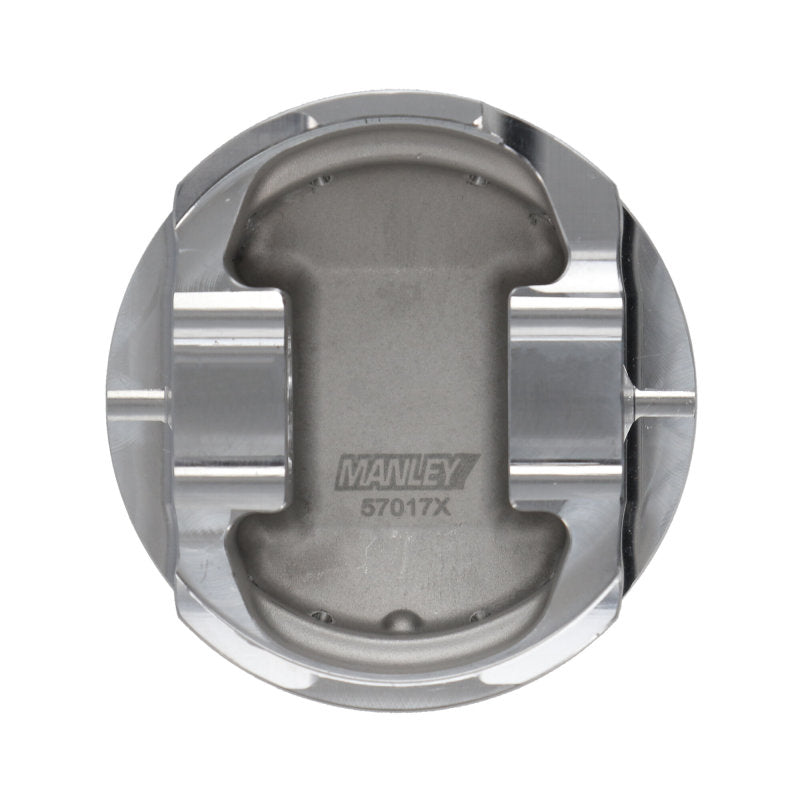

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 4

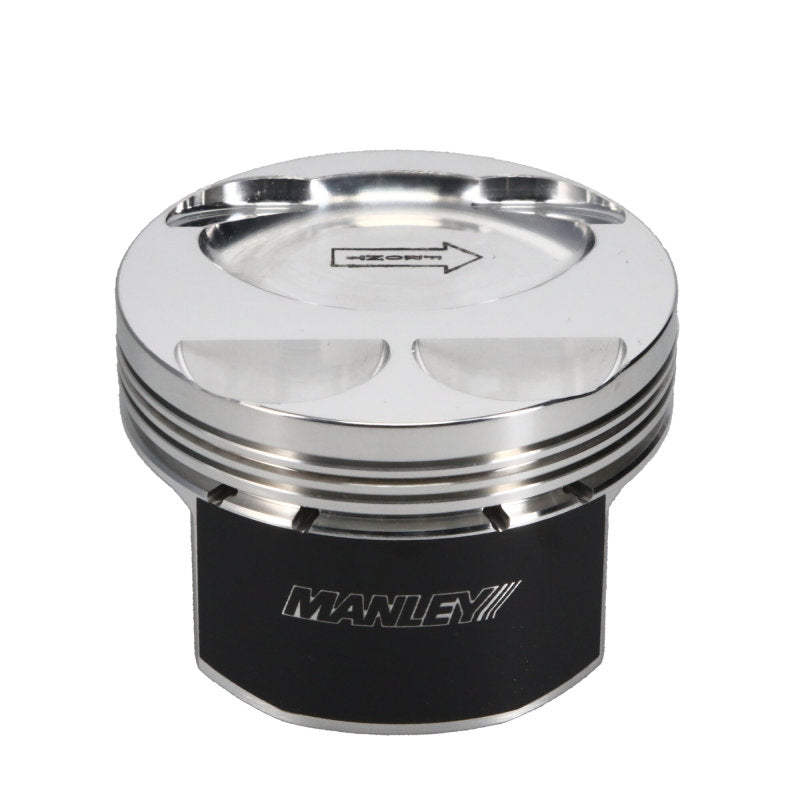

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 5

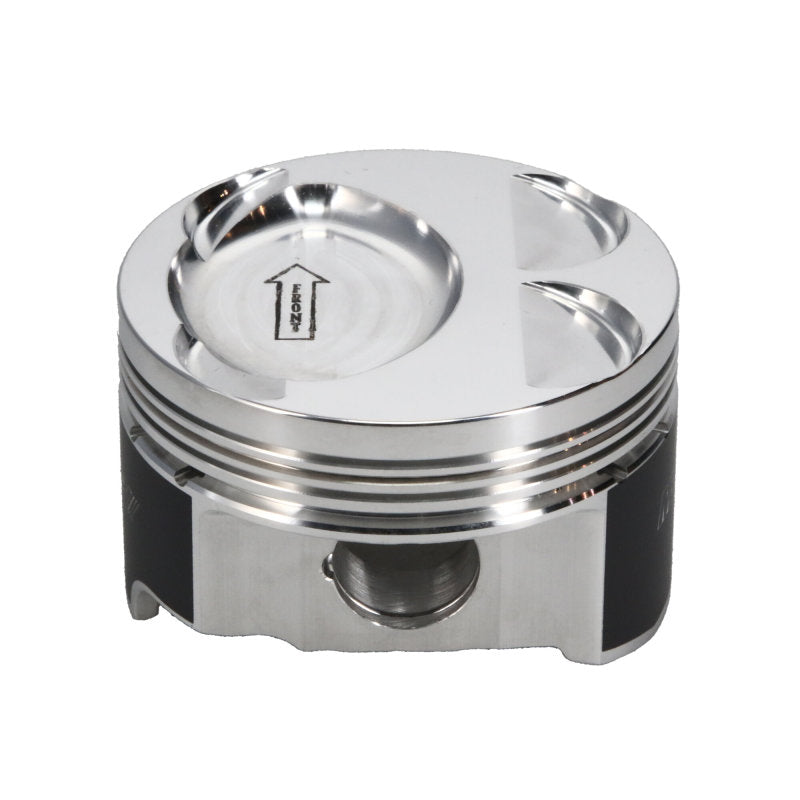

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 6

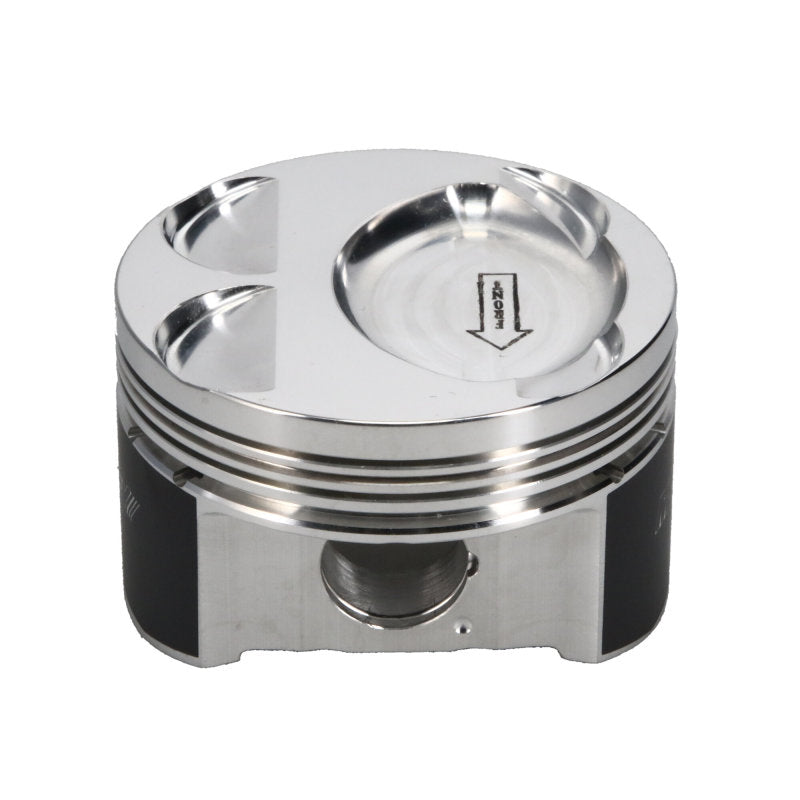

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 7

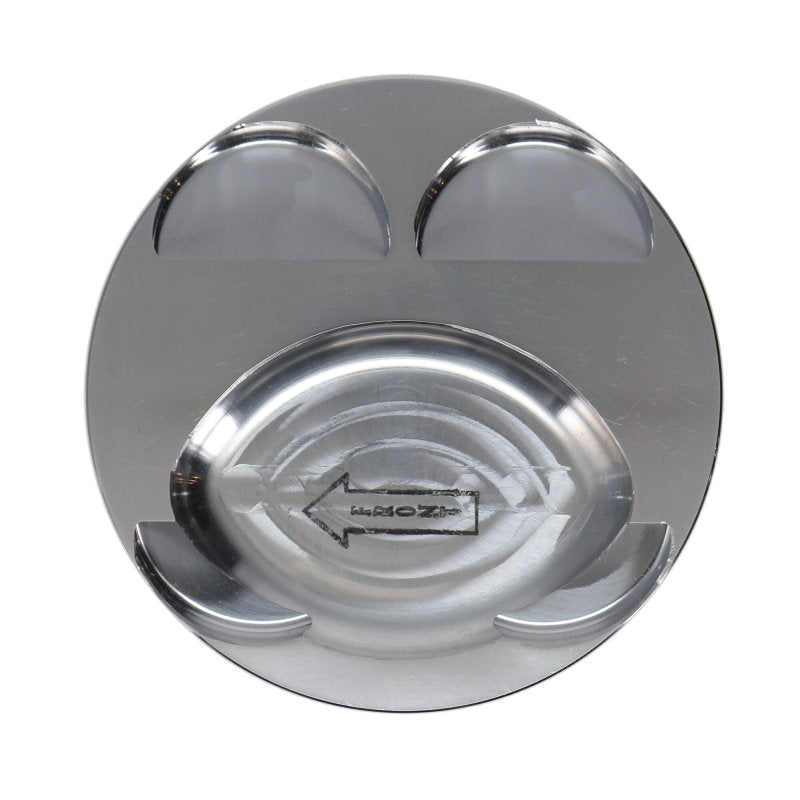

  • Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis 630005CE-4 User 8
1 10
Manley

Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis

Manley Performance Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pis

sku: 0UGF0 | mpn: 630005CE-4
$1,018.74
$1,018.74 $1,018.74
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Features

  • Made from 2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups
  • Moly Coated Skirts Piston
  • .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42248
  • 9310 alloy .210" wall pin upgrade are available (Extreme Duty Series)
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Round wire locks, premium chrome moly wrist pins (P/N 42251), premium steel top ring, Napier style second ring and higher tension oil ring sets from Total Seal are included.
  • Recommended clearance: .0030" measured 1.100" from the bottom of the oil ring groove.

Specifications

  • Bore size : 88mm
  • Over Size : +.5mm
  • Rod length : 5.927"
  • Stroke : 94
  • Comp distance : 1.270"
  • Dome volume: -13.3cc
  • Cylinder Head : 42cc
  • Dish Piston type
  • Comp. Ratio : 9.5
  • Piston wt/gms : TBA
  • Include ring set : 46880-4
