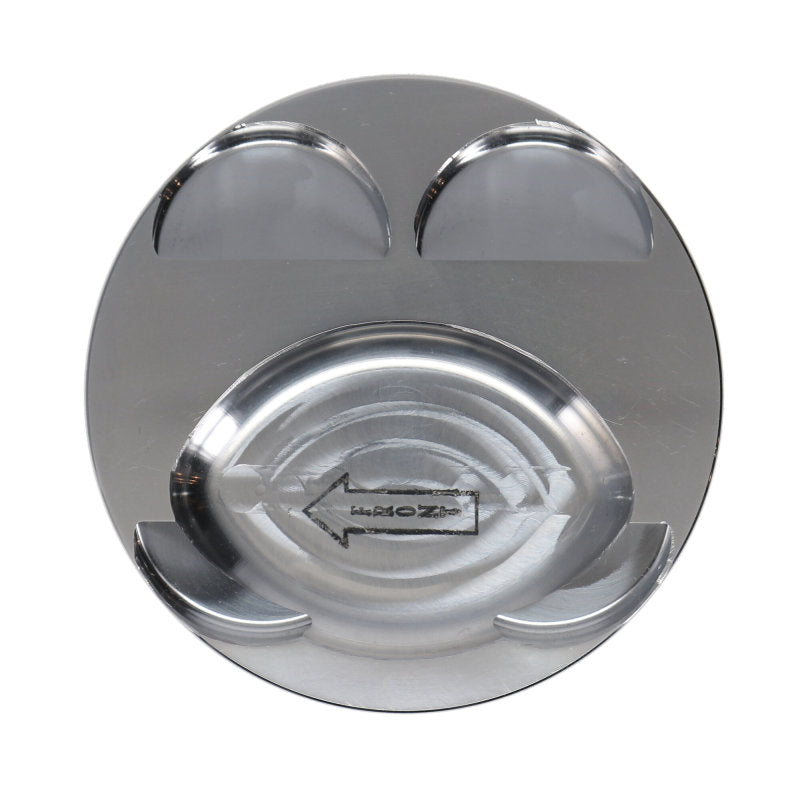

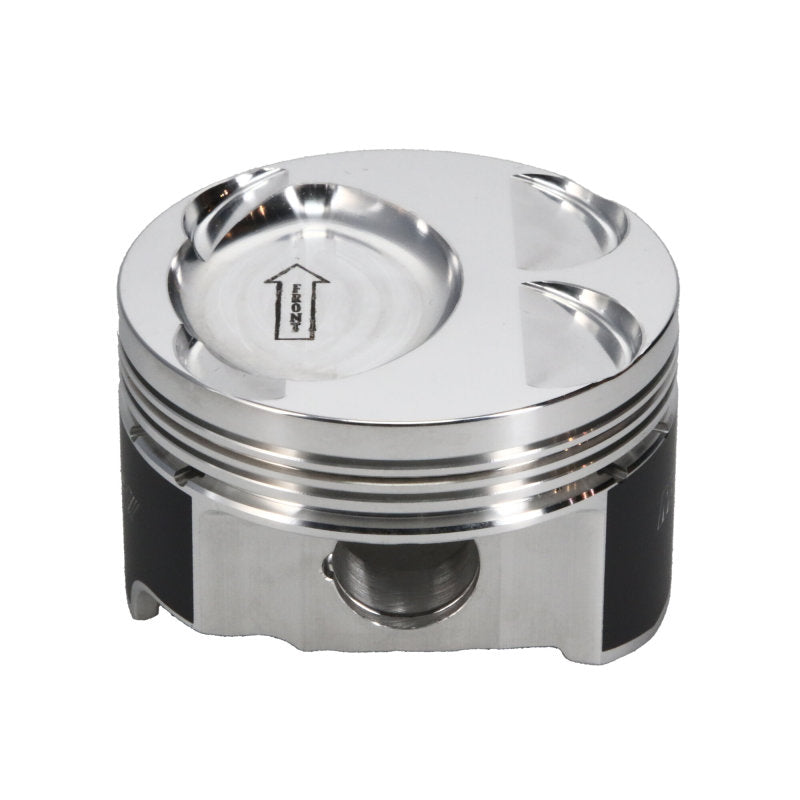

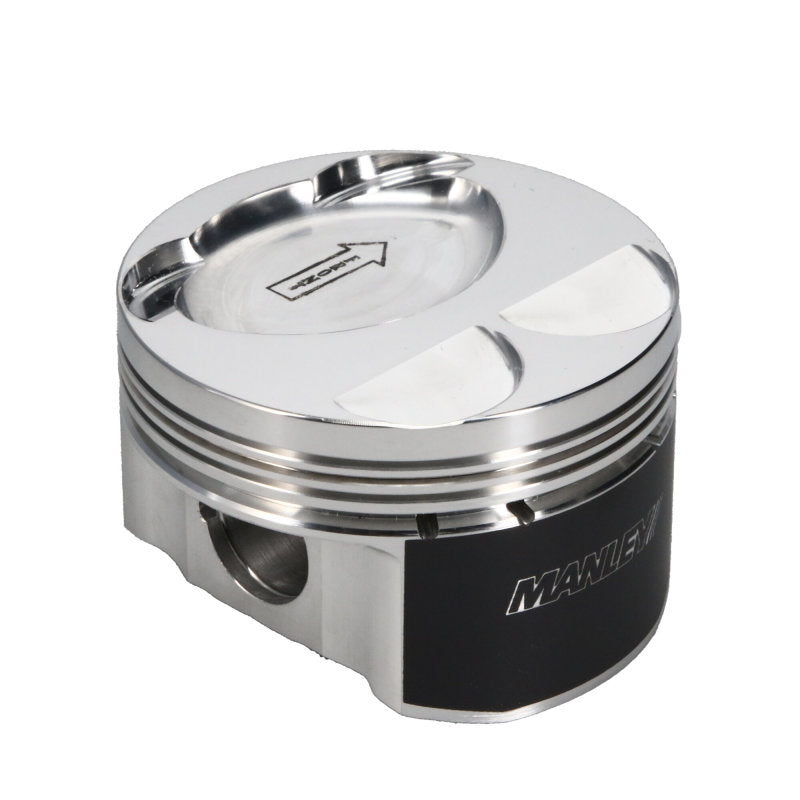

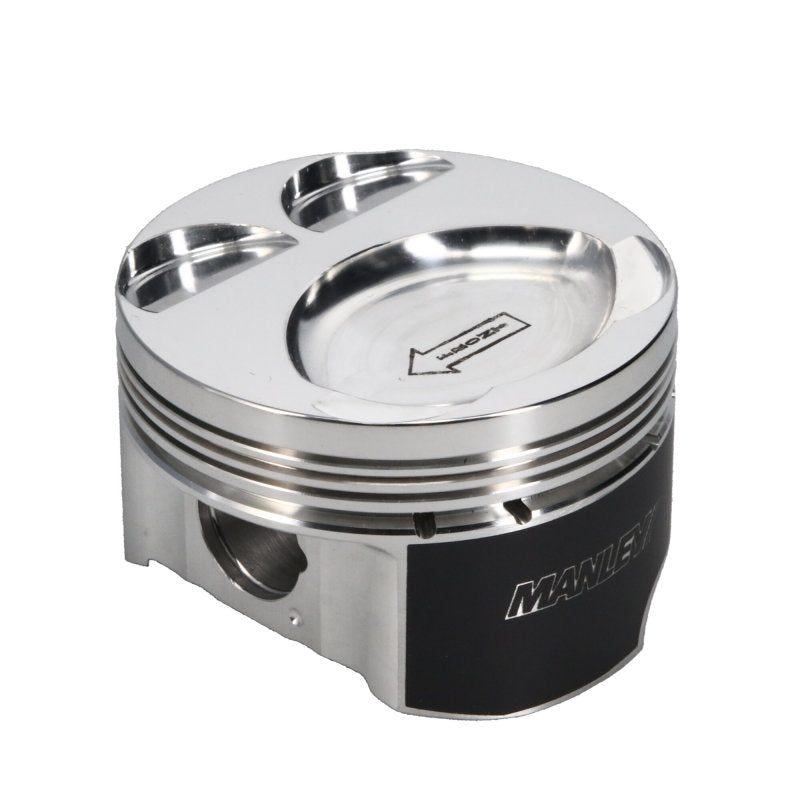

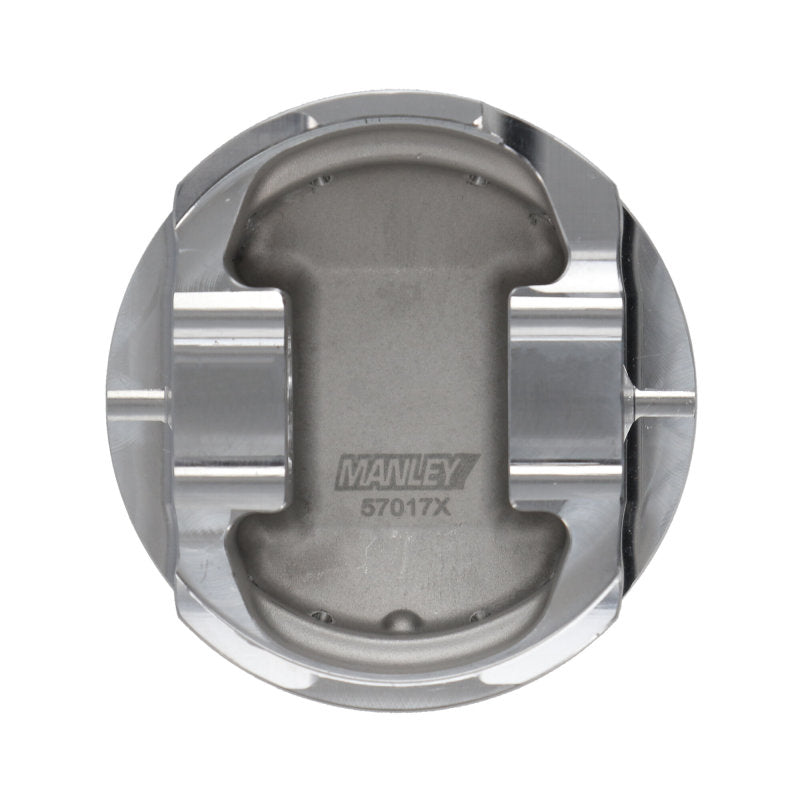

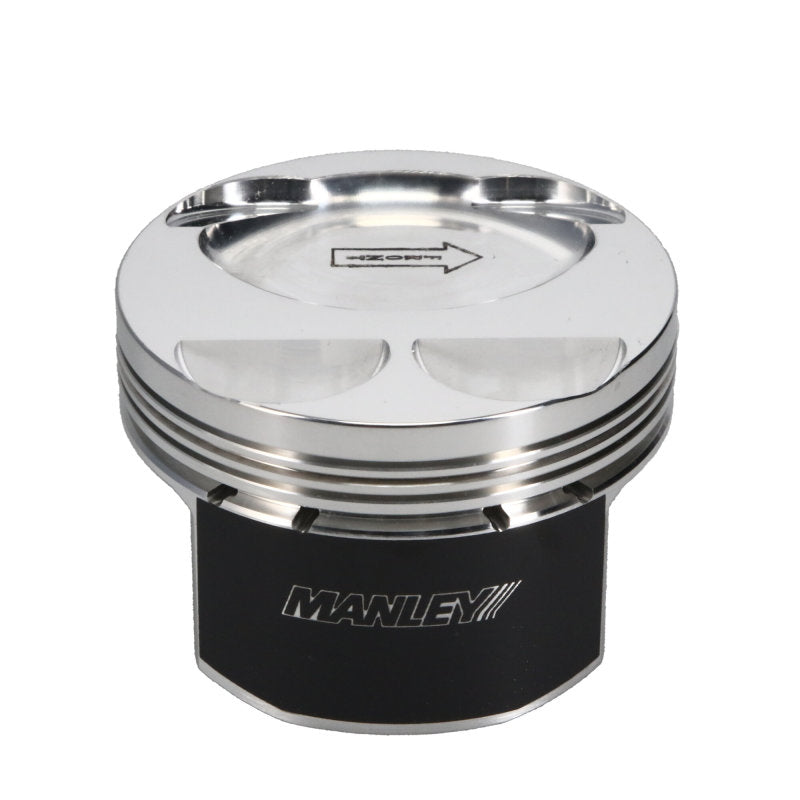

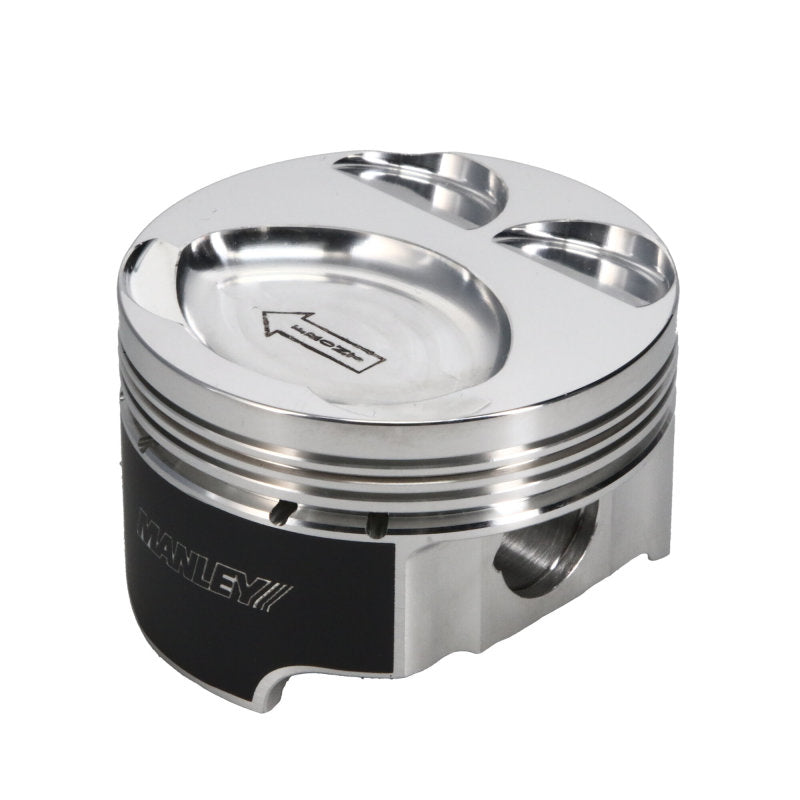

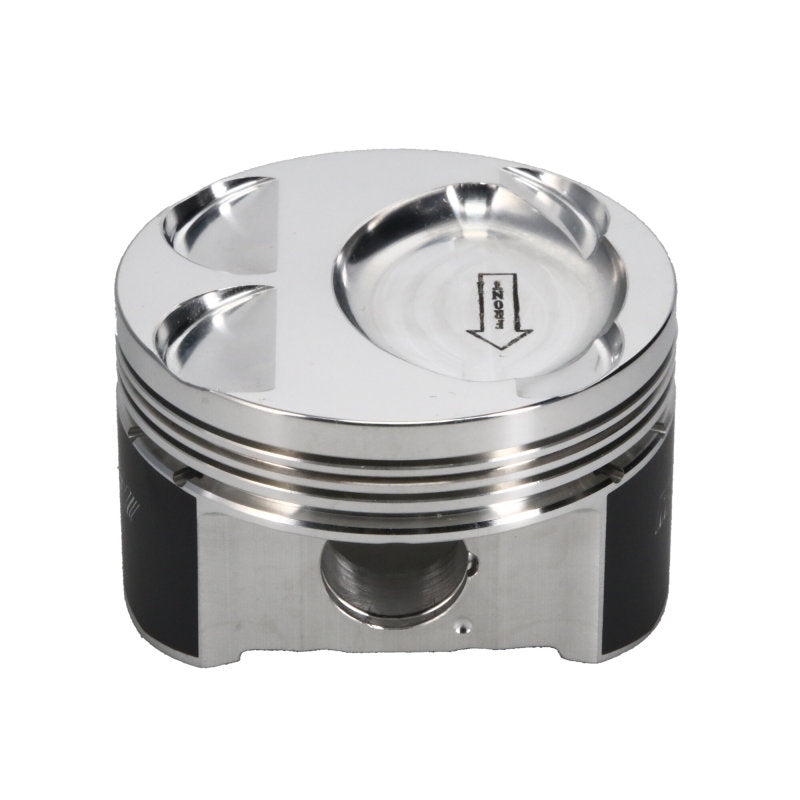

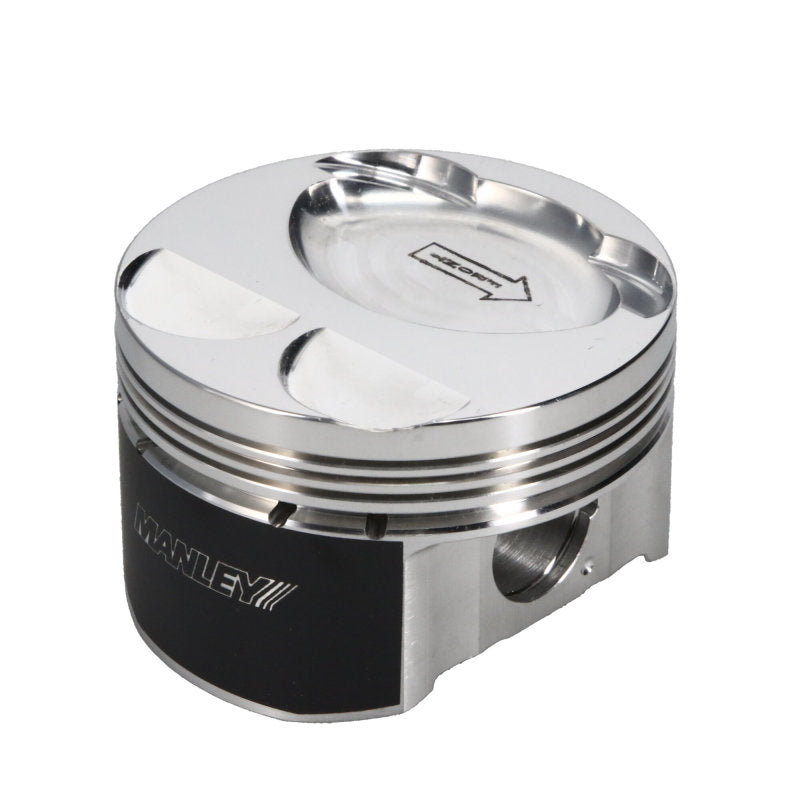

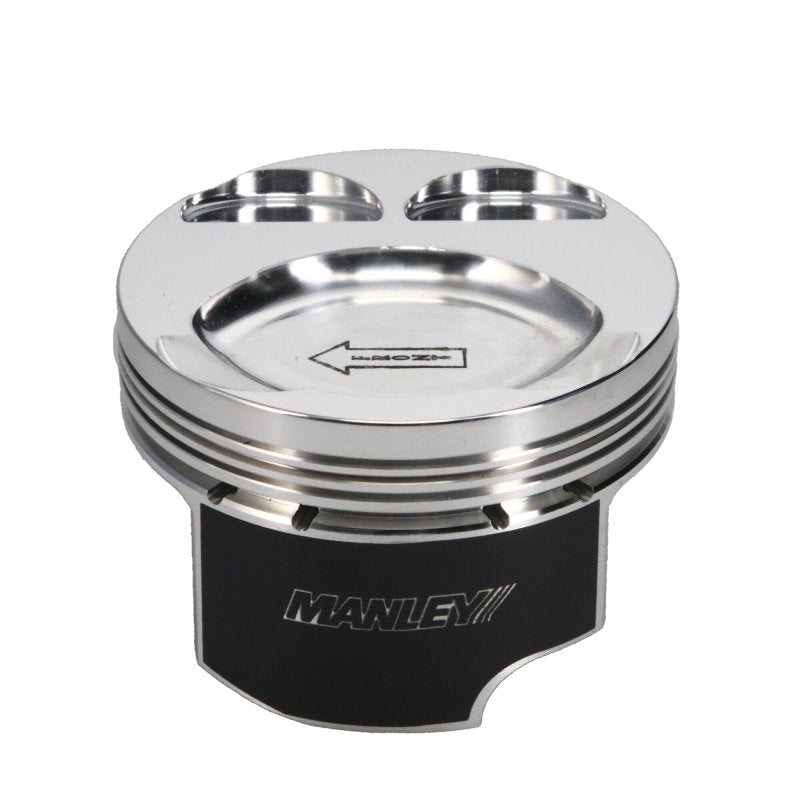

Manley Performance Mazda 94mm 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Pistons w/R

• Made from 2618 alloy, utilize an offset wrist pin design
• Deliver long service life
• Moly coated skirts
• Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower
• .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42248
• 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42548
• Will accommodate +1mm valve sizes
• Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.
• Recommended clearance: .0030" measured 1.100" from the bottom of the oil ring groove.

Specifications

• Bore size : 88mm
• Over Size : +.5mm
• Stroke : 94
• Rod length : 5.927"
• Comp distance : 1.270"
• Dome volume: -13.3cc
• Cylinder Head : 42cc
• Dish Piston type
• Comp. Ratio : 9.5
• Piston wt/gms : TBA
• Include ring set : 46875-4
