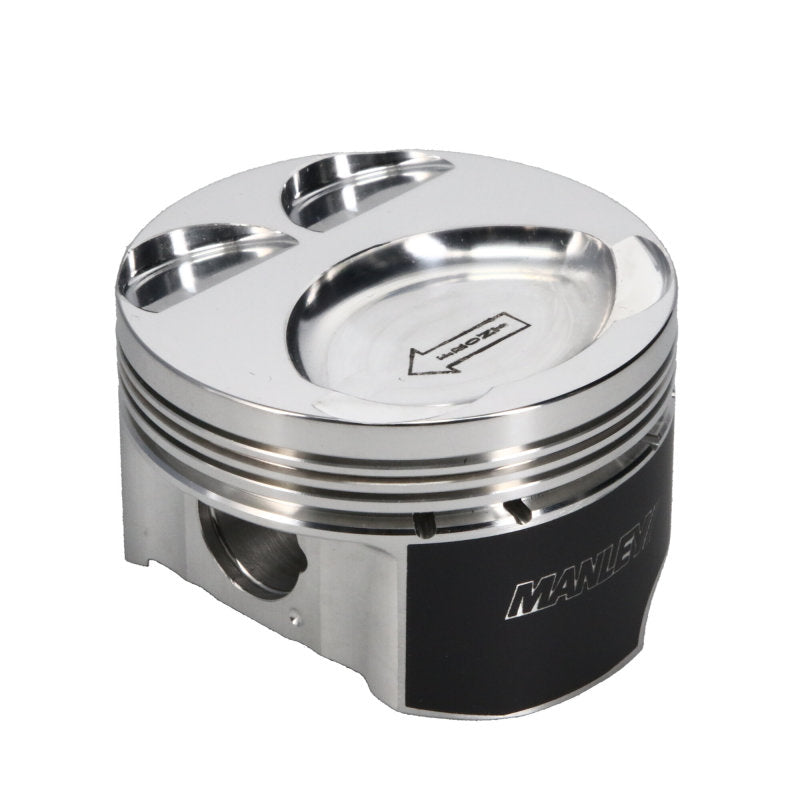

• Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 Photo - Primary

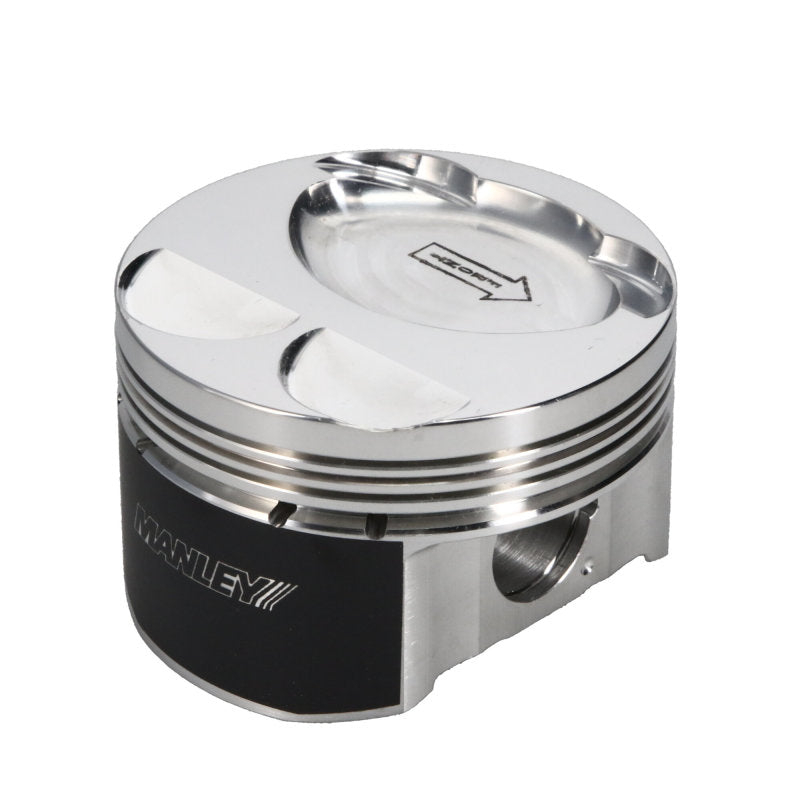

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 Photo - out of package

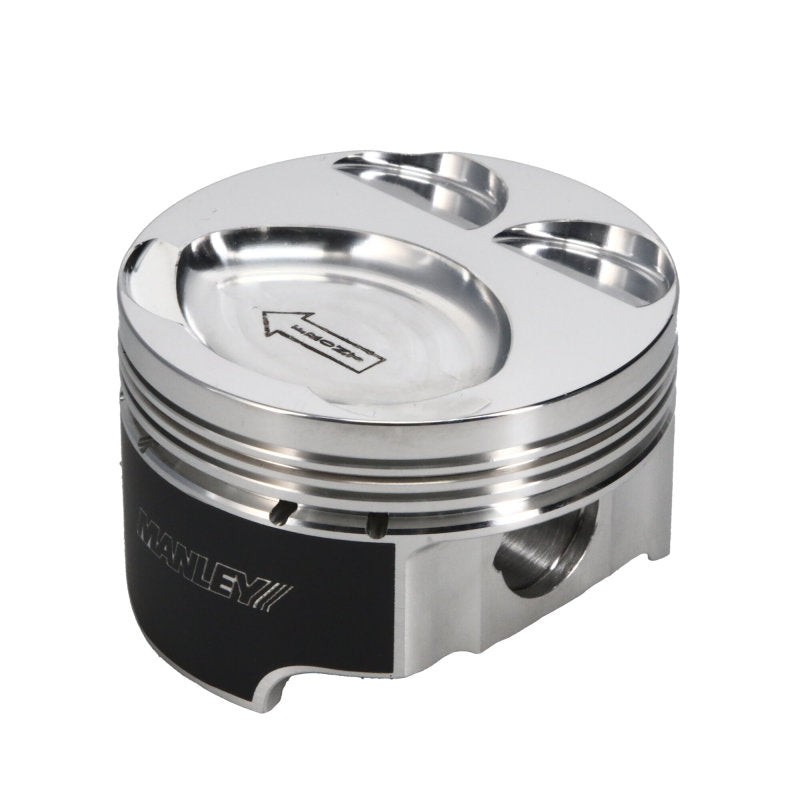

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 1
  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 2

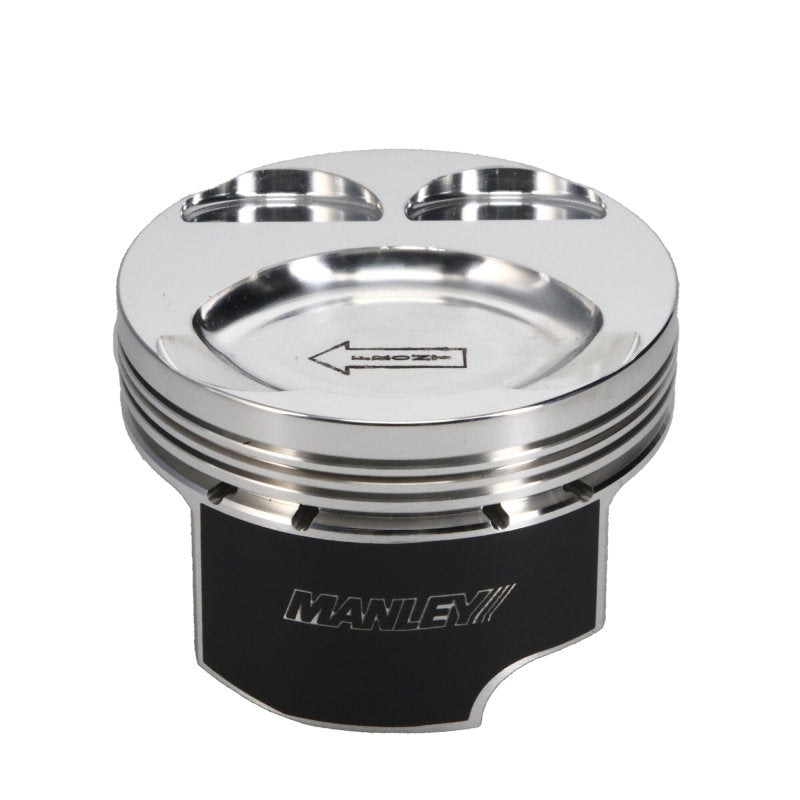

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 3
  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 4

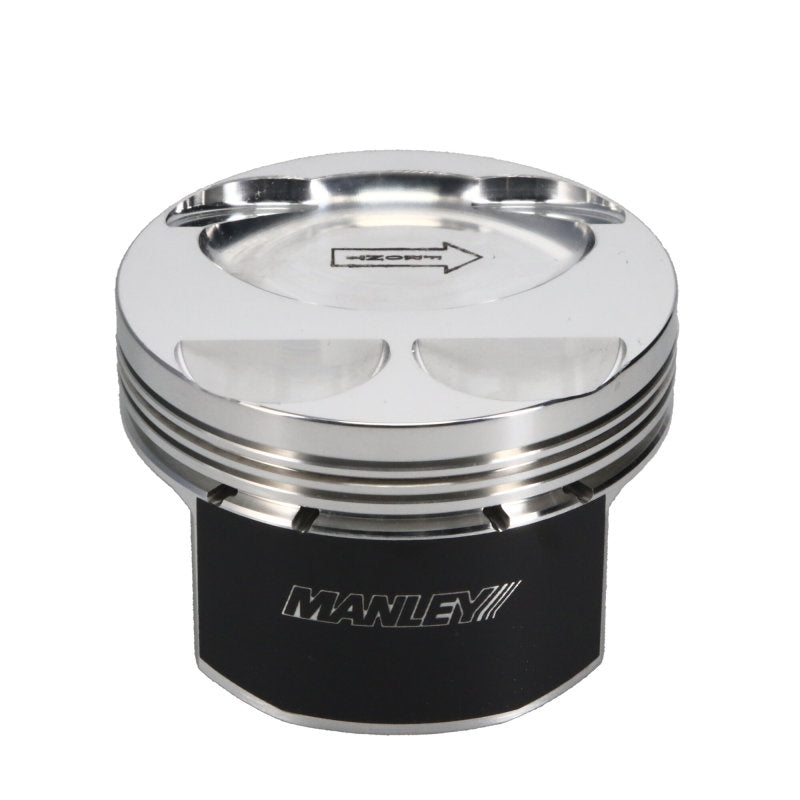

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 5

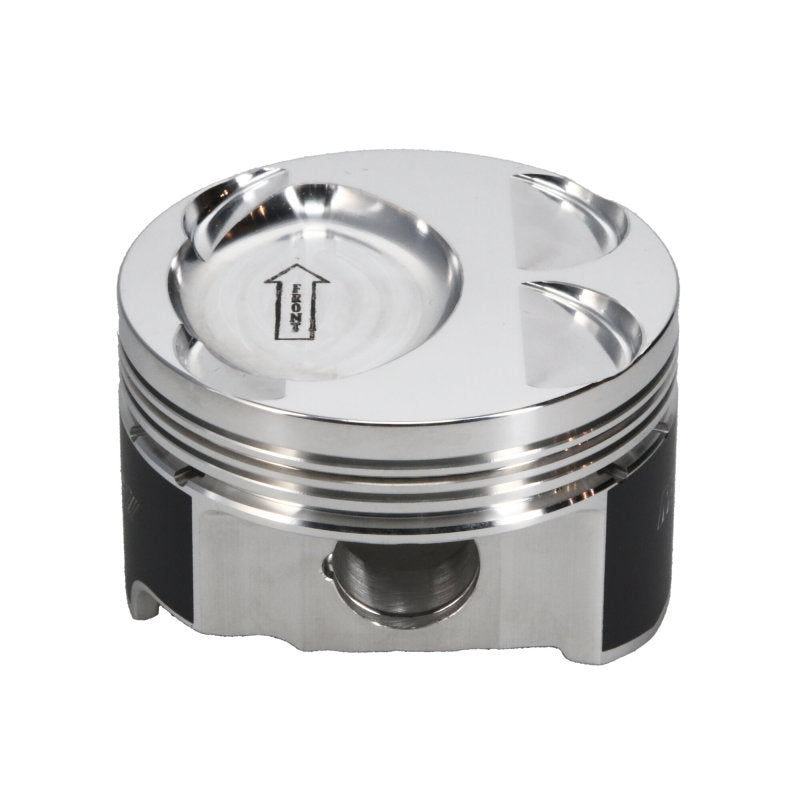

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 6

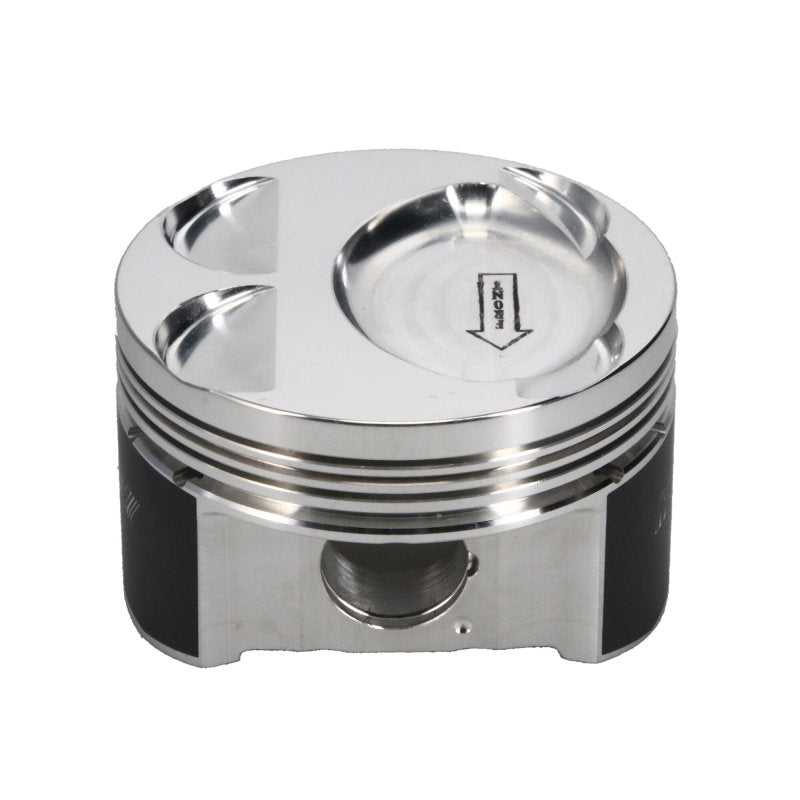

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 7

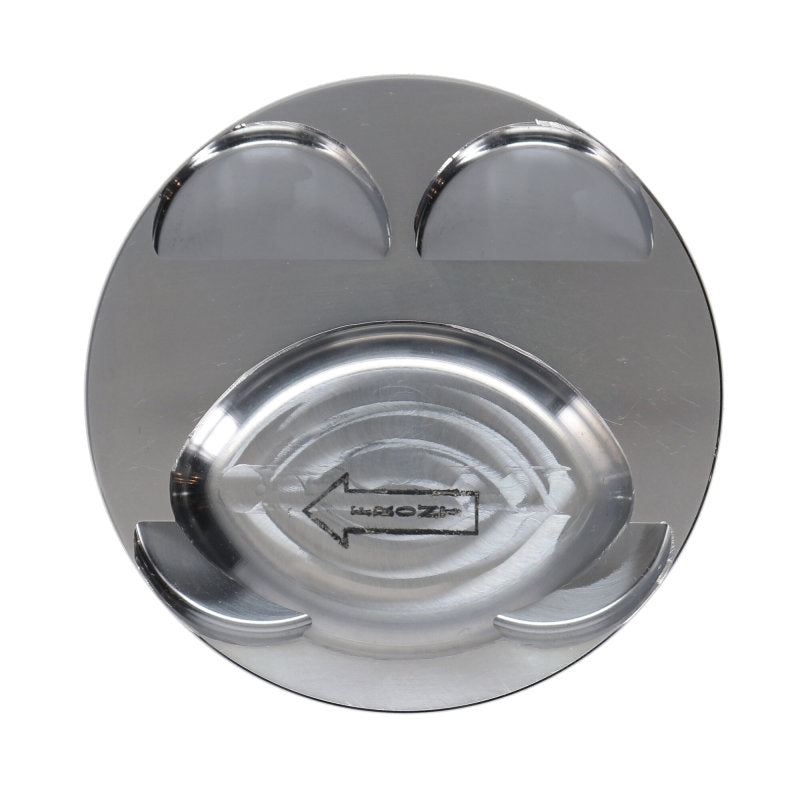

  • Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto 630000C-4 User 8
1 10
Manley

Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto

Manley Performance Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pisto

sku: 0HYVH | mpn: 630000C-4
$871.13
$871.13 $871.13
Sale Sold out
Shipping calculated at checkout.

Low stock: 7 left

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Features

  • Made from 2618 alloy, utilize an offset wrist pin design
  • Deliver long service life
  • Moly coated skirts
  • Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower
  • .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42248
  • 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42548
  • Will accommodate +1mm valve sizes
  • Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.
  • Recommended clearance: .0030" measured 1.100" from the bottom of the oil ring groove.

Specifications

  • Bore size : 87.5mm
  • Over Size : STD
  • Rod length : 5.927"
  • Stroke : 94
  • Comp distance : 1.270"
  • Dome volume: -13.3cc
  • Cylinder Head : 42cc
  • Dish Piston type
  • Comp. Ratio : 9.5
  • Piston wt/gms : TBA
  • Include ring set : 46875-4
