Manley Performance PISTON-MITSUBISHI 23.5cc DISH E/ 11D8P

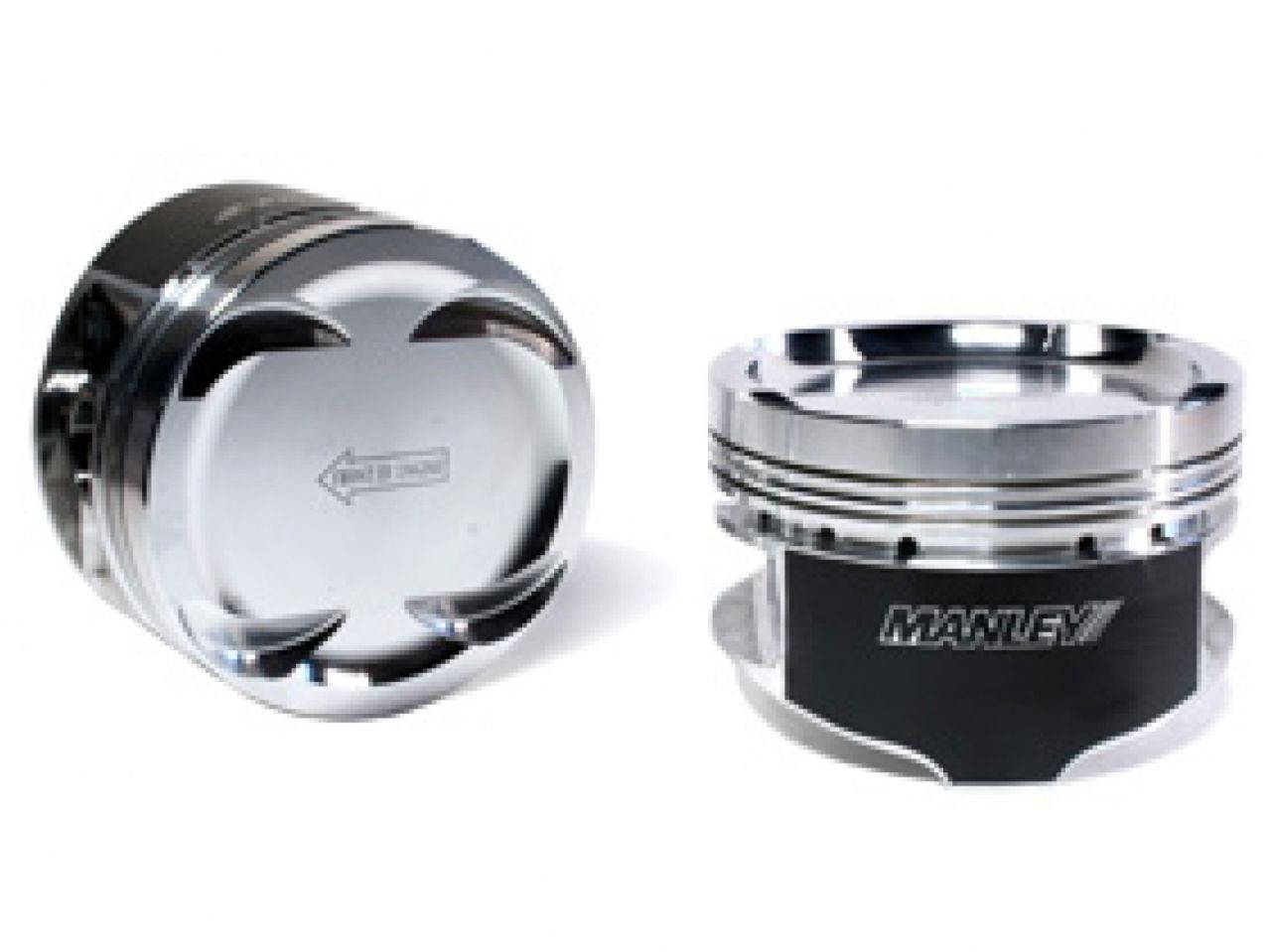

4G63 / 4G64 - PLATINUM SERIES LIGHTWEIGHT PISTONS

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

DSM cyl. head volume = 47cc
EVO cyl. head volume = 43cc

Part #	Extreme Duty Part #	Bore Size (mm)	Over Size	Rod Length	Stroke	Comp. Distance	Dome Volume (cc)	Cylinder Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Mitsubishi 4G64 w/ 4G63 Head 95-99 .866"/22mm x 2.250" Pin x .150" Wall
88mm DE-STROKED (2.1L)
606015C-4	606015CE-4	86.5	STD	156	88	1.375"	-12	47 / 43	8.5 / 9.0	dish	349	46865-4
606020C-4	606020CE-4	87	+.5mm	156	88	1.375"	-12	47 / 43	8.5 / 9.0	dish	354	46870-4
606115C-4	606115CE-4	86.5	STD	156	88	1.375"	-8	47 / 43	9.0 / 9.5	dish	350	46865-4
606120C-4	606120CE-4	87	+.5mm	156	88	1.375"	-8	47 / 43	9.0 / 9.5	dish	359	46870-4
606215C-4	606215CE-4	86.5	STD	156	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	352	46865-4
606220C-4	606220CE-4	87	+.5mm	156	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	360	46870-4
617015C-4	617015CE-4	86.5	STD	162	88	1.130"	-12	47 / 43	8.5 / 9.0	dish	312	46865-4
617020C-4	617020CE-4	87	+.5mm	162	88	1.130"	-12	47 / 43	8.5 / 9.0	dish	320	46870-4
94mm DE-STROKED (2.2L)
618015C-4	618015CE-4	86.5	STD	156	94	1.248"	-17	47 / 43	8.5 / 9.0	dish	327	46865-4
618020C-4	618020CE-4	87	+.5mm	156	94	1.248"	-17	47 / 43	8.5 / 9.0	dish	334	46870-4
618215C-4	618215CE-4	86.5	STD	156	94	1.248"	-8	47 / 43	10.0 / 10.5	dish	335	46865-4
618220C-4	618220CE-4	87	+.5mm	156	94	1.248"	-8	47 / 43	10.0 / 10.5	dish	344	46870-4
619015C-4	619015CE-4	86.5	STD	162	94	1.012"	-17	47 / 43	8.5 / 9.0	dish	289	46865-4
619020C-4	619020CE-4	87	+.5mm	162	94	1.012"	-17	47 / 43	8.5 / 9.0	dish	296	46870-4
619215C-4	619215CE-4	86.5	STD	162	94	1.012"	-8	47 / 43	10.0 / 10.5	dish	295	46865-4
619220C-4	619220CE-4	87	+.5mm	162	94	1.012"	-8	47 / 43	10.0 / 10.5	dish	302	46870-4
100mm STD STROKE (2.4L)
613000C-4	613000CE-4	86.5	STD	150	100	1.375"	-23.5	47 / 43	8.5 / 9.0	dish	338	46865-4
613005C-4	613005CE-4	87	+.5mm	150	100	1.375"	-23.5	47 / 43	8.5 / 9.0	dish	346	46870-4
606015C-4	606015CE-4	86.5	STD	150	100	1.375"	-12	47 / 43	10.0 / 10.5	dish	349	46865-4
606020C-4	606020CE-4	87	+.5mm	150	100	1.375"	-12	47 / 43	10.0 / 10.5	dish	354	46870-4
608015C-4	608015CE-4	86.5	STD	156	100	1.130"	-22	47 / 43	8.6 / 9.1	dish	300	46865-4
608020C-4	608020CE-4	87	+.5mm	156	100	1.130"	-22	47 / 43	8.6 / 9.1	dish	307	46870-4
617015C-4	617015CE-4	86.5	STD	156	100	1.130"	-12	47 / 43	10.0 / 10.5	dish	312	46865-4
617020C-4	617020CE-4	87	+.5mm	156	100	1.130"	-12	47 / 43	10.0 / 10.5	dish	320	46870-4
