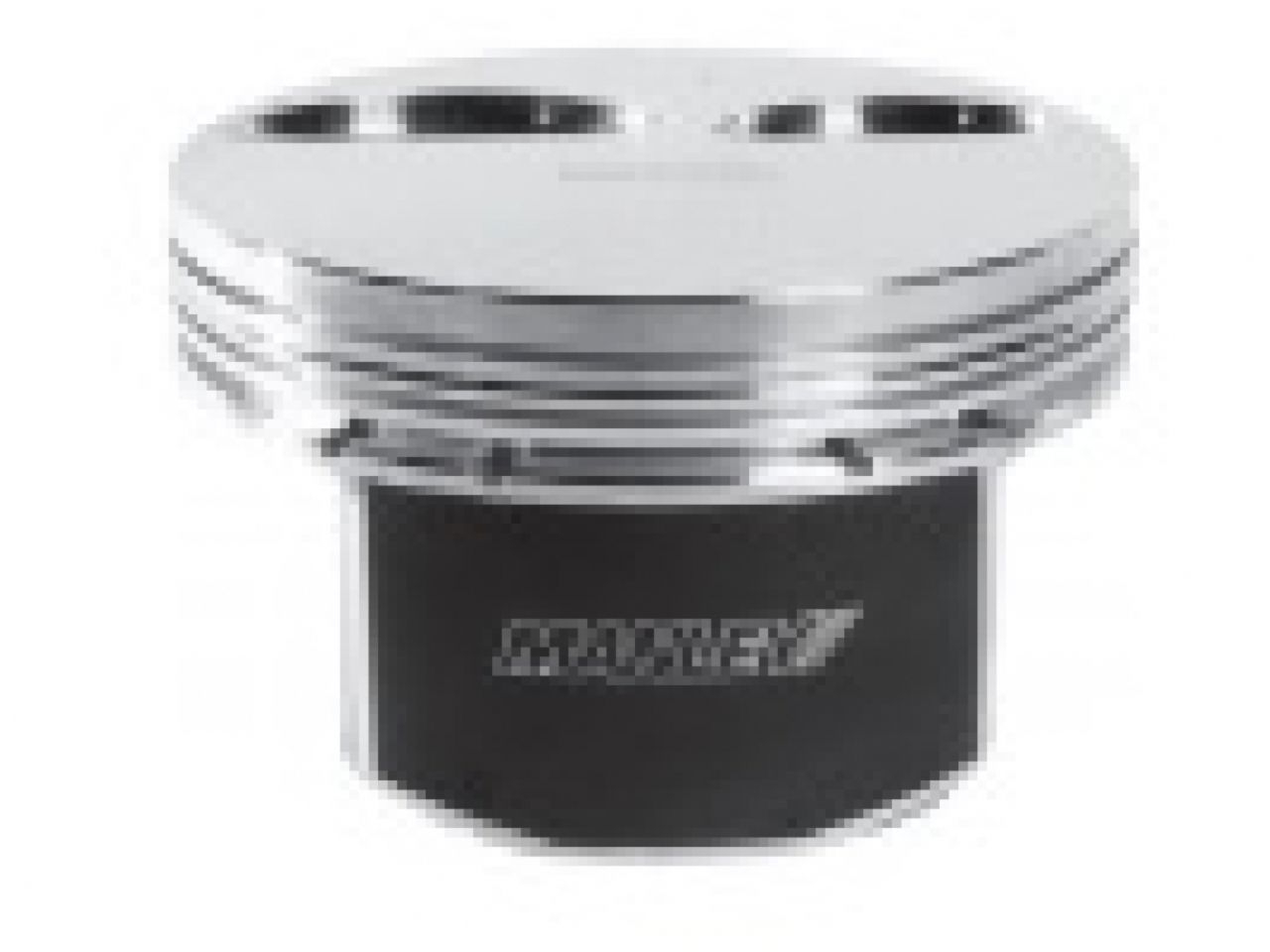

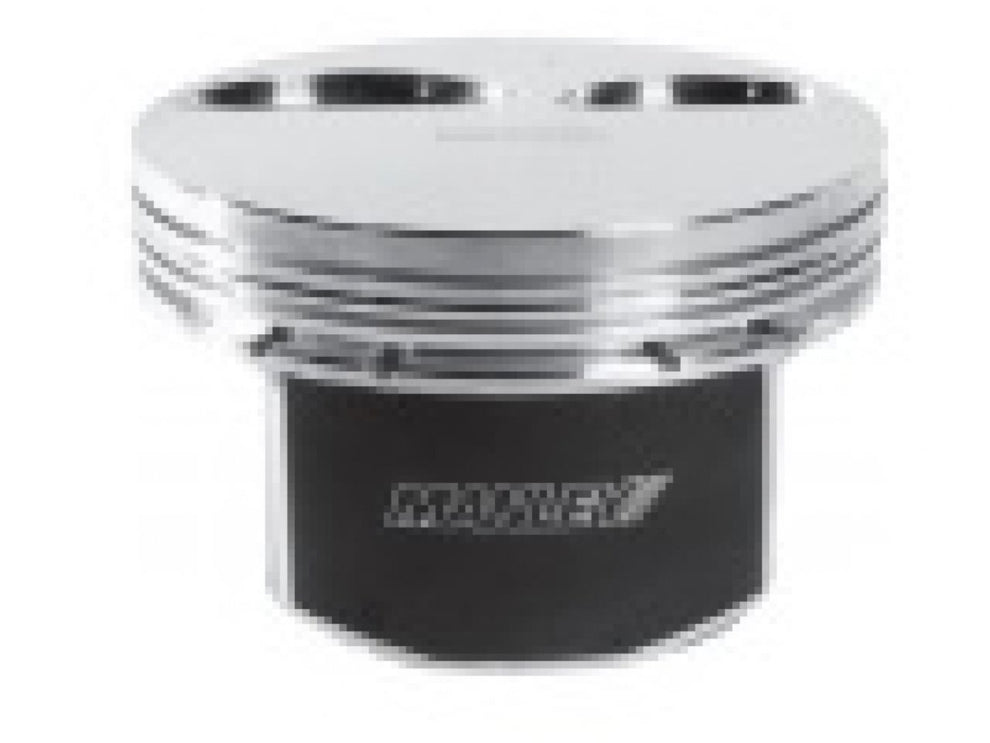

Manley Performance Small Block Chevrolet LS Series 3.905" Bore -4cc Flat Top Ductile Iron
Manley Performance Small Block Chevrolet LS Series 3.905" Bore -4cc Flat Top Ductile Iron
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 4 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policy- Ductile Iron Top Rings
- -4cc FLAT?TOP
- 2618 high strength material lightweight design
- Offset wrist pin design
- Machined for reluctor wheel clearance
- Round wire locks
- 1.5, 1.5, 3mm ring package
- Forced pin oiling, pressure balance groove and precision pin fitting
- Premium Chrome Moly wrist pins (Standard Series) included
- 9310 alloy .170" wall pin (Extreme Duty Series)
- Bore Size 3.905"
- Rod Length 6.098"
- Stroke 3.622"
- Comp Distance 1.340"
- Pin Diameter 24mm/.945"
- Piston wgt/grms 428
- Valve Pocket Type LS-1,2,6
- Valve Pocket Depth Int./Exh. .175"/.150"
