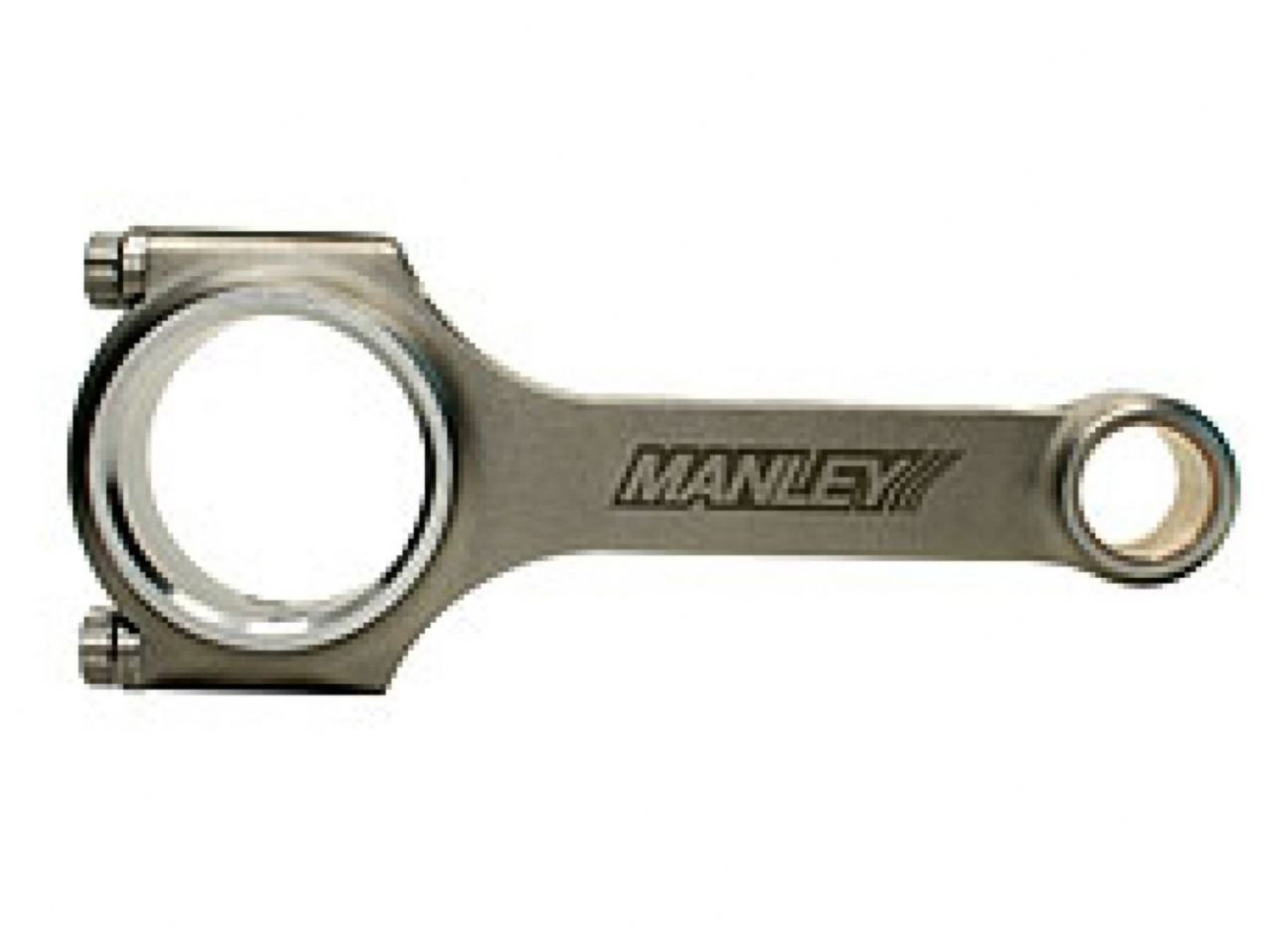

Manley Performance 08+ Mitsubishi 4B11T 2.0L H Tuff Beam 5.656in L Connecting Rod Set

• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8" ARP 2000 for the H-Tuff
• Flywheel horsepower range for the these rods in a 4 cylinder application is 750 with the ARP 2000 bolts
  and 950 with ARP 625+ bolts. In a 6 cylinder application the horsepower range is 1000 with the ARP 2000 bolts
  and 1200 with the ARP 625+ bolts.

Specification

• Center-to-Center : 5.656"
• Big End Bore : 2.165"
• Big End Width : .860"
• Pin Diameter : .9055" (23mm)
• Pin Bore : .9063"
• Weight : 620g
