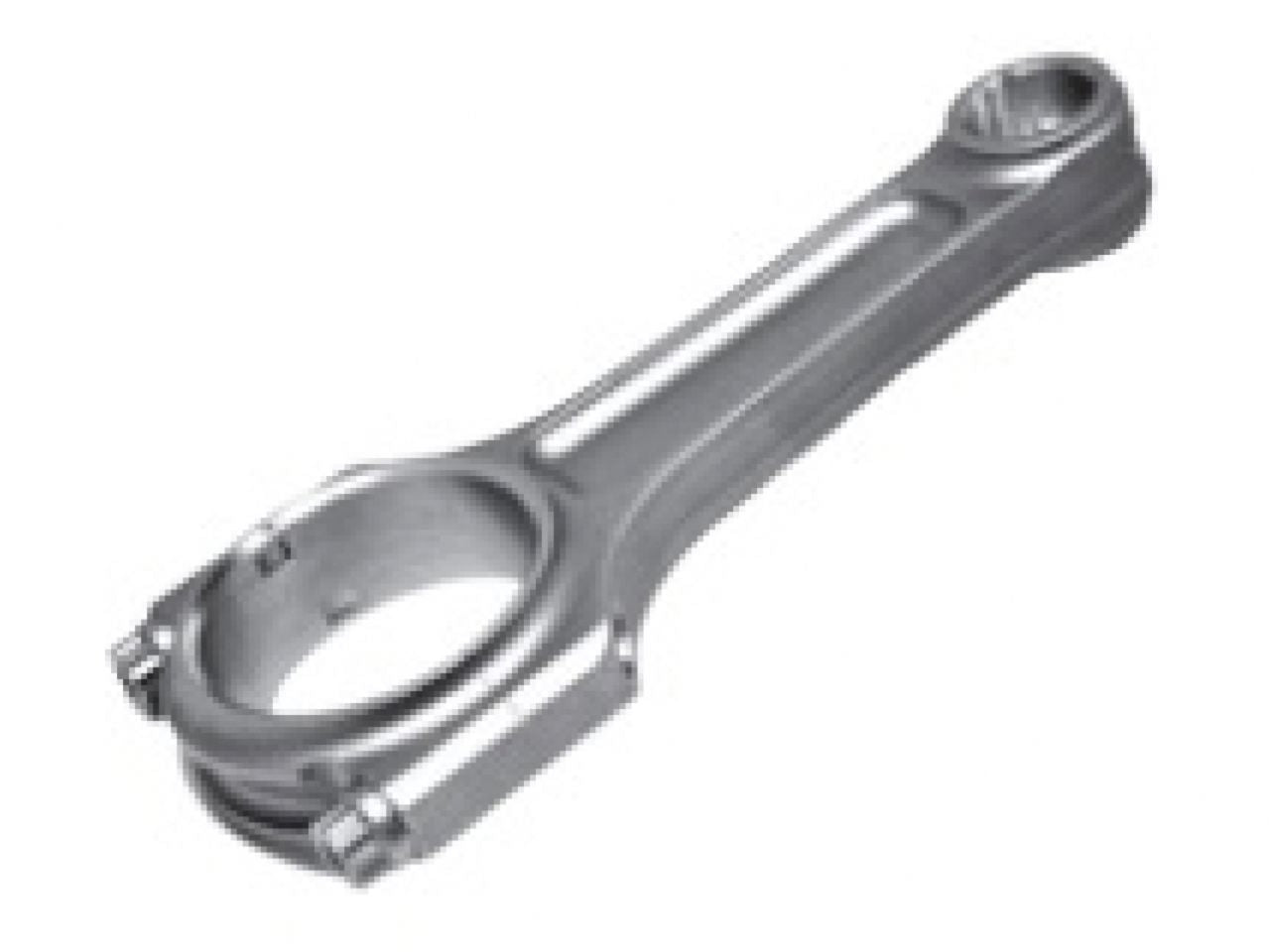

Manley Performance Ford Focus ST Ecoboost 2.0L Turbo Tuff Pro Series I Beam

Features

- Forged from 4340 aircraft quality vacuum degassed material
- Shot peened after machining to MIL spec and 100% individually magnafluxed
- Specifically designed to handle high horsepower applications when using turbos and/or nitrous
- Fasteners are 3/8" except P/N 14427 which is supplied with 7/16" fasteners
- Flywheel horsepower range for these rods in a 4 cylinder application is 1,000+, for a 6 cylinder application the range is 1,250+ and for a 10 cylinder application the range is 1,500+

Specification

Center to Center: 6.136"
Big End Bore: 2.167"
Big End Width: .860"
Pin Diameter: .886" (22.5mm)
Pin Bore: .8868"
Avg. Gram/Weight: 615
