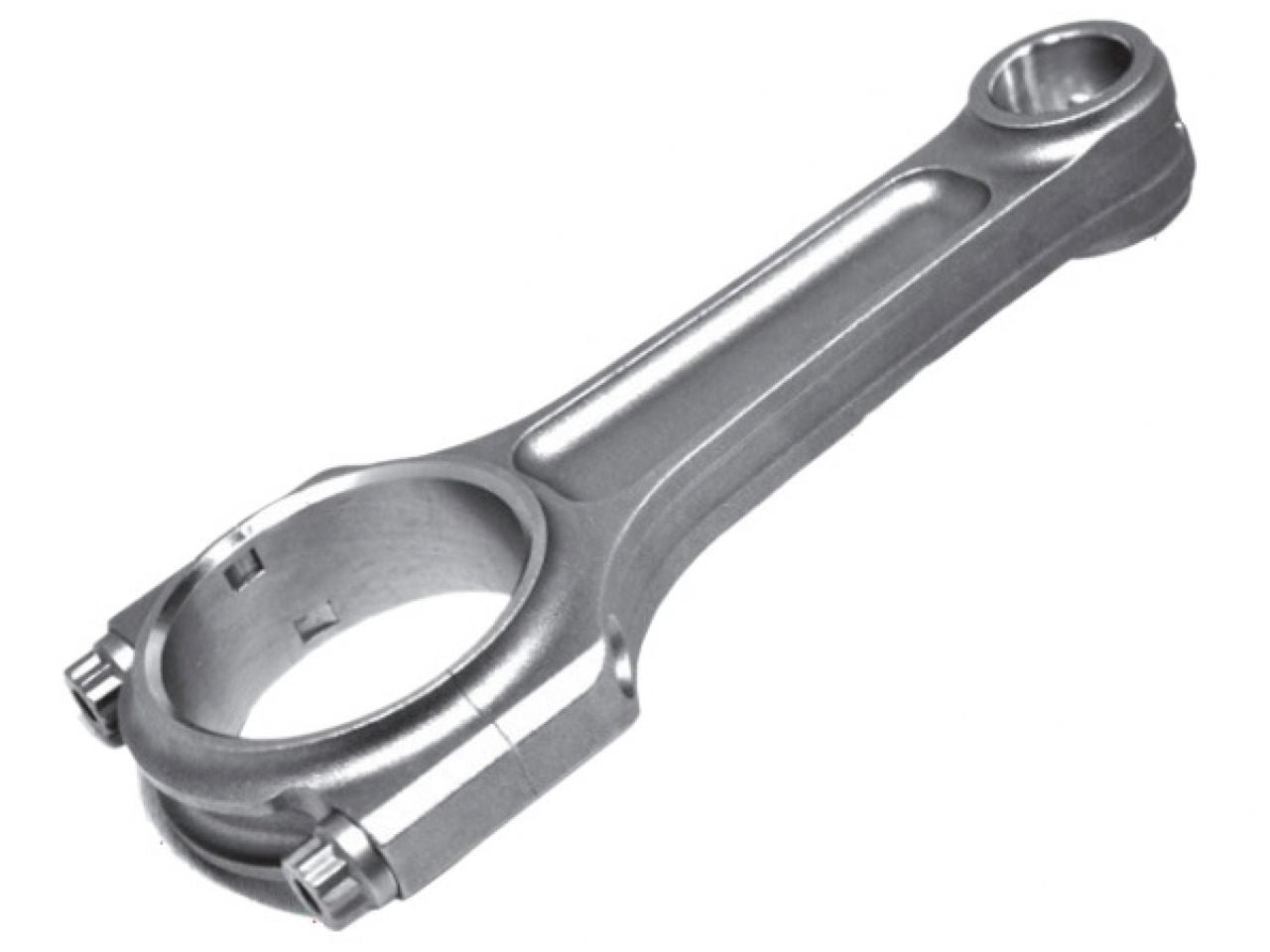

Manley Performance Mazda Speed3 MZR 2.3L DISI T Turbo Tuff Pro Series I Beam Connecting R

• Forged from 4340 aircraft quality vacuum degassed material
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower applications when using turbos and/or nitrous
• Fasteners are 3/8"
• Flywheel horsepower range for these rods in a 4 cylinder application is 1,000+ and for a 6 cylinder application the range is 1,250+

Specification

• Center to Center : ­5.927"
• Big End Bore : 2.166"
• Big End Width : .859"
• Pin Diameter : .886" (22.5mm)
• Pin Bore : .8868"
• Avg. Gram Weight : 605
