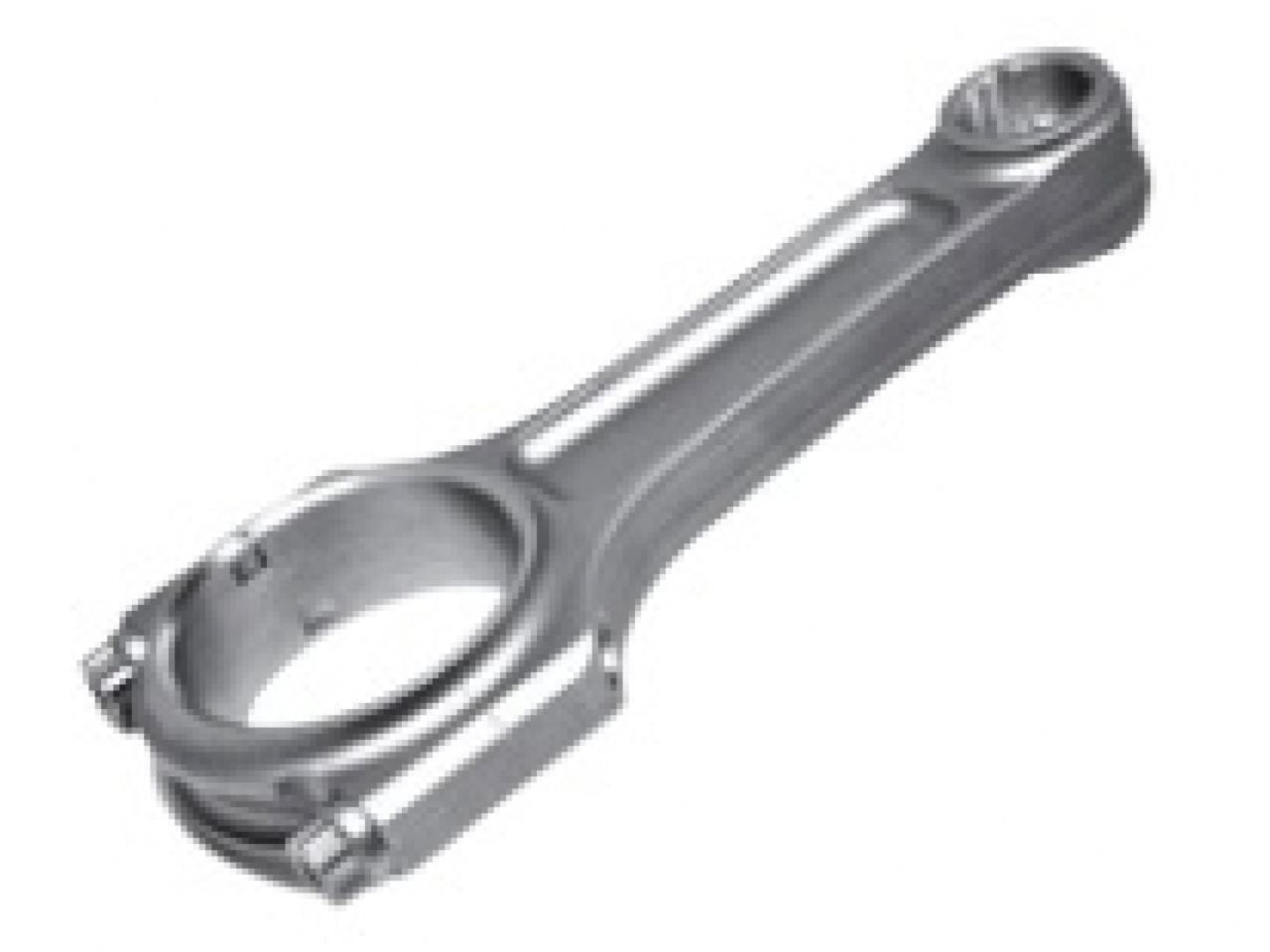

Manley Performance Mazda 3 MZR 2.3L Turbo Tuff Pro Series I Beam Connecting Rod Set w/ARP

Features

- Forged from 4340 aircraft quality vacuum degassed material
- Shot peened after machining to MIL spec and 100% individually magnafluxed
- Specifically designed to handle high horsepower applications when using turbos and/or nitrous
- Fasteners are 3/8" except P/N 14427 which is supplied with 7/16" fasteners
- Flywheel horsepower range for these rods in a 4 cylinder application is 1,000+, for a 6 cylinder application the range is 1,250+ and for a 10 cylinder application the range is 1,500+

Specification

Center to Center: 5.927"
Big End Bore:  2.166"
Big End Width:  .859"
Pin Diameter:  .866" (22mm)
Pin Bore:  .8671"
Avg. Gram/Weight: 605
