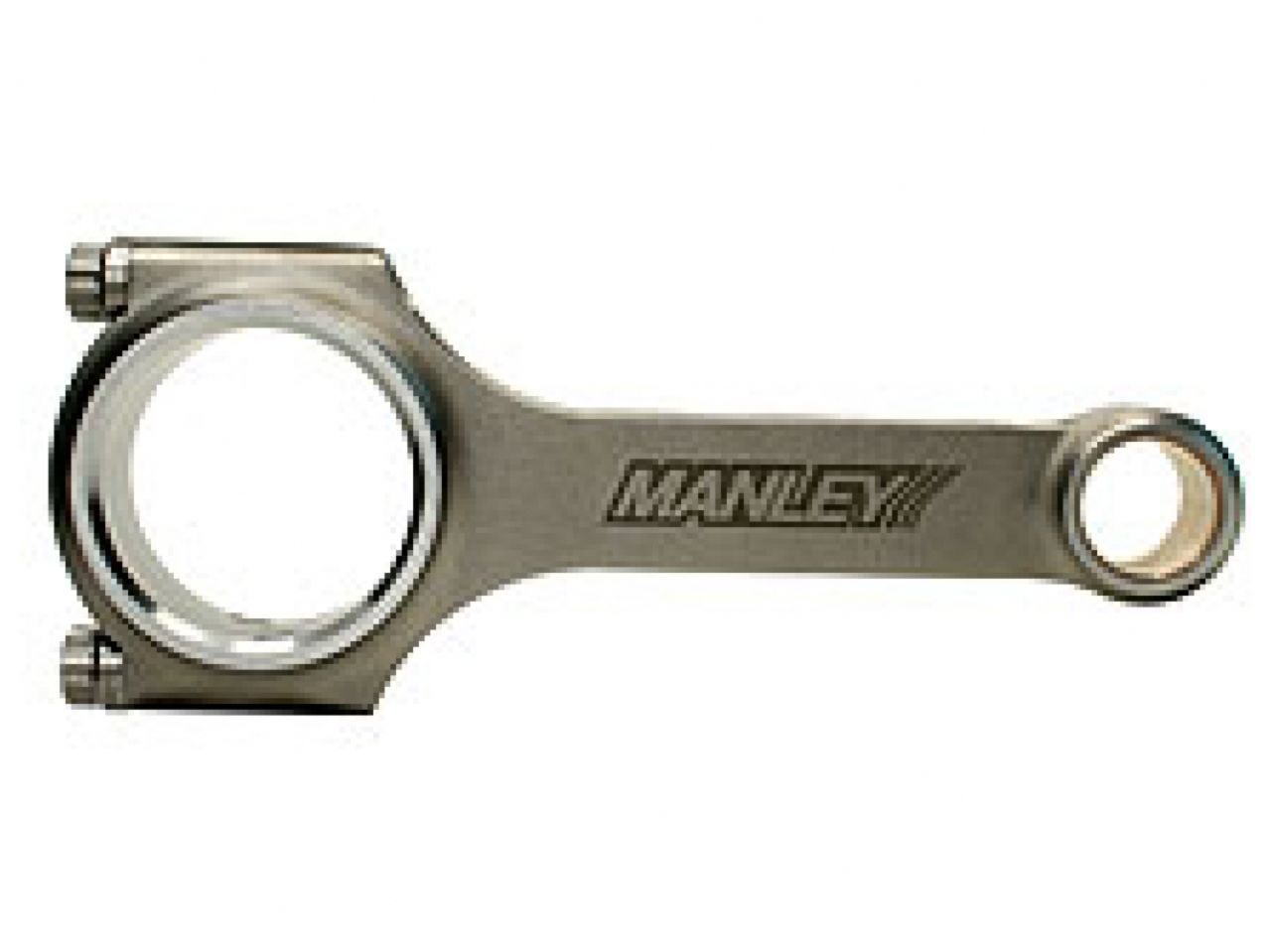

Manley Performance connection rods Pro Series Turbo Tuff I Beam
Manley Performance connection rods Pro Series Turbo Tuff I Beam
Part No.: 14414-4
B SERIES - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS
Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws.
SPECIFICATIONS
.YEARS: 1994-2001
.CAR MAKE: Acura / Honda
.CAR MODEL: Integra GS-R / Type-R
.BEARING TYPE
.ENGINE SPECIFICATIONS: B18C1, B18C5
.ROD BOLT: 3/8" ARP 2000
.PART WEIGHT: 547 g
.BIG END WIDTH: 0.858
.BIG END BORE: 1.890
.BEAM TYPE: Turbo Tuff I-Beam Rods
.PIN SIZE: 21mm
.ROD LENGTH: 5.433
.MATERIAL: 4340 Steel
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 2001 | Acura | Integra | GS, Type R |
| 1994 - 2001 | Acura | Integra | GS-R, LS |
| 1994 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
Manley Performance connection rods Pro Series Turbo Tuff I Beam
Sale price$1,031.40 USD
Regular price$1,083.05 USD
