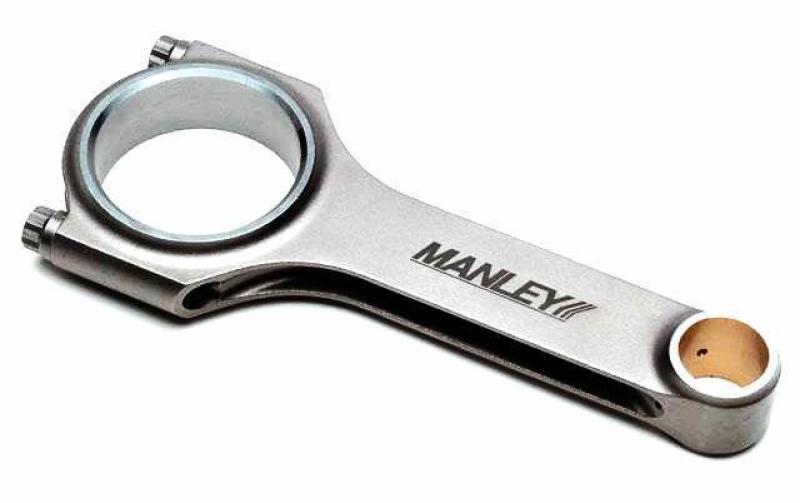

Manley Performance Connecting Rod, Forged 4340 Steel, H-Beam, Bushed, Cap Screw, Ford
Manley Performance Connecting Rod, Forged 4340 Steel, H-Beam, Bushed, Cap Screw, Ford
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 1 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyManley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams.
- Quantity:Sold individually.
- Connecting Rod Length Center to Center (in):5.933 in.
- Connecting Rod Beam Style:H-beam
- Connecting Rod Material:Forged 4340 steel
- Connecting Rod Finish:Shot-peened
- Wrist Pin Style:Floating
- Clearanced for Stroker:No
- Cap Retention Style:Cap screw
- Connecting Rod Bolt Brand:ARP
- Connecting Rod Bolt Diameter:3/8 in.
- Connecting Rod Bolt Material:ARP2000 alloy
- Fastener Yield Strength (psi):200,000 psi
- Connecting Rod Bolt Head Style:12-point
- Approximate Connecting Rod Weight (g):602
- Big End Bore Diameter (in):2.2390 in.
- Pin End Bore Diameter:0.867 in.
- Big End Width (in):0.940 in.
- Pin End Width (in):0.940 in.
- Advertised Horsepower Rating:750 hp
- Weight Matched Set:No
- Remanufactured:No
- Magnafluxed:Yes
- Notes:Designed for 22mm wrist pin.
