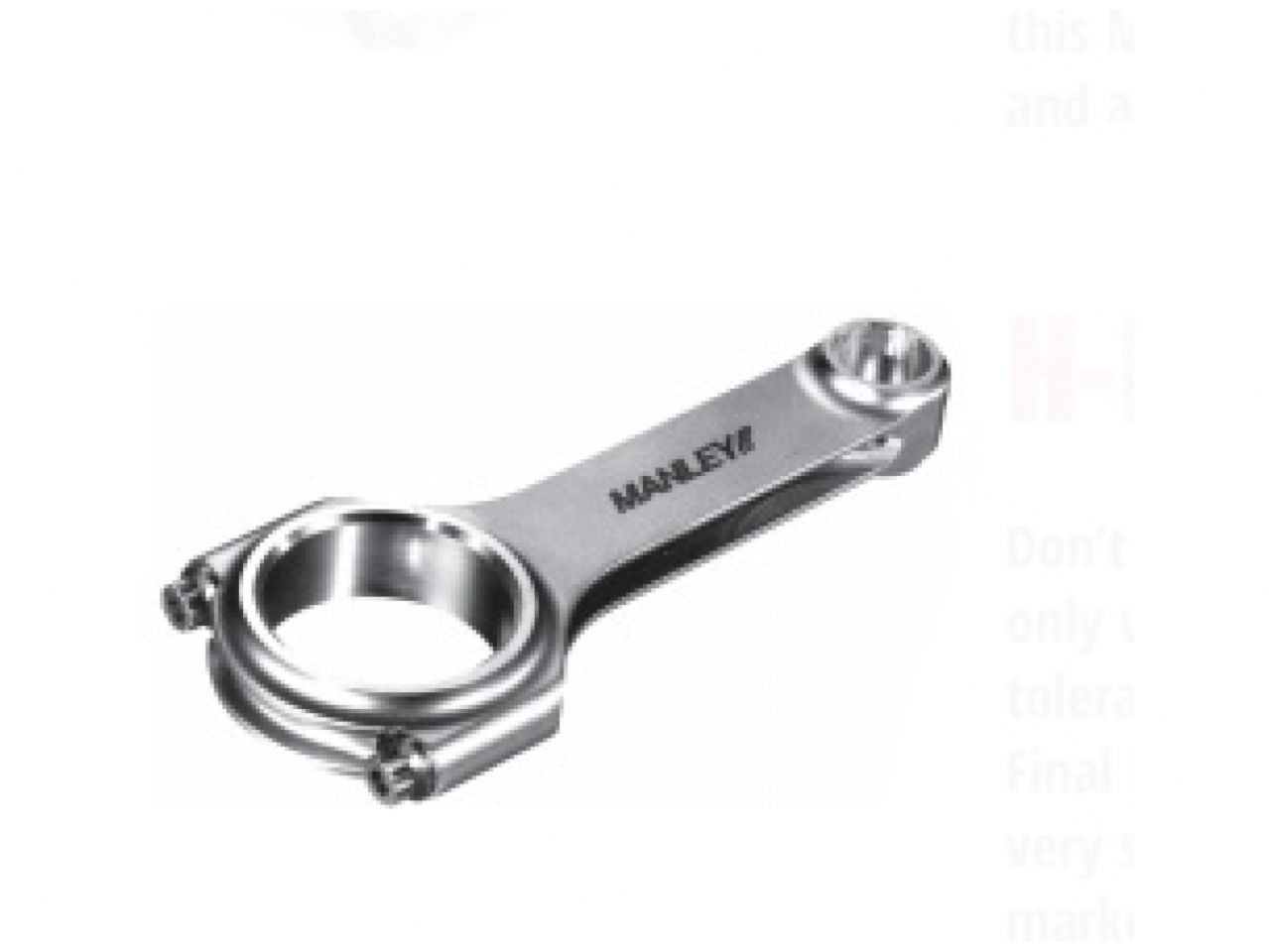

Manley Performance Ford Modular V8-4.6L H Beam Connecting (Single Rod) Arp 8740

Don't be fooled; not all H-Beams are created equal. Manley H-Beams are not only very "economically" priced, but they are finished to the same exacting tolerances and high quality standards as our Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market.

- H-Beam Rods

- Manufactured from 4340 forgings

- Heat treated, stress relieved, shot peened and 100% magnafluxed

- Weight matched sets + 1.5 grams

- Cap fasteners are 3/8" ARP 8740 or optional ARP 2000 cap screws

- Flywheel horsepower range for these rods is 700 HP (ARP 8740), 750+ HP (ARP 2000)

- 4.6 L Stock Length w/ 22mm pin

- Center- to Center 5.933"

- Big End Bore 2.239"

- Big End Width .940"

- Pin Bore .8671"

- Avg. Gram Weight 615
