Manley Performance Mazda Speed 3 MZR 2.3L DIDSI Turbo H Beam Connecting Rod Set 22mm Pin 0HY2R
Manley Performance Mazda Speed 3 MZR 2.3L DIDSI Turbo H Beam Connecting Rod Set 22mm Pin 0HY2R
sku: 0HY2R | mpn: 14030-4
Regular price
$616.73
Regular price
$914.40
Sale price
$616.73
Shipping calculated at checkout.
Low stock: 8 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

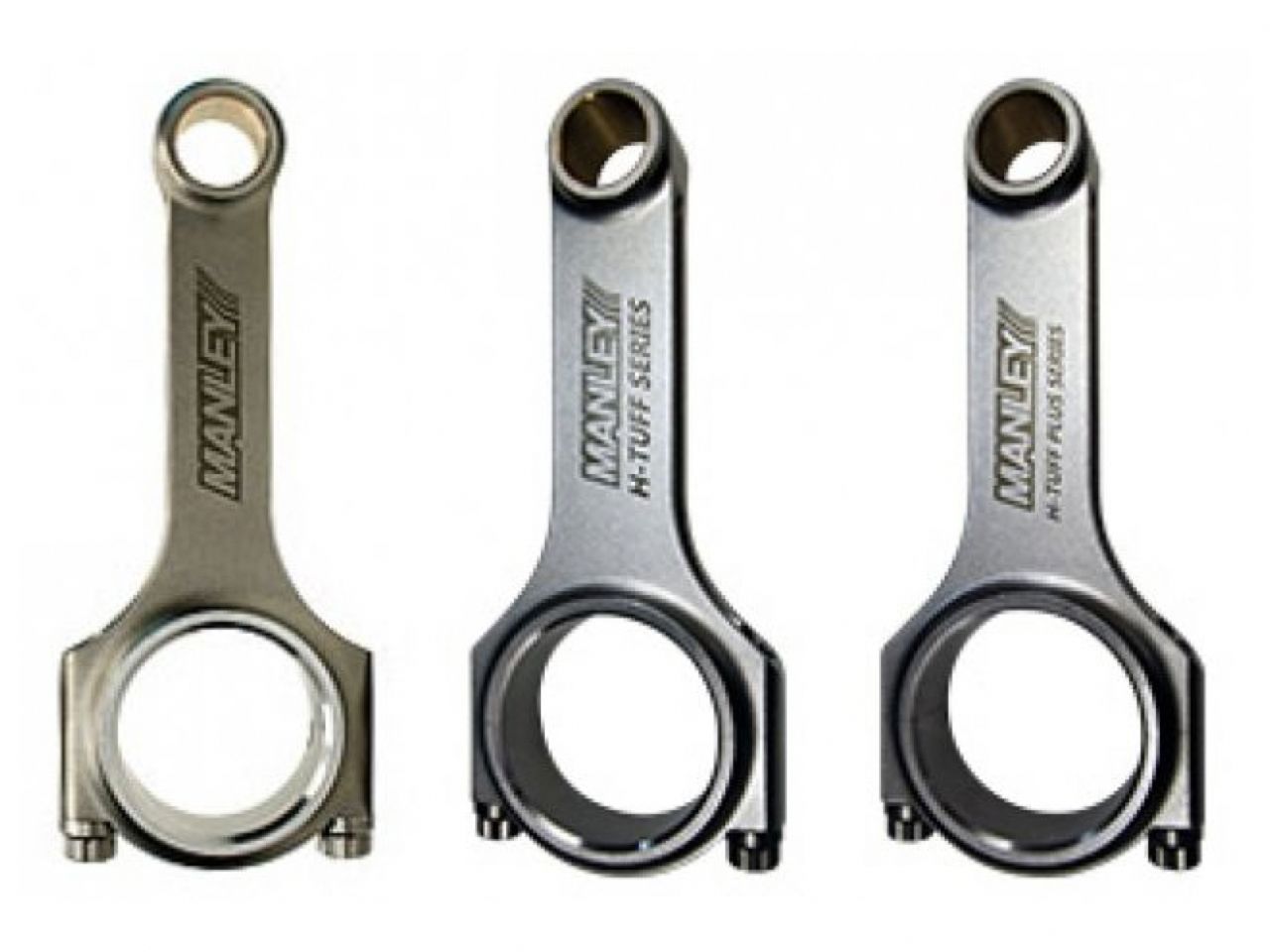

Mazda Speed 3 MZR 2.3L DIDSI Turbo Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.
View full details
- Center-to-Center : 5.927"
- Big End Bore : 2.166"
- Big End Width : .859"
- Pin Diameter : .866" (22mm)
- Pin Bore : .8671"
- Weight : 599 G
