Manley Performance 93-98 Toyota Supra 3.0 H Beam Connecting Rod Set

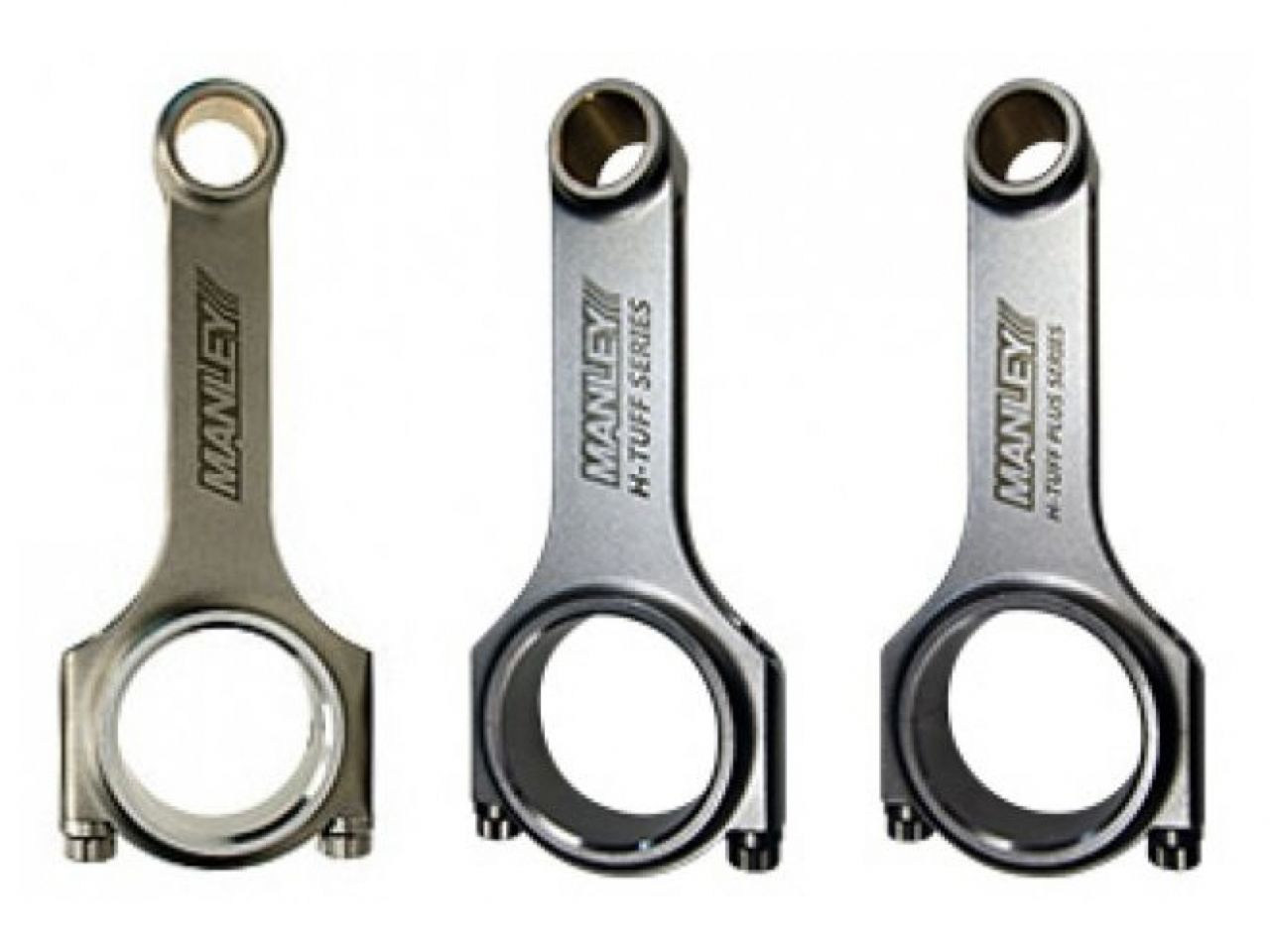

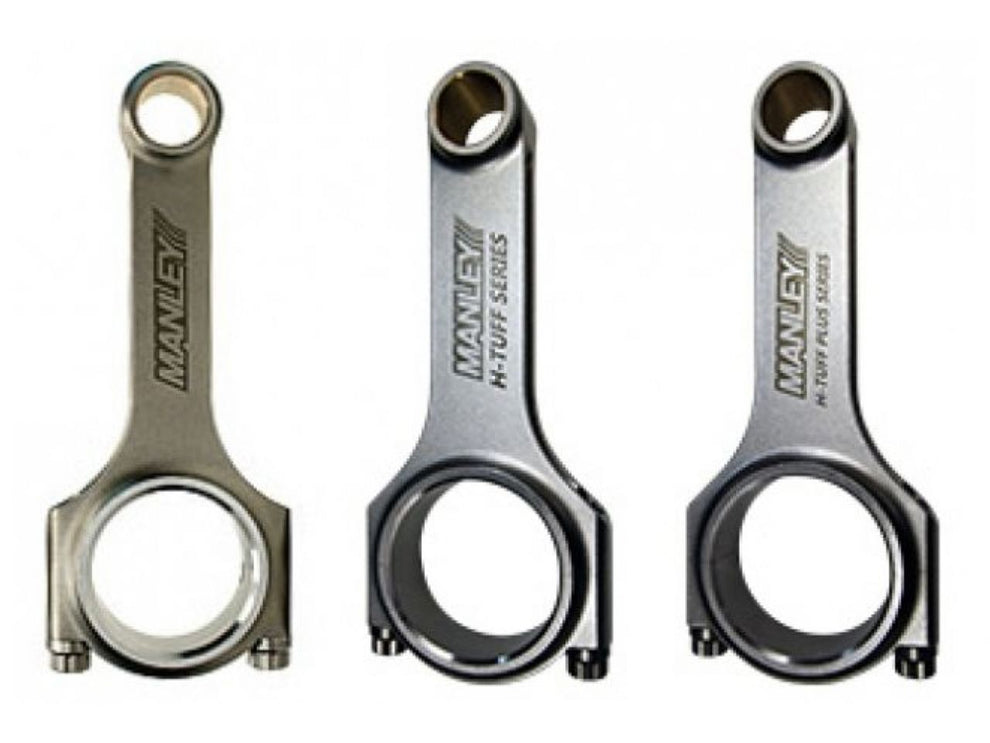

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.
- Center-to-Center : 5.590"
- Big End Bore : 2.167"
- Big End Width : 1.015"
- Pin Diameter : .866" ( 22 mm )
- Pin Bore : .8671"
- Weight : 552g
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993 - 2005 | Lexus | GS300 | Base |
| 2001 - 2005 | Lexus | IS300 | Base |
| 2002 - 2005 | Lexus | IS300 | Sportcross |
| 1992 - 2000 | Lexus | SC300 | Base |
| 1993 - 1998 | Toyota | Supra | Twin Turbo, Base |
