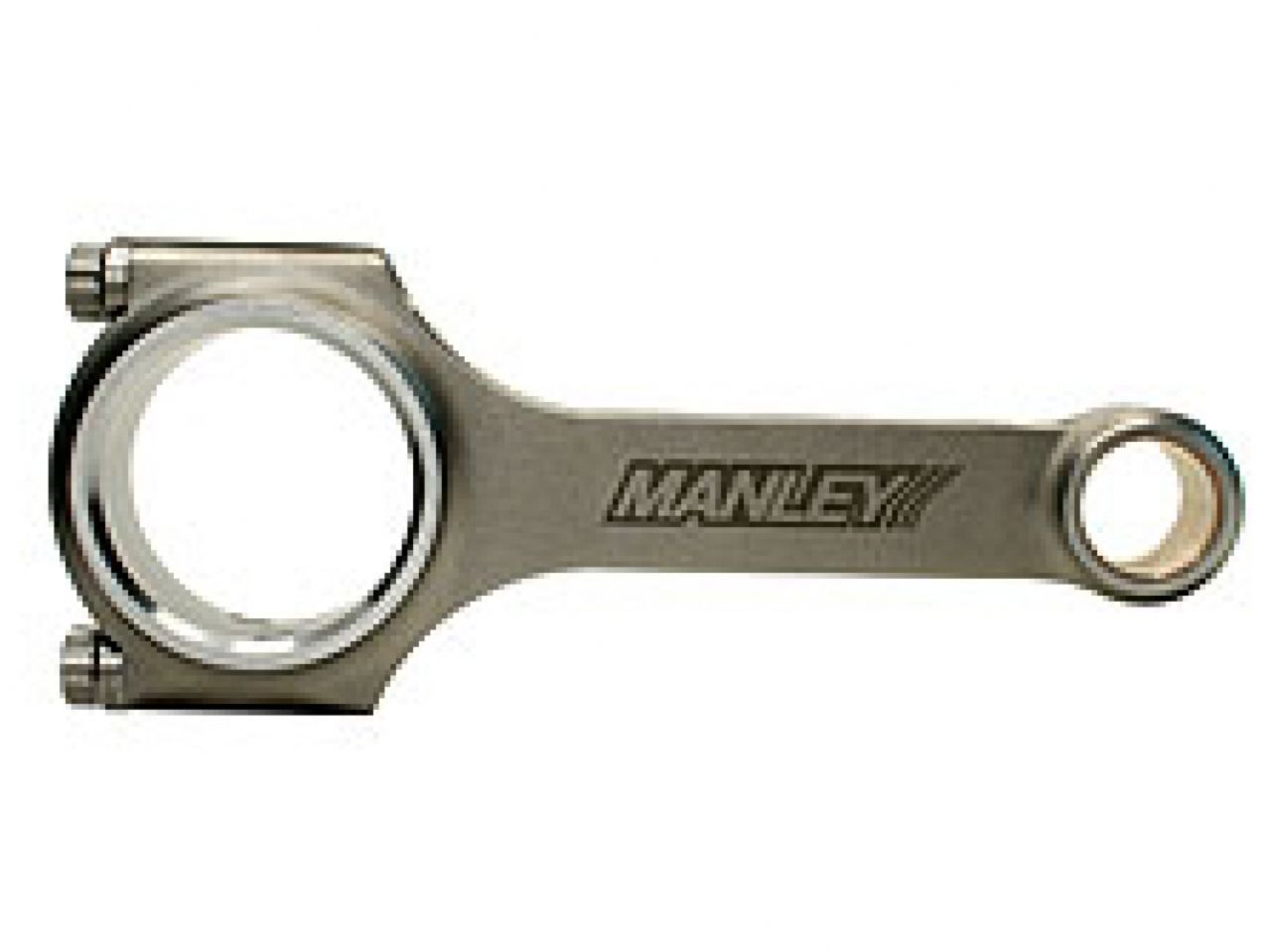

Manley Performance 90+ Integra LS 1.8 non V-Tech DOHC (B18A/B18B) H Beam Connecting Rod S
Manley Performance 90+ Integra LS 1.8 non V-Tech DOHC (B18A/B18B) H Beam Connecting Rod S
sku: 0HY26 | mpn: 14025-4
Regular price
$615.85
Regular price
$914.40
Sale price
$615.85
Shipping calculated at checkout.
Low stock: 10 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000.
- Center-to-Center : 5.394"
- Big End Bore : 1.890"
- Big End Width : .935"
- Pin Diameter : .827" ( 21 mm )
- Pin Bore : .8281"
- Weight : 520g
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994 - 2001 | Acura | Integra | LS, GS-R |
| 1994 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R, GS |
