Manley Performance 90-93.5 Mitsubishi Eclipse GS GST GSX (6 Bolt 4G63 4G63T) H Beam
Manley Performance 90-93.5 Mitsubishi Eclipse GS GST GSX (6 Bolt 4G63 4G63T) H Beam
sku: 0HY1V | mpn: 14021-4
Regular price
$621.60
Regular price
$914.40
Sale price
$621.60
Shipping calculated at checkout.
Low stock: 3 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

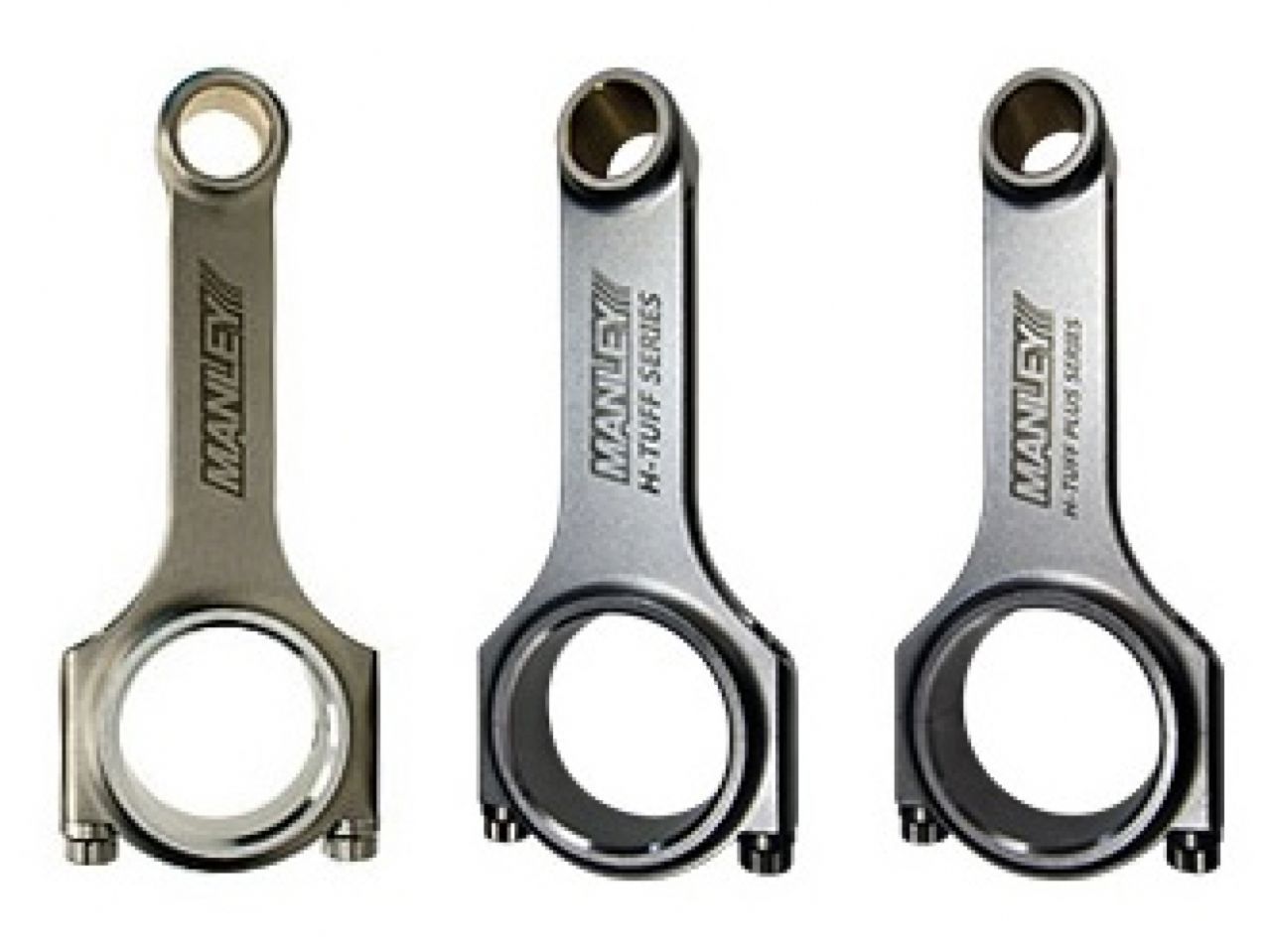

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus. H-Tuff and H-Tuff Plus Series have a heavier beam for higher boost applications.
Specification
- Center-to-Center : 5.905"
- Big End Bore : 1.890"
- Big End Width : 1.115"
- Pin Diameter : .827" (21 mm)
- Pin Bore : .8281"
- Weight : 573
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 1992 | Eagle | Talon | Base, TSi |
| 1990 - 1992 | Mitsubishi | Eclipse | GST, GSX, Base, GS |
| 1990 - 1992 | Plymouth | Laser | RS, Base |
