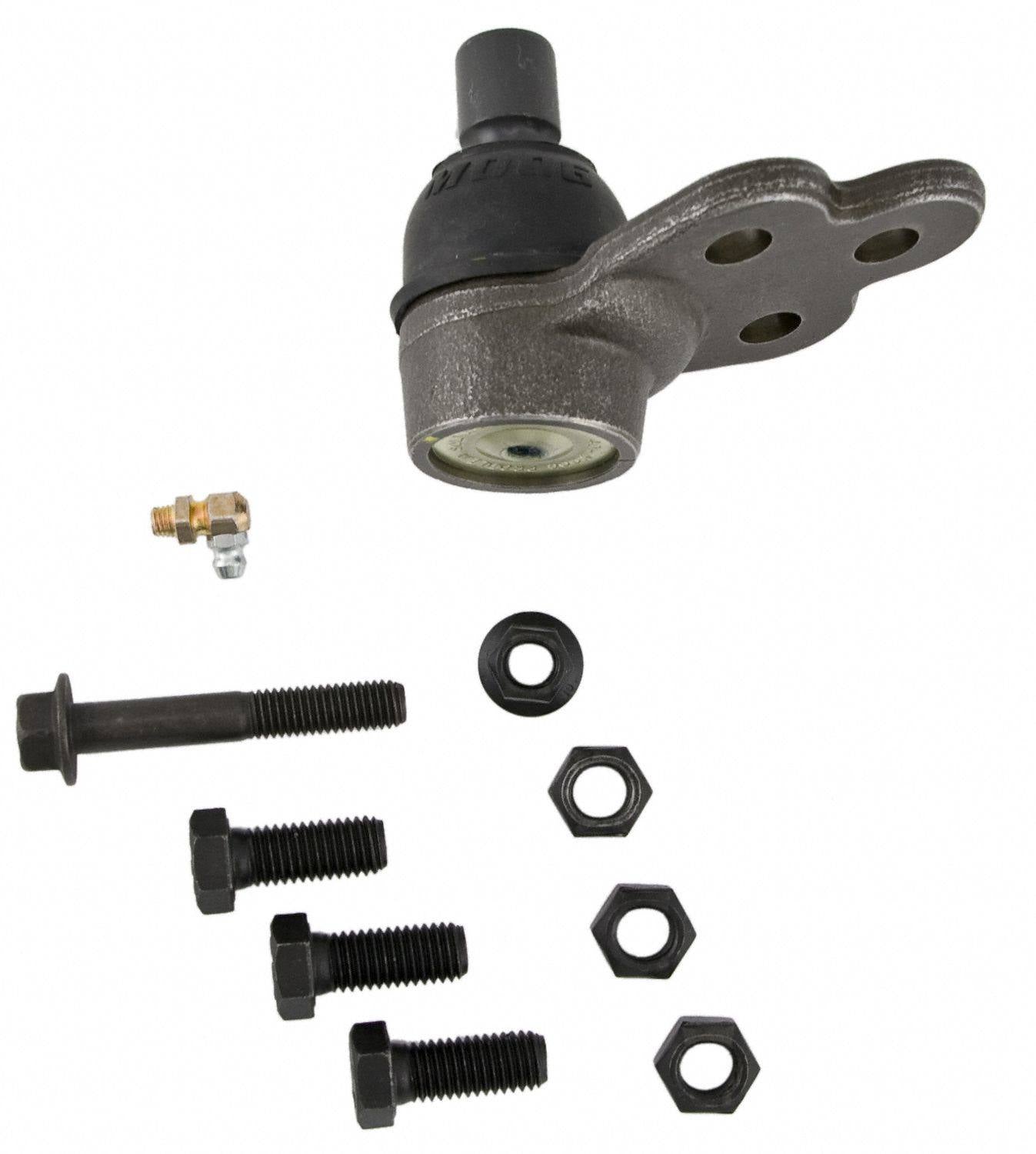

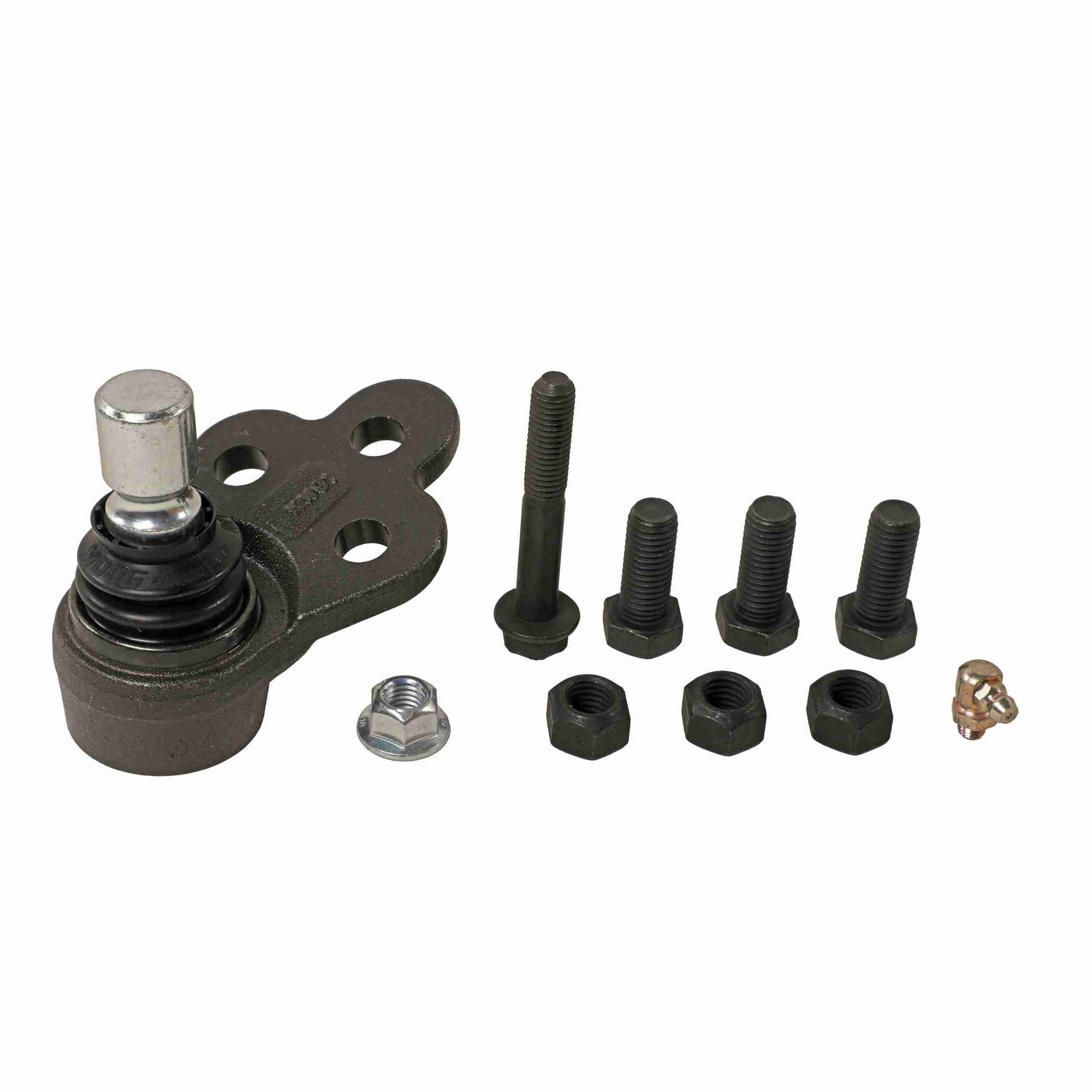

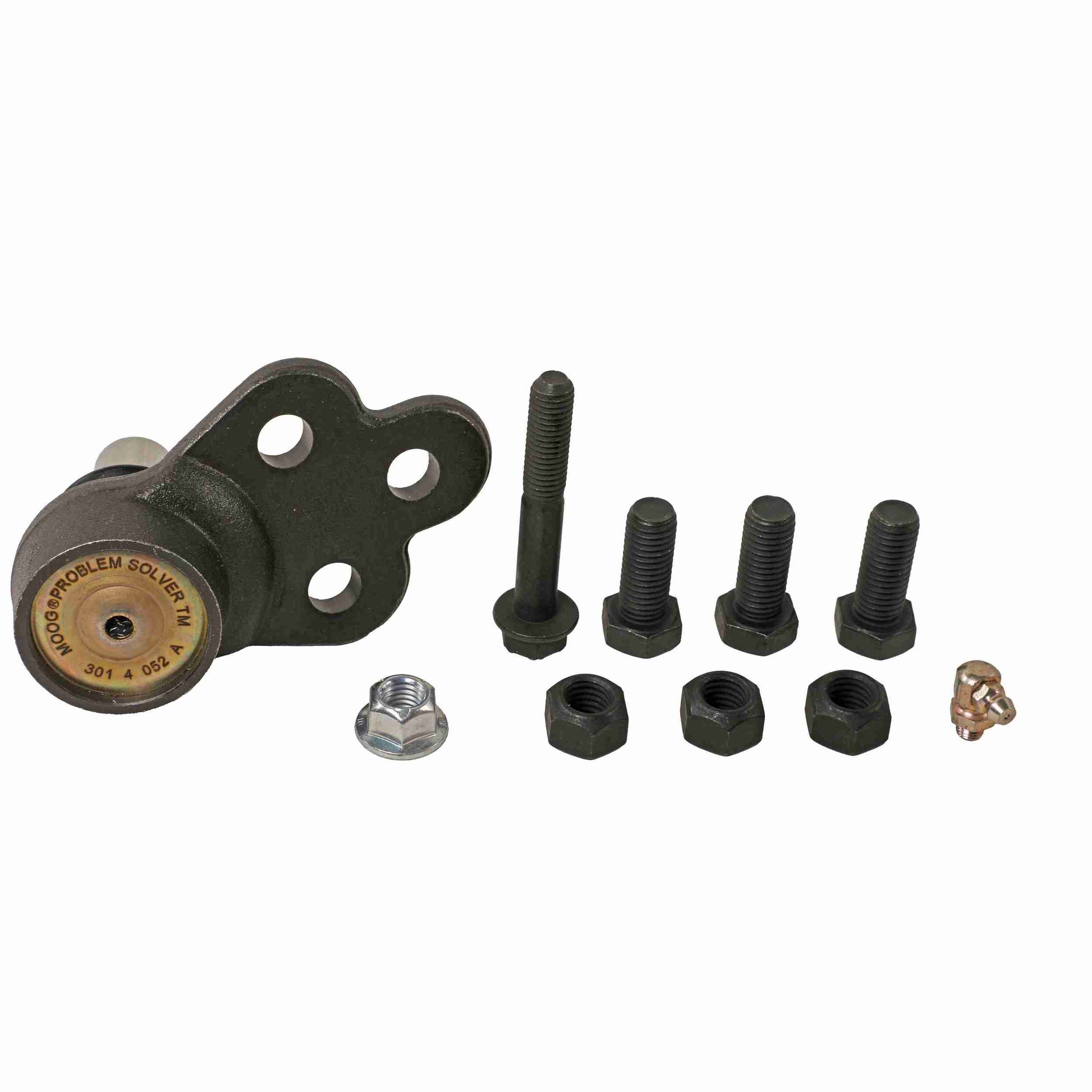

Moog Lower Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
Hardened ball stud made of OE equivalent or better materials to withstand higher loads
Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Premium forged housing with increased cross section of up to 52% more material in key areas
Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants
Specifications
Ball Joint Specifications
Ball Joint Attachment Type: Bolt-On
Mount Type: Bolt-On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: No
Includes Cotter Pin: No
Includes Cotter Pin Hole: No
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Mount Hole Quantity: 3
Includes Washers: No
Adjustable: No
Bolt Length (Inch): 2.550
Bolt Thread Size: M10x1.5
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.340
Length (Inch): 4.370
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Mount Type: Bolt-On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: No
Includes Cotter Pin: No
Includes Cotter Pin Hole: No
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Mount Hole Quantity: 3
Includes Washers: No
Adjustable: No
Bolt Length (Inch): 2.550
Bolt Thread Size: M10x1.5
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.340
Length (Inch): 4.370
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Applications
|
|
|
|
|
|
|
|
|
|||||||||
| Chevrolet | Cobalt | 2010-2005 | Front Lower | 2 | |||||||||||||
| Pontiac | G5 | 2010-2007 | Front Lower | 2 | |||||||||||||
| Pontiac | Pursuit | 2006-2005 | Front Lower | 2 | |||||||||||||
| Saturn | Ion | 2007-2003 | Front Lower | 2 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2010 | Chevrolet | Cobalt | LS, LT, SS, Base |
| 2010 | Chevrolet | Cobalt | LT Team Canada |
| 2006 - 2007 | Chevrolet | Cobalt | LTZ |
| 2008 | Chevrolet | Cobalt | Sport |
| 2007 - 2009 | Pontiac | G5 | LS, Basico |
| 2007 - 2010 | Pontiac | G5 | SE, Base, GT |
| 2005 - 2006 | Pontiac | Pursuit | Base |
| 2006 | Pontiac | Pursuit | SE, GT |
| 2003 - 2005 | Saturn | Ion | 1 |
| 2003 - 2007 | Saturn | Ion | 2, 3 |
| 2004 - 2007 | Saturn | Ion | Red Line |
