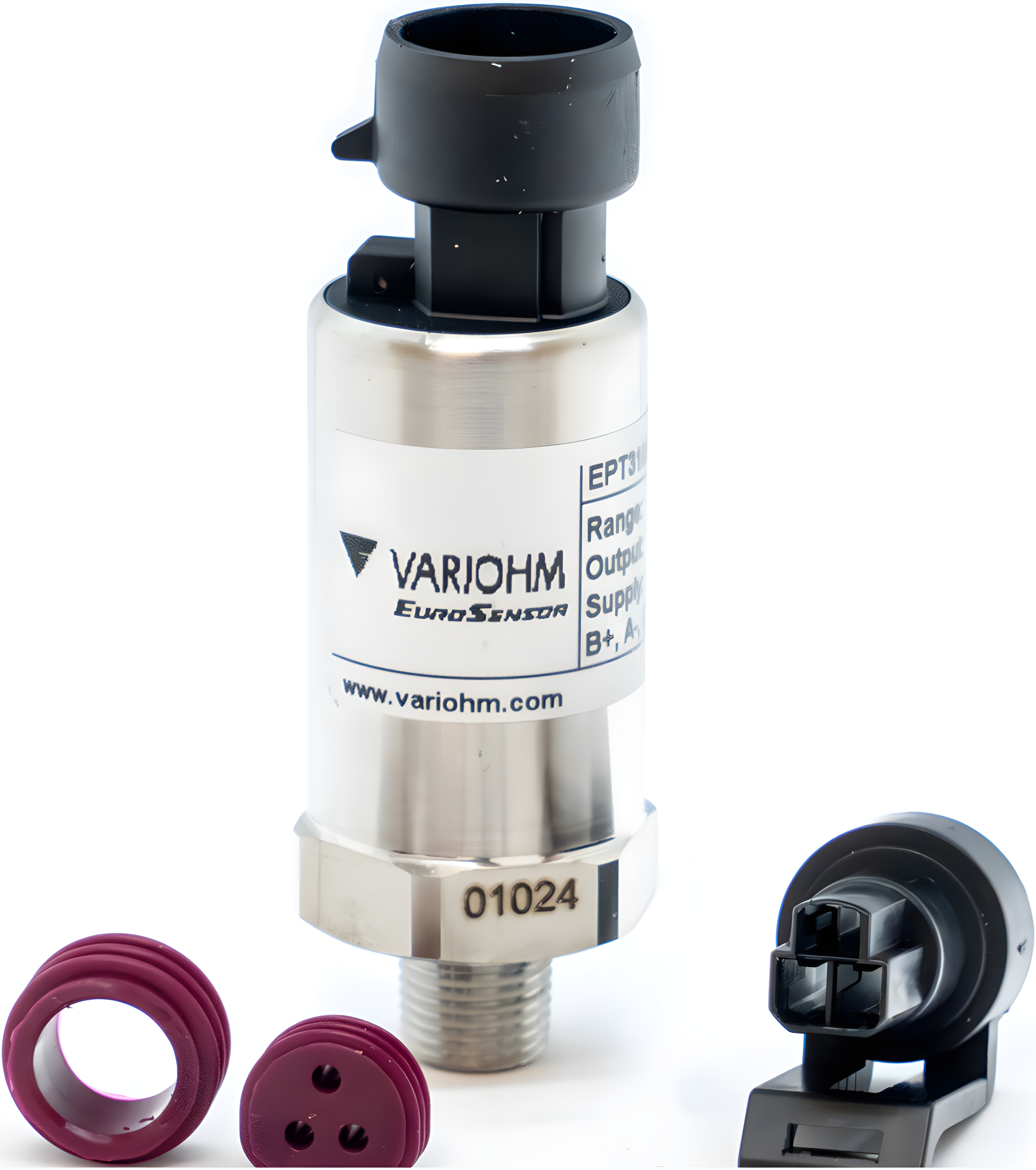

Wiring Specialties LINK MAP Sensor 5 bar Part LINK-101-0295

The 5 Bar MAP Variohm Eurosensor reads up to 4 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 4 Bar (or 58psi) of boost pressure.

• Includes Plug and Pins
• Push wire through connector; crimp on terminal; pull wire/terminal back into connector
• Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 5 Bar’ Calibration
• 0kpa = 0.5v, 500kpa = 4.5v PIN A = 0v PIN B = 5v PIN C = Signal
