Wiring Specialties RX7 Link G4X Plug-In ECU (LINK-219-4000)

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below. Designed for the RX7 series 7-8 13BT.

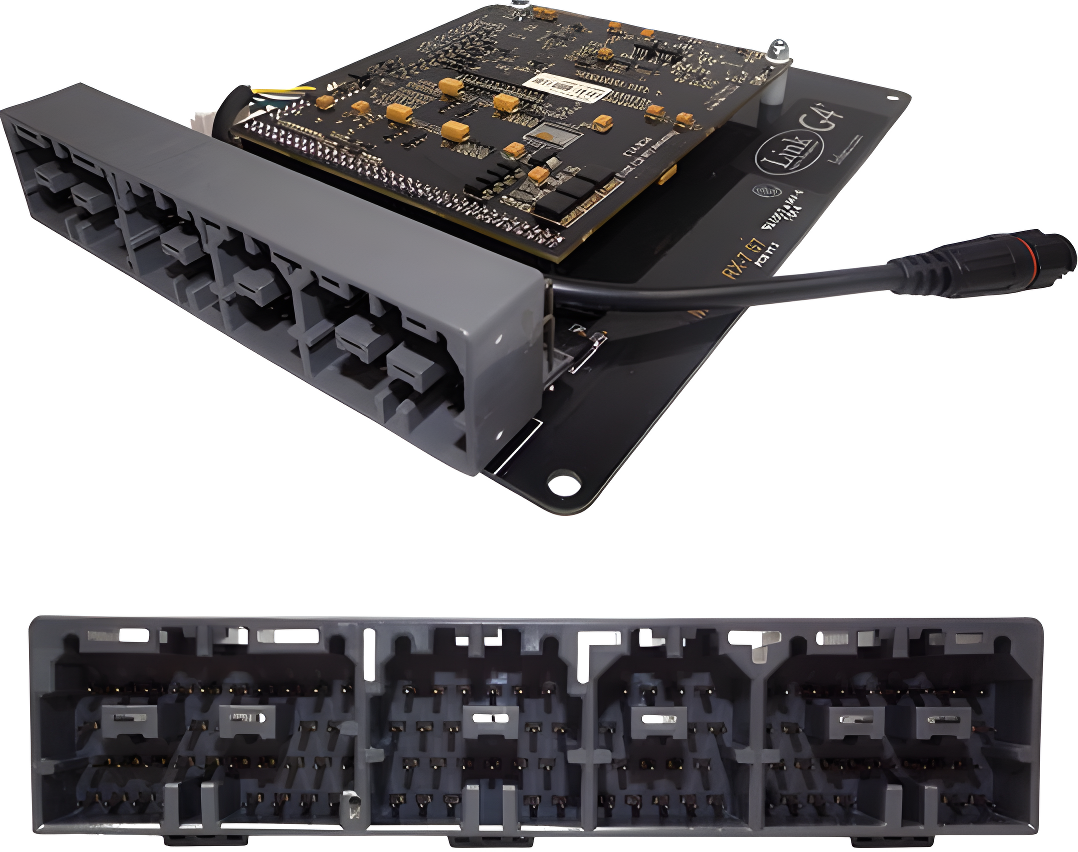

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Check the features tab for I/O expansion options Suitable applications: FD3S Series 7 RX7 FD3S Series 8 RX7 G4X PlugIn Key Features (where applicable):
• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features
• antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune
• automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data logging memory
• Staged injection
• Knock with "windowing" I/O Expansion Options: The following expansion connector inputs/outputs are provided: Expansion Connector 1 Gnd Sensor Ground Only +5V Out Low Current +5V Supply DI8 Digital Input DI7 Digital Input An Volt 5 Analog 0-5V input An Volt 6 Analog 0-5V input An Volt 7 Analog 0-5V input An Temp 4 Temperature sensor input Expansion Connector 2 Ign 8 Ignition 8 Auxiliary Output Ign 7 Ignition 7 Auxiliary Output Ign 6 Ignition 6 Auxiliary Output Ign 5 Ignition 5 Auxiliary Output An Volt 9 Analog 0-5V input An Volt 8 Analog 0-5V input DI10 Digital Input DI9 Digital Input
