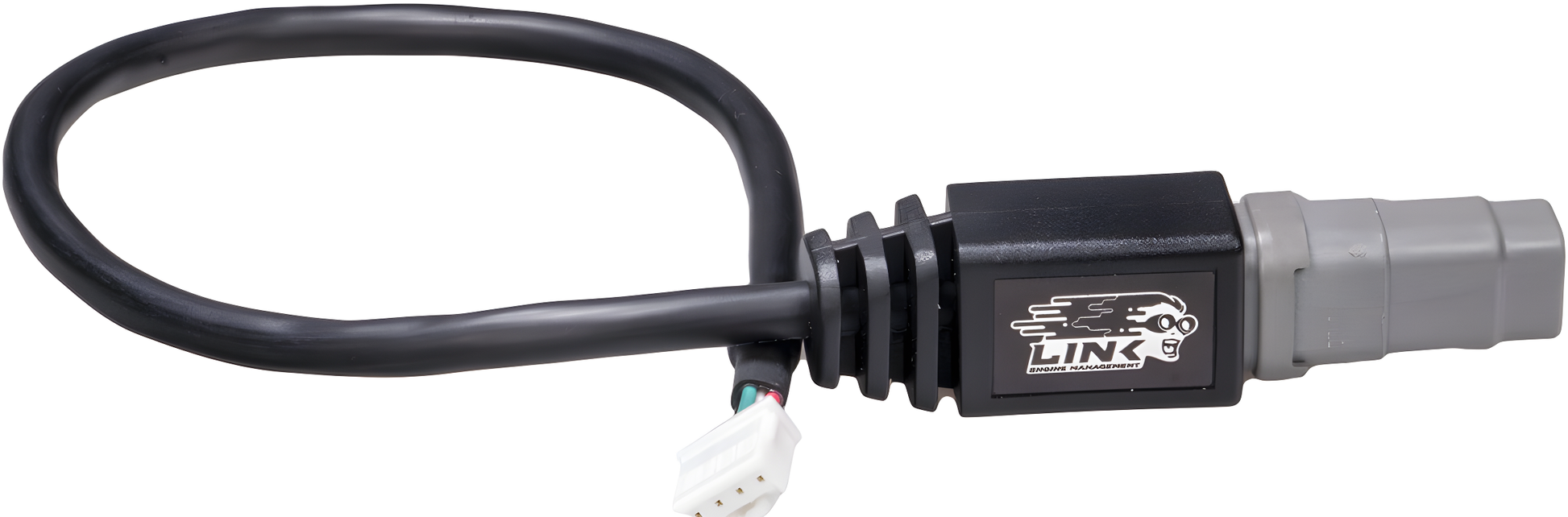

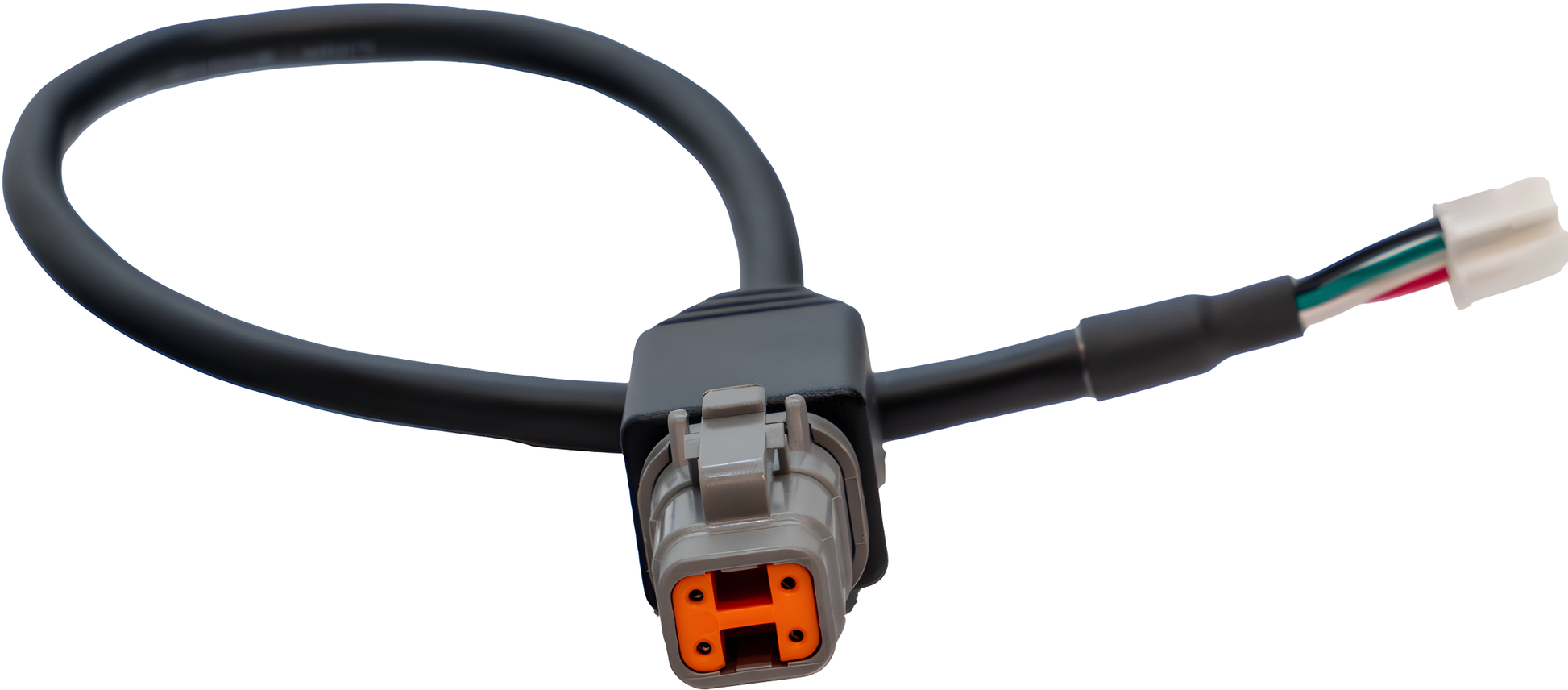

Wiring Specialties SR20DET S13 Link CANJST4 Connector Cable 4pin Standalone (Part LINK-101-0198)

Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories. Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A. Note: there are two versions of this cable; both function the same. Compatible PlugIns: 219-4000

• Plugin ECU G4X Mazda RX7 Series 7-8 (V1.4 onwards) 228-4000
• PlugIn ECU G4X Subaru WRX V5-6 233-4000
• PlugIn ECU G4X Honda S2000 AP1 235-4000
• PlugIn ECU G4X Toyota JZX90X 237-4000
• PlugIn ECU G4X Honda HC20X Type-R DC5/RSX 238-4000
• Plugin ECU G4X Subaru WRX11 239-4000
• Plugin ECU G4X MX5NB2X 240-4000
• Plugin ECU G4X MX5NB1X Specs DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
