Specifications
Product details shared across all variants.
- Product type
- Instrument Cluster
- Category
- Motor Vehicle Sensors & Gauges
- Shipping dimensions (L × W × H)
- Shipping weight
- 5.5 lb
Billable shipping weight; may include dimensional weight.

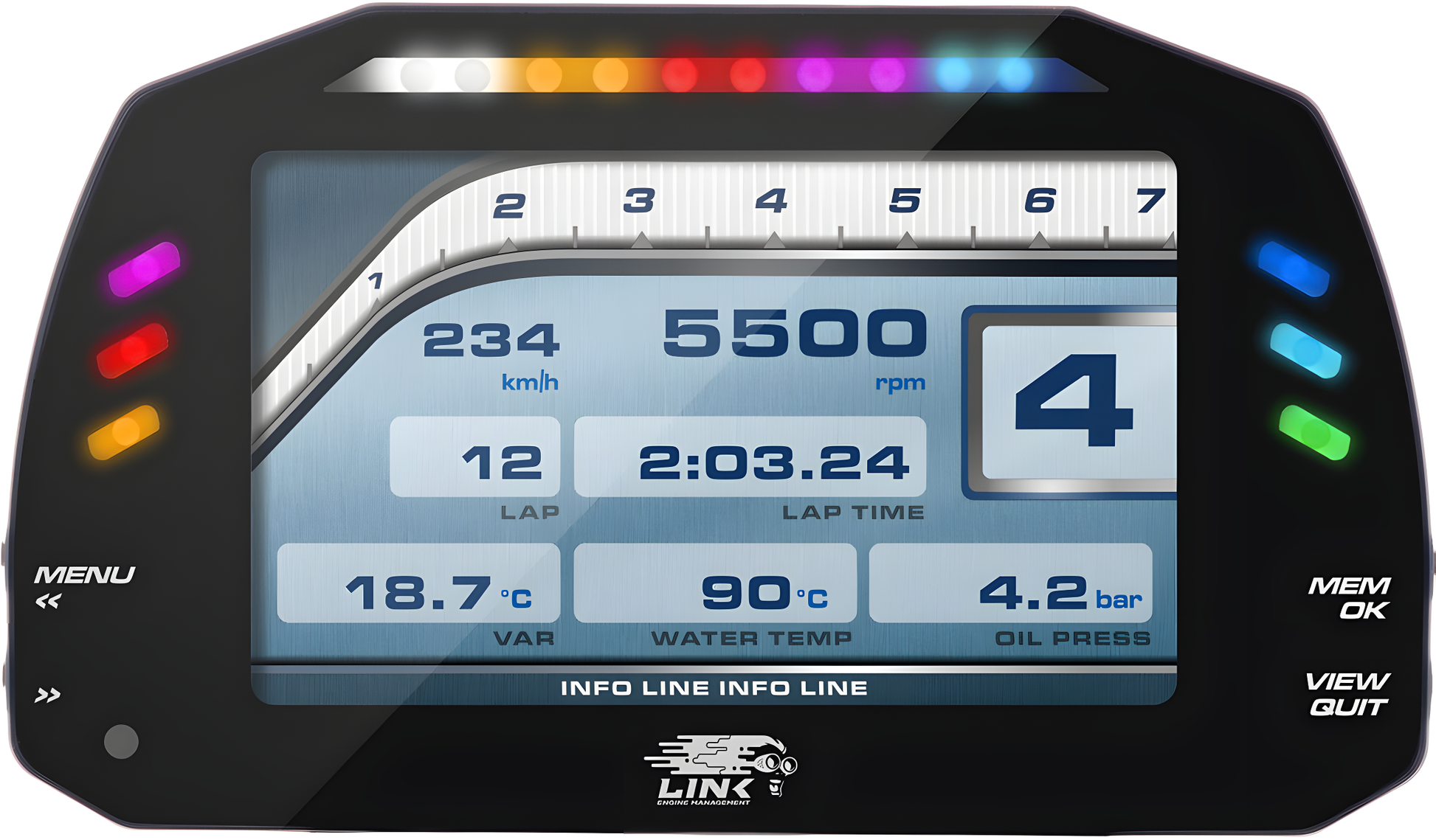

Link MXS Strada 5" Dash, powered by AIM. The Link MXS Strada Race Edition is a full color, 5-inch dash display with 10 RGB shift lights and six customizable alarm LED lights. The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECU's. This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for street purposes. This dash is also available in a 7” version. The Link MXS Strada Race Edition dash features customizable shift lights, flexible alarms and a high contrast 5” TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display. The 10 multi-colored RGB shift lights on the MXS Strada can be customized to your liking to define the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colors and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities. The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more. The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box. To use with plugin ECU’s
- CANPCB and CANF connectors will be required (Purchased separately). The dash can be personalized via Link ECU PC Link and Aim Technologies Race Studio 3 software. Included in the box: Link MXS 1.2 Strada USB cable 14 pin standard wiring 23 pin connector + contacts Software installation CD GPS module available separately. Display 5” TFT Resolution 800x480 pixels Contrast 600:1 Brightness 700cd/m2
- 1,100 Lumen Ambient light sensor Yes Alarm LEDs 6 RGB freely configurable Shift lights 10 integrated freely configurable RGB LEDs CAN connections 2 ECU connections CAN Analog inputs 8 fully configurable, max 1,000 Hz each Digital inputs 1 speed input, coil RPM input Digital outputs 1 (1 A max) Second CAN Yes Body Anodized Aluminum Pushbuttons Metallic Connectors 2 AMP connectors + 1 Binder connector Power consumption 400 mA Dimensions 169.4x97x23 mm Weight 480 g Waterproof IP65
