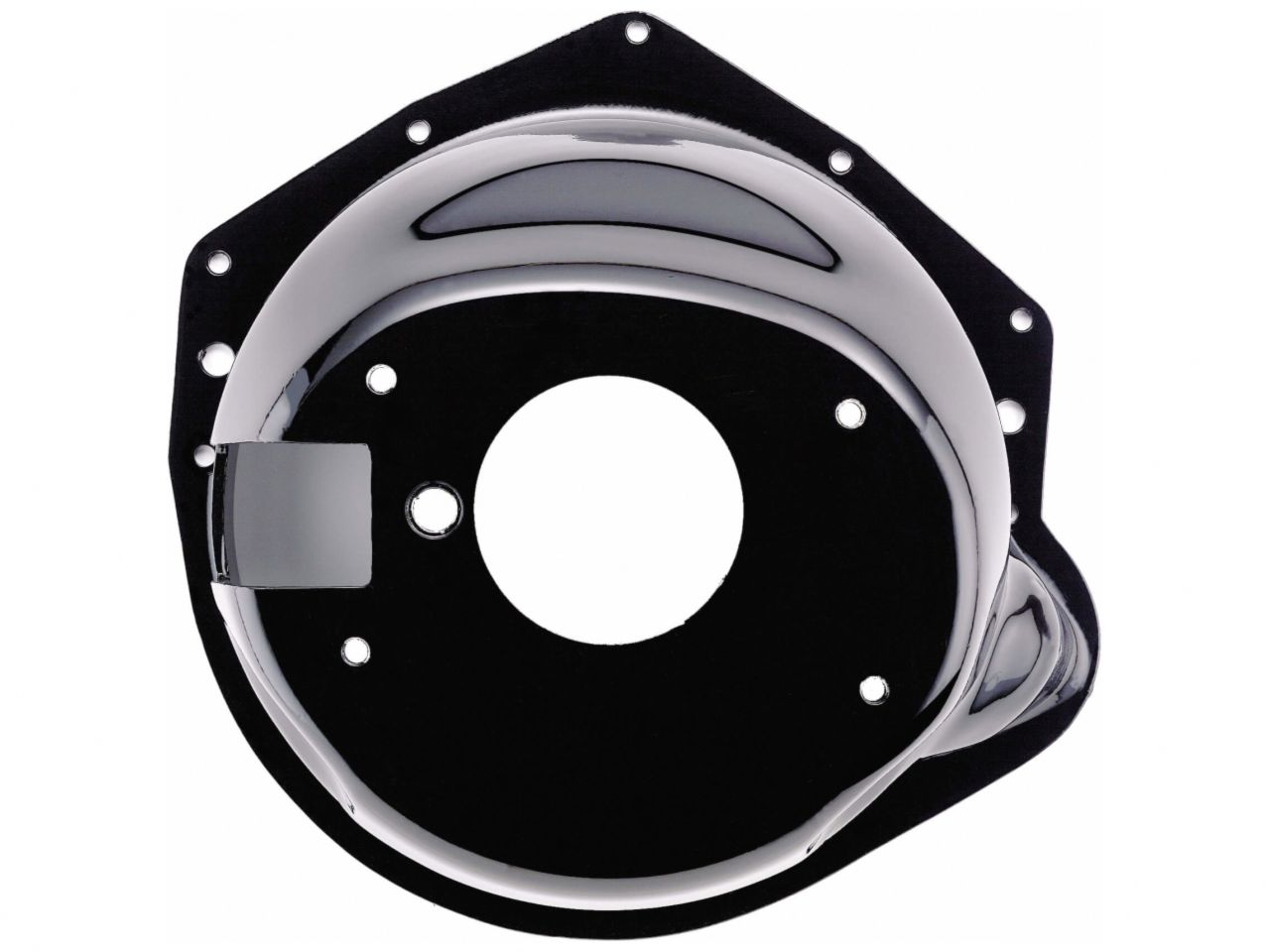

Lakewood Trans Adapter Chevrolet

SKU: 0HE2Y | MPN:  77-150
Sale price$864.94 USD
Sold out

The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is designed to fit GM full and midsized vehicles from '58 - '87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.

Features:

  • Designed For Mechanical Fork Linkage
  • Bellhousing Depth: 6.312 in
  • Clutch Fork Opening: 2.5 In X 3.75 In
  • Transmission Bore Diameter 4.684 In
  • Hydro formed Construction
  • Made In The USA
  • Works with 153 or 168 Flywheel

Specs :

Brand : Lakewood
Clutch Diameter : 11"
Clutch Operation : Hydraulic or GM Mechanical
Color : Black
Engine : Chevy Big Block
Chevy : Small Block
Flywheel : 153/168 Tooth
Height : 6.3"
Material : Steel
SFI Certification : NONE
Trans. Bore Diameter : 4.685
Transmission : BorgWarner
: BW
: Muncie
: Saginaw
: T10
: TKO
: Tremec
Weight : 32Lbs
Part Number : 77-150
