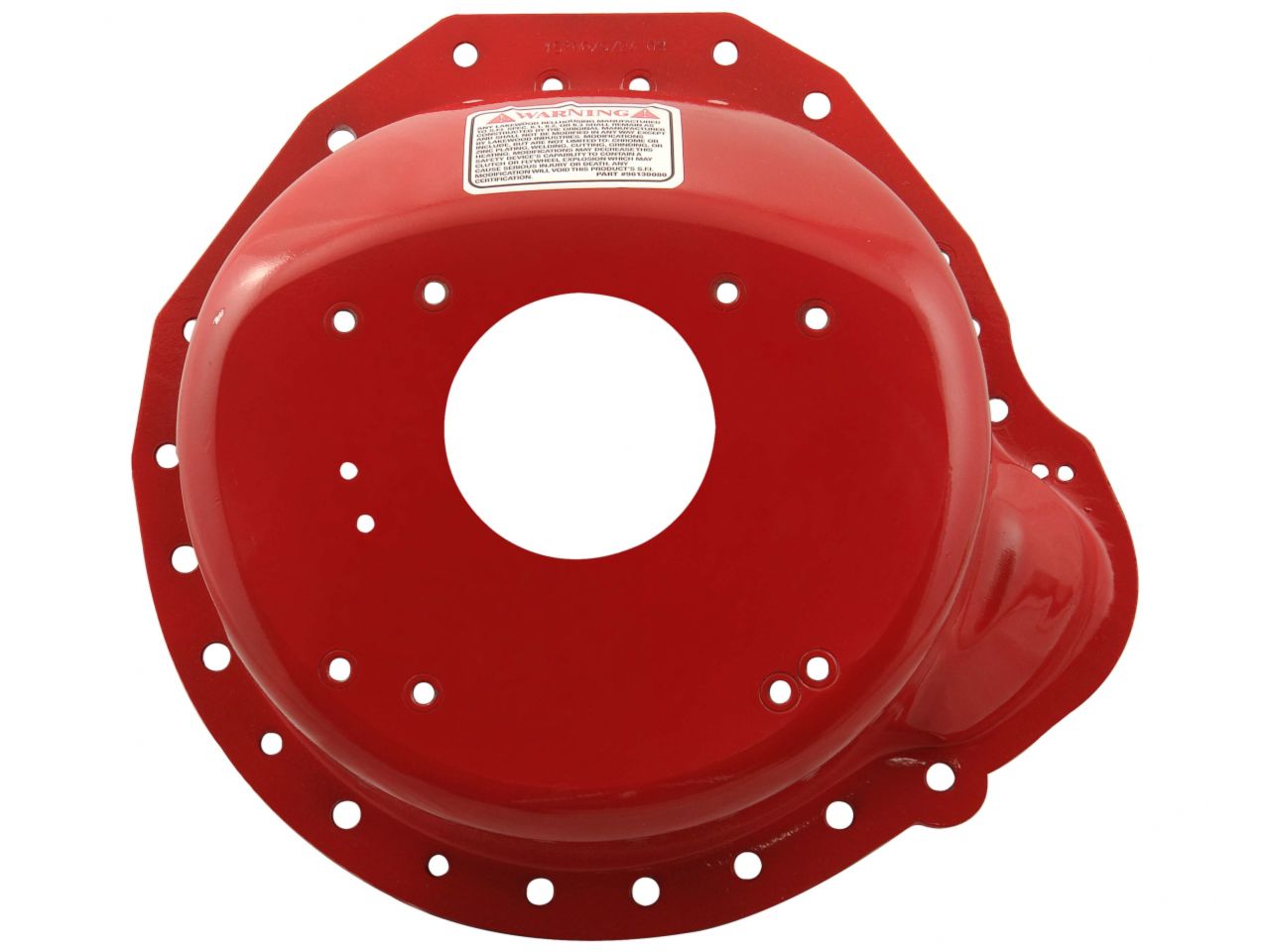

Lakewood BELLHOUSING, FORD 289-351
Bellhousing - Small Block Ford
Perfect fit for Top Loader, BW T-10, and Tremec TKO transmissions.
The Lakewood 15200 bellhousing connects Ford small block engines to Ford toploaders, Borg Warner T10, and Tremec TKO transmissions. This bellhousing is hydro formed to fit most Ford chassis. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The Lakewood 15200 comes complete with engine block plate and Grade 8 mounting hardware. Note: (Transmission Mounting Bolts Not Included)
Features:
- Designed For Mechanical Linkage
- Bellhousing Depth: 6.361 in
- Clutch Fork Opening: 3.00 In X 2.37 In
- Includes 3 Retainer Rings for Various Transmissions
- Hydro formed Construction
- Includes Grade 8 Hardware
- S.F.I. 6.1 Certification
- Made In The USA
- Fork Bracket and Pivot Ball included
Clutch Diameter: 11"
Clutch Operation: Mechanical, Pull Cable or Hydraulic
Color: Red
Engine: Ford 289, Ford 302, Ford 351C, Ford 351W, Ford Small Block
Flywheel: 157/164 Tooth
Height: 6.361
Material: Steel
SFI Certification: 6.1
Trans. Bore Diameter: Universal 4.685/4.850/4.910/5.120
Transmission: BWT10, Ford Toploader, T5 Mustang, TKO 500/600 Ford, TR3550, Tremec TKO
Weight: 44.8
Lakewood BELLHOUSING, FORD 289-351
Sale price$1,252.44 USD
