KW Suspension KW Hydraulic Lift System (HLS) Porsche 911 2005-2011 19271415

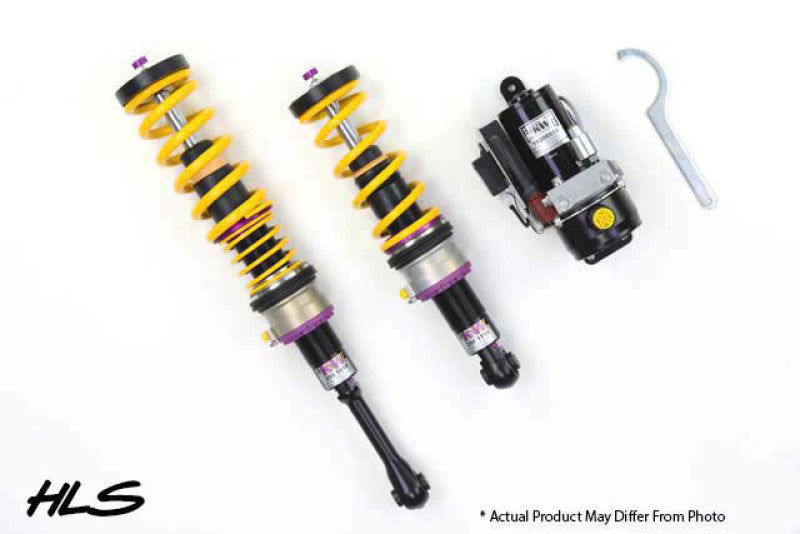

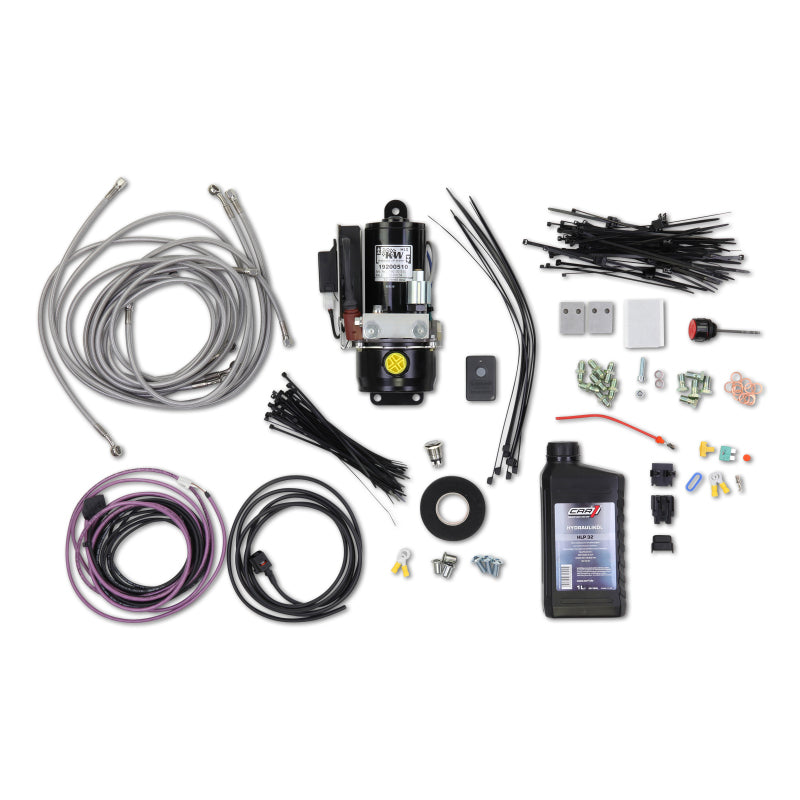

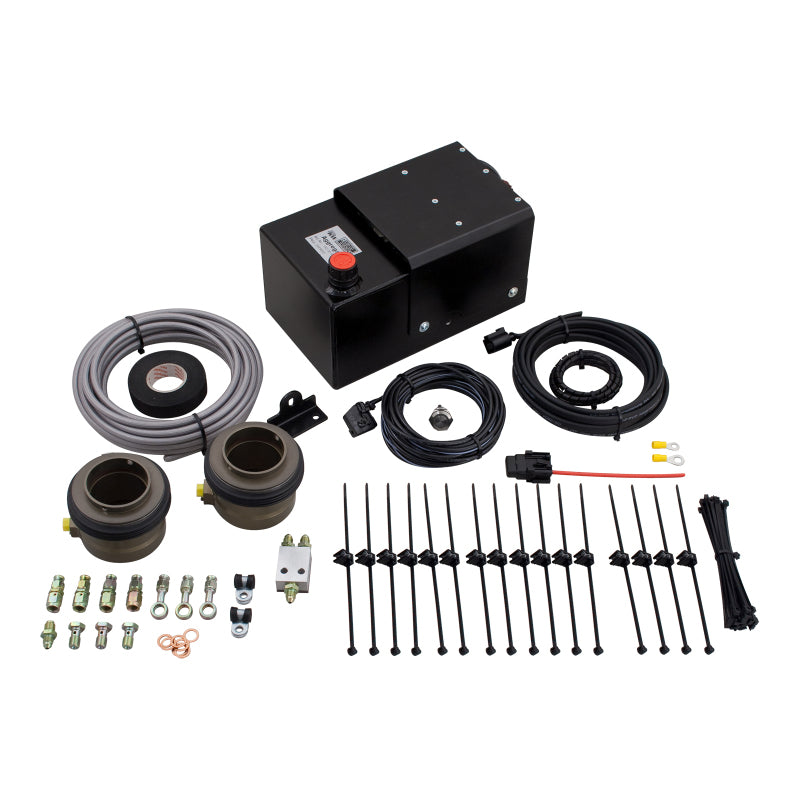

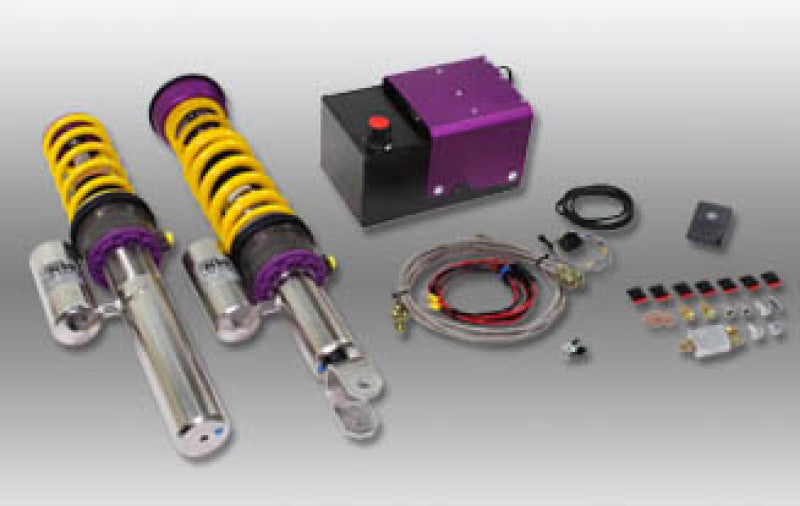

KW Hydraulic Lift System (HLS) Porsche 911 2005-2011
The HLS provides additional road clearance for lowered vehicles. When expanded, a range of up to 45 mm of lift is produced, thereby helping sport cars avoid road clearance difficulties such as speed bumps, road construction, etc. KW HLS is available as vehicle specific solution or individual conversion kit depending on the car model.

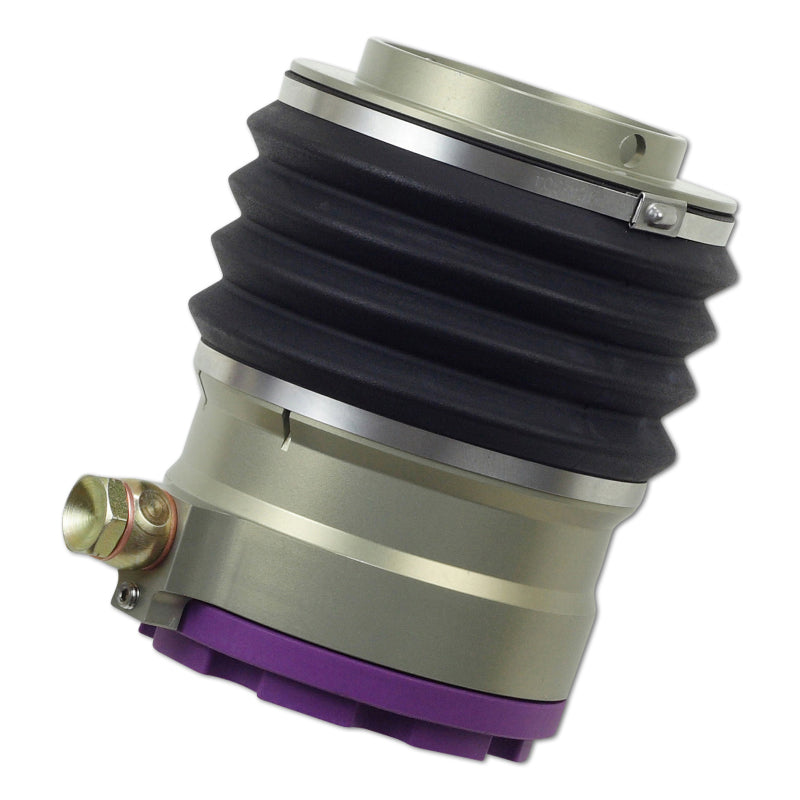

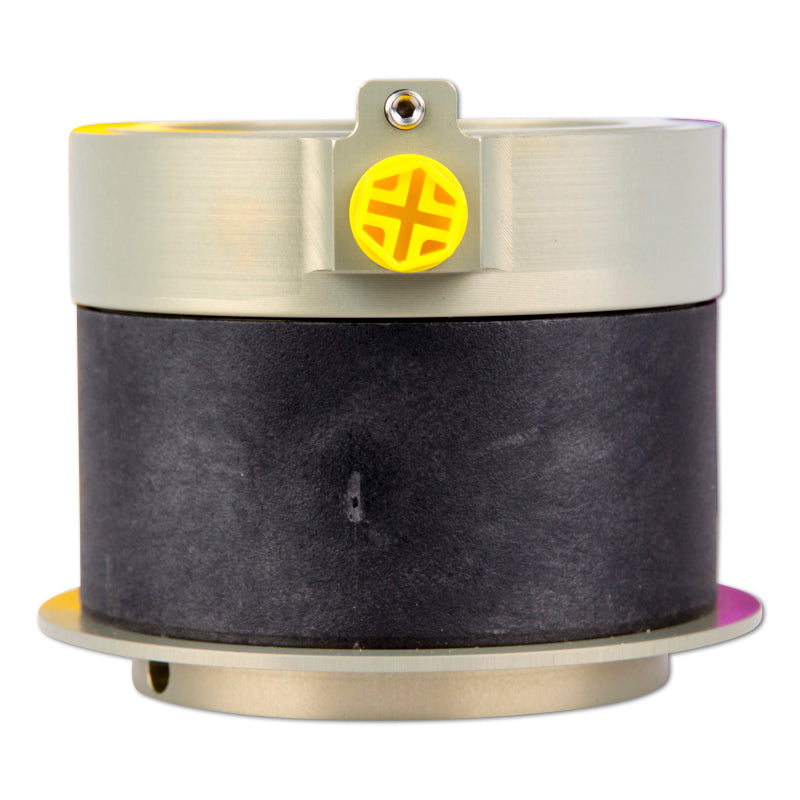

HLS is available in two different versions: HLS 2 which is fitted to the front axle and HLS 4 which can be attached to the front and rear axle and allows lifting the entire vehicle. The hydraulic cylinder unit is located on the coilover body between spring perch and spring. The advantage of a hydraulic system is that there is no compression (motion) of the extended cylinder unit (resulting in no unwanted additional suspension movement) while driving.

Vehicle Fitments:

Year	Make	Model	Submodel
2006 - 2012	Porsche	911	Carrera 4
2012	Porsche	911	Carrera 4 GTS
2011 - 2012	Porsche	911	Carrera GTS
2005 - 2011	Porsche	911	GT2, GT3
2007 - 2011	Porsche	911	GT3 RS
2011	Porsche	911	Speedster, GT3 RS 4.0, GT2 RS
2005	Porsche	911	Targa
2007 - 2012	Porsche	911	Targa 4S, Targa 4
2005 - 2012	Porsche	911	Turbo, Carrera 4S, Carrera S, Turbo S, Carrera
