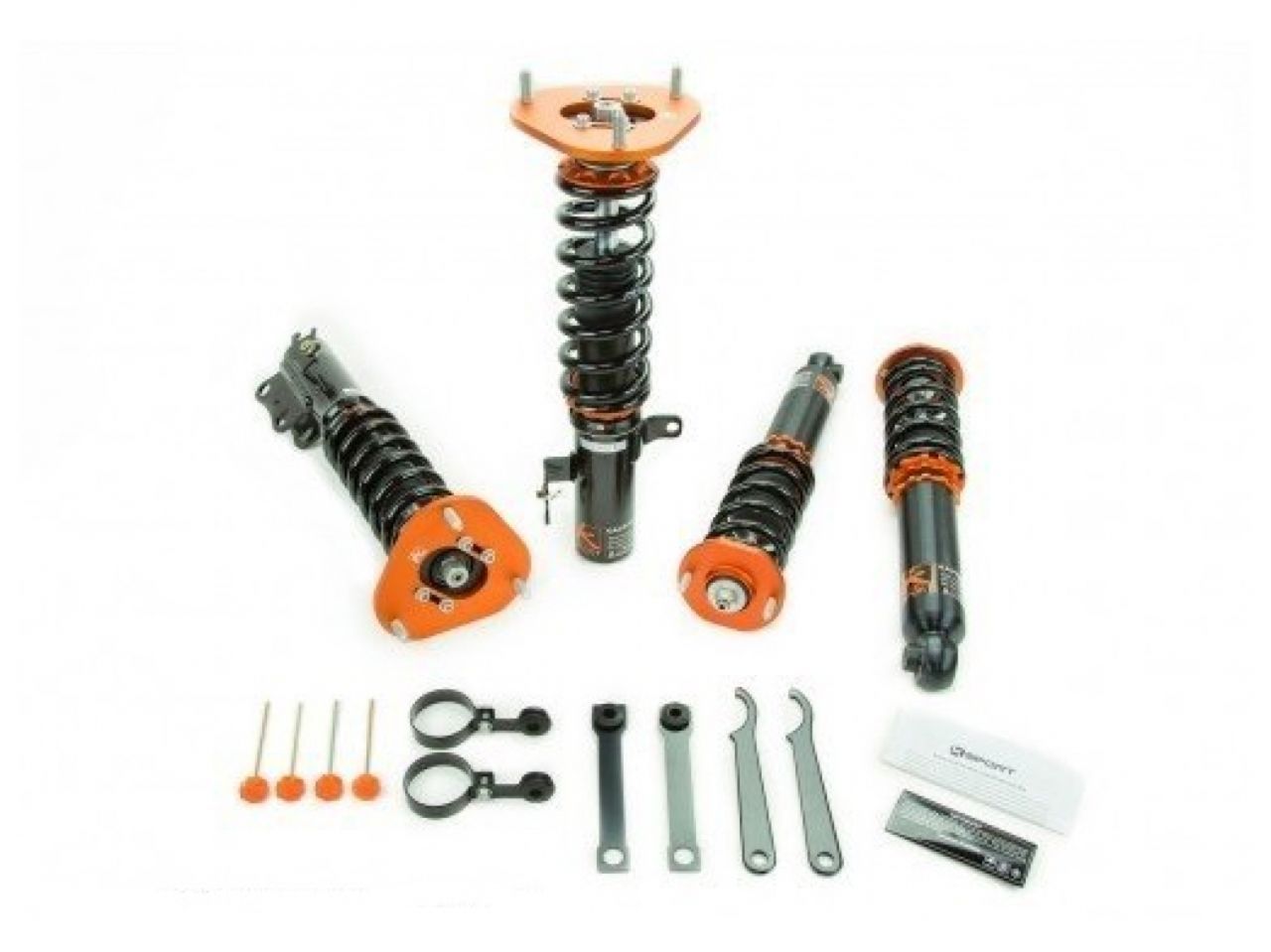

Ksport Kontrol Pro Damper System: (09-16) Volkswagen Tiguan - AWD

Ksport Kontrol Pro Fully Adjustable Coilover Kits provide the ultimate in suspension technology for your vehicle, both on the street or at the track. 36 levels of damping adjustment allow fine tuning of the damper to suit both handling and comfort needs. The damping adjustment alters compression and rebound simultaneously, for more effective and user-friendly setup changes.

Features:

36-Way Adjustable Damping
All Ksport coilovers offer 36 levels of damping which allow you the ability to perfectly dial in your coilover kit. Set damping to full soft for a nice comfortable cruising setting for normal driving.

Collars and Upper Mounts Made from 6061 Aluminum with T6 for Increased Hardness
Our spring perches, locking collars, top mounts and some lower mounts are made from high quality 6061 aluminum. Benefits include excellent strength and aluminum helps reduce weight.

Adjustable Spring Perch for Height Adjustment
Some vehicles have a separate rear shock and spring. In the coilover industry we call this a “hi-low kit”. In this case you will adjust ride height via the spring. Adjustable lower mounts on the rear shock aid in setting the correct shock stroke. Vehicles with this type of set up can still go as low or lower than true coilovers.

Adjustable Lower Mount Allowing Maximum Suspension Travel
Most of our coilovers feature the ability to adjust your ride height without affecting the shock and spring travel. This way you can set your desired ride height without having to worry about bottoming out the shock.

Camber Adjustment on Many Models
Many of our applications that have pillowball upper mounts also have camber adjustability. This is extremely helpful when you need to dial in your camber for vehicle alignment purposes. This also eliminates the need for a separate camber kit. NOTE: Camber adjustment is not available on all models with pillowball upper mounts.

Pillowball Top Mount for Increased Steering Feel
Many of our applications for vehicles with McPherson type suspension will have pillowball upper mounts. Our patented new bearing design helps combat noise while turning unlike many other coilovers on the market. Steering feel and response is improved with pillowball upper mounts.

Monotube High Pressure Design Reduces Oil Leakage
All of our coilovers use Monotube shocks which dissipate heat better, allows finer damping adjustment and requires a more expensive design process compared to twin tube shocks.

Electroplated Body for Added Protection from Corrosion and Rust
To help prevent corrosion and rust from the elements of nature, all our coilovers are electroplated with zinc. We also include an anti-rust paste packet with our kits that can be applied to certain key areas of the coilover for added protection.

Dust Boot to Protect Damper Seal
Dust boots are standard on all coilovers. We also integrate the bump stop inside the dust boot. This is more efficient and is less likely to crumble to pieces and deteriorate like other company’s designs.

Additional Information

• Weight: 55 lbs
• Dimensions: 28 × 17 × 8 in
• Spring Rate Fr kg/mm: 12
• Spring Rate Rr kg/mm: 6.3
• Top Mount Front: P/U
• Top Mount Rear: OEM
