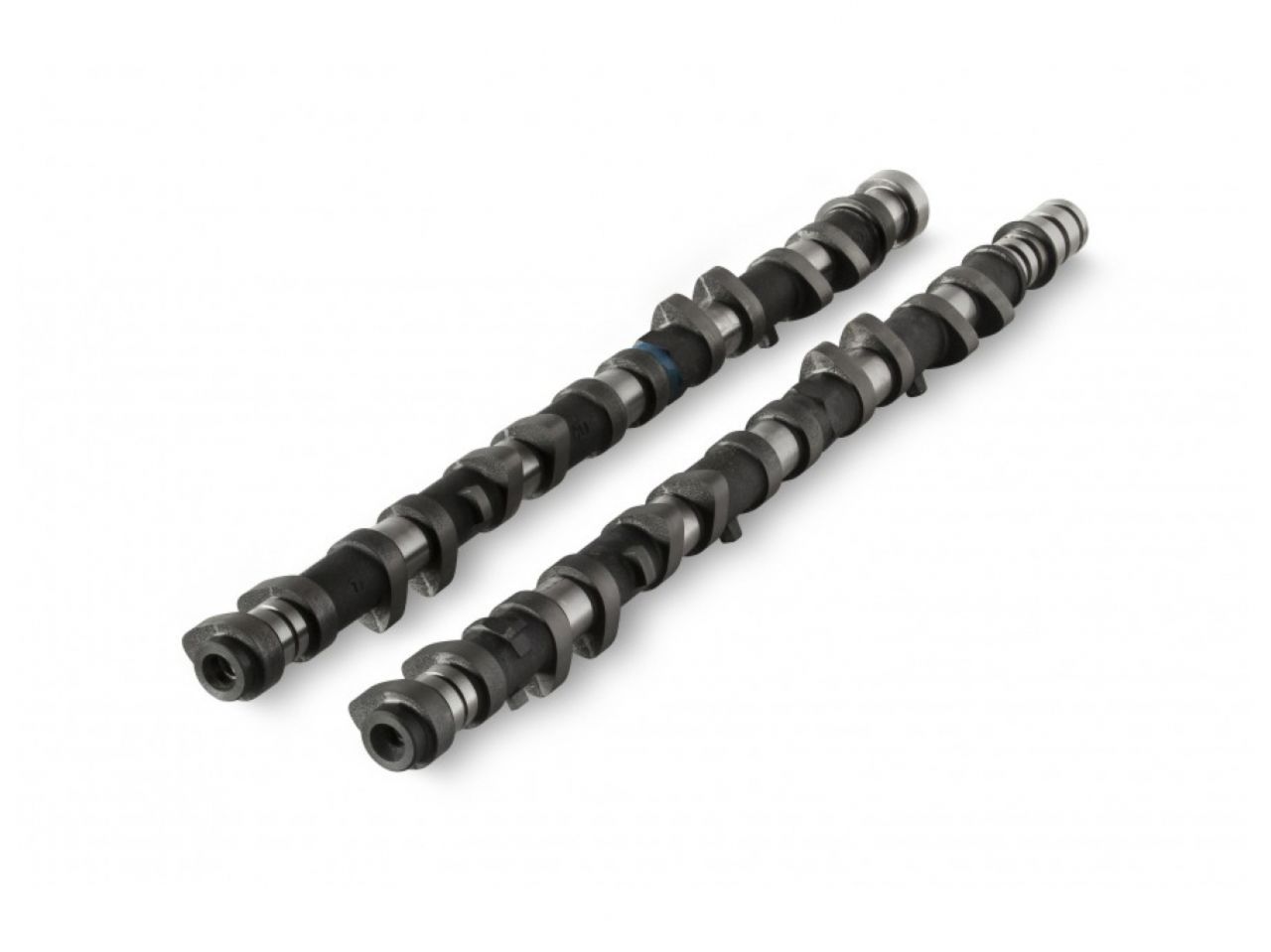

Kelford Cams Toyota 2jz Vvti High Performance Camshafts. 264/272 Duration, 9.65mm

New Range Of High Performance Camshafts.264/272 Degrees advertised duration. 9.65mm/9.65mm lift.264/272 Degree street / strip or track day cams for good response and midrange power. Suits up to 30lb boost and 8000 RPM with our recommended valve spring.

Engine Make:		Engine Model:				Part Number:
TOYOTA		2JZ VVTi				V202-C
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			9.90mm	Exhaust:	9.90mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			9.65mm	Exhaust:	9.65mm
Advertised Duration @	0.10mm	Intake:			264	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:			228	Exhaust:	232
Timing @	1.00mm VALVE LIFT	IVO:			EVO:	52 BBDC
IVC:			EVC:	0 TDC
Suggested Centre Lines:	Intake:			VARI	Exhaust:	116
VALVE	Lift @ TDC	Intake:			Exhaust:	0.94

Vehicle Fitments:
