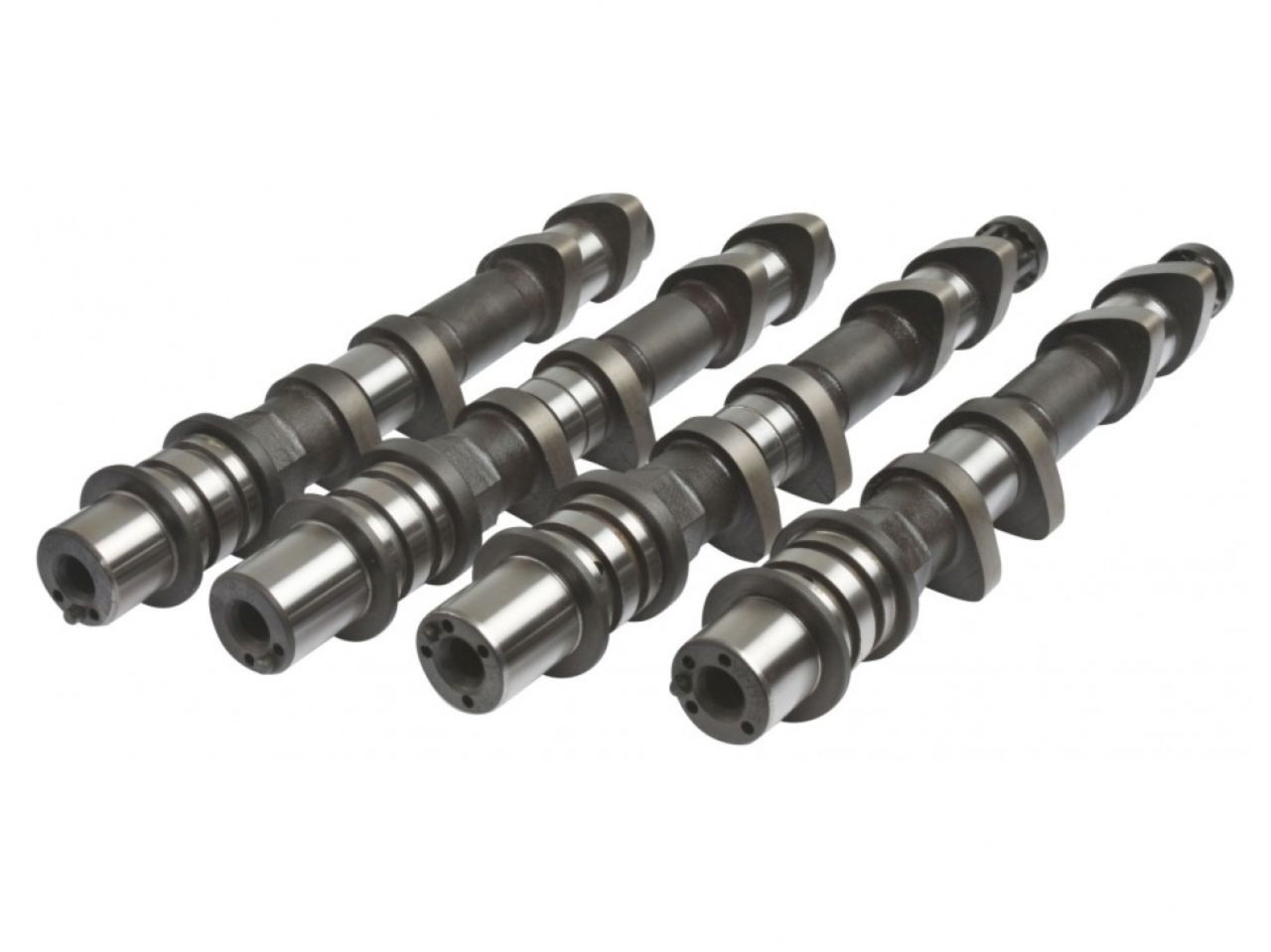

Kelford Cams Subaru Jdm Spec Sti Version 6+ (Shim Under Or Shimless Bucket) - Mecha

New Range Of High Performance Camshafts.282&278/278 Degrees advertised duration. 11.50mm&11.00mm/11.00mm lift.High Lift 282 degree duration racing cams. These cams require cylinder head modification to fit. Suits well built motors with larger intake manifolds. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.

Engine Make:		Engine Model:				Part Number:
SUBARU		EJ20 WRX Version 6-10 AVCS				V2-199-D
Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			11.70mm	Exhaust:	11.25mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			11.50mm	Exhaust:	11.00mm
Advertised Duration @	0.25mm	Intake:			282	Exhaust:	278
Duration @	1.00mm VALVE LIFT	Intake:			240	Exhaust:	236
Timing @	1.00mm VALVE LIFT	IVO:			10 ATDC	EVO:	51 BBDC
IVC:			70 ABDC	EVC:	5 ATDC
Suggested Centre Lines:	Intake:			130	Exhaust:	113
VALVE	Lift @ TDC	Intake:			0.49mm	Exhaust:	1.23

Vehicle Fitments:
