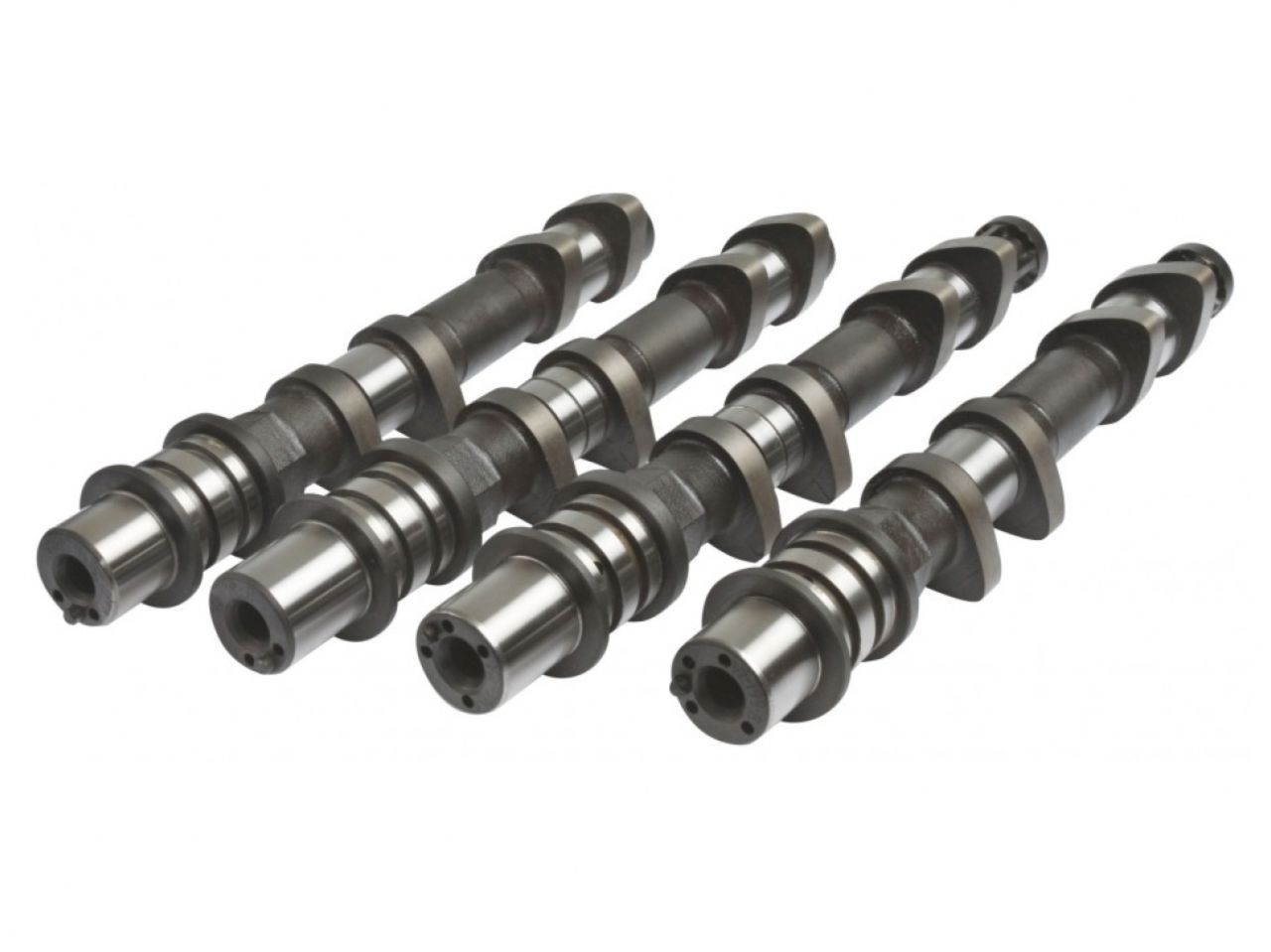

Kelford Cams Mechanical Cam Set; Race Cam; For Shim Under or Shimless Bucket; For A
New Range Of High Performance Camshafts.272&268/268 Degrees advertised duration. 11.30mm&10.50mm/10.50mm lift.High lift 272 degree racing camshafts. Requires cylinder head modification to fit. Suits well built competition motors. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| SUBARU | EJ20 WRX Version 6-10 AVCS | V2-199-C | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.50mm | Exhaust: | 10.75mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.30mm | Exhaust: | 10.50mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 272 | Exhaust: | 268 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 228 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 14 ATDC | EVO: | 47 BBDC | ||
| IVC: | 66 ABDC | EVC: | 1 ATDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 0.12mm | Exhaust: | 1.11 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Subaru | Impreza | I Limited |
| 2013 - 2016 | Subaru | Impreza | i, I Sport |
| 2011 - 2012 | Subaru | Impreza | R |
| 2011 - 2015 | Subaru | Impreza | Sport |
| 2012 - 2016 | Subaru | Impreza | Sport Limited, Limited, Premium, Base, Sport Premium, Touring |
| 2011 - 2014 | Subaru | Impreza | WRX, WRX STI, WRX STI Limited, WRX Limited, WRX Premium |
| 2011 | Subaru | Impreza | XV, Outback Sport, 2.5i Premium, 2.5i |
