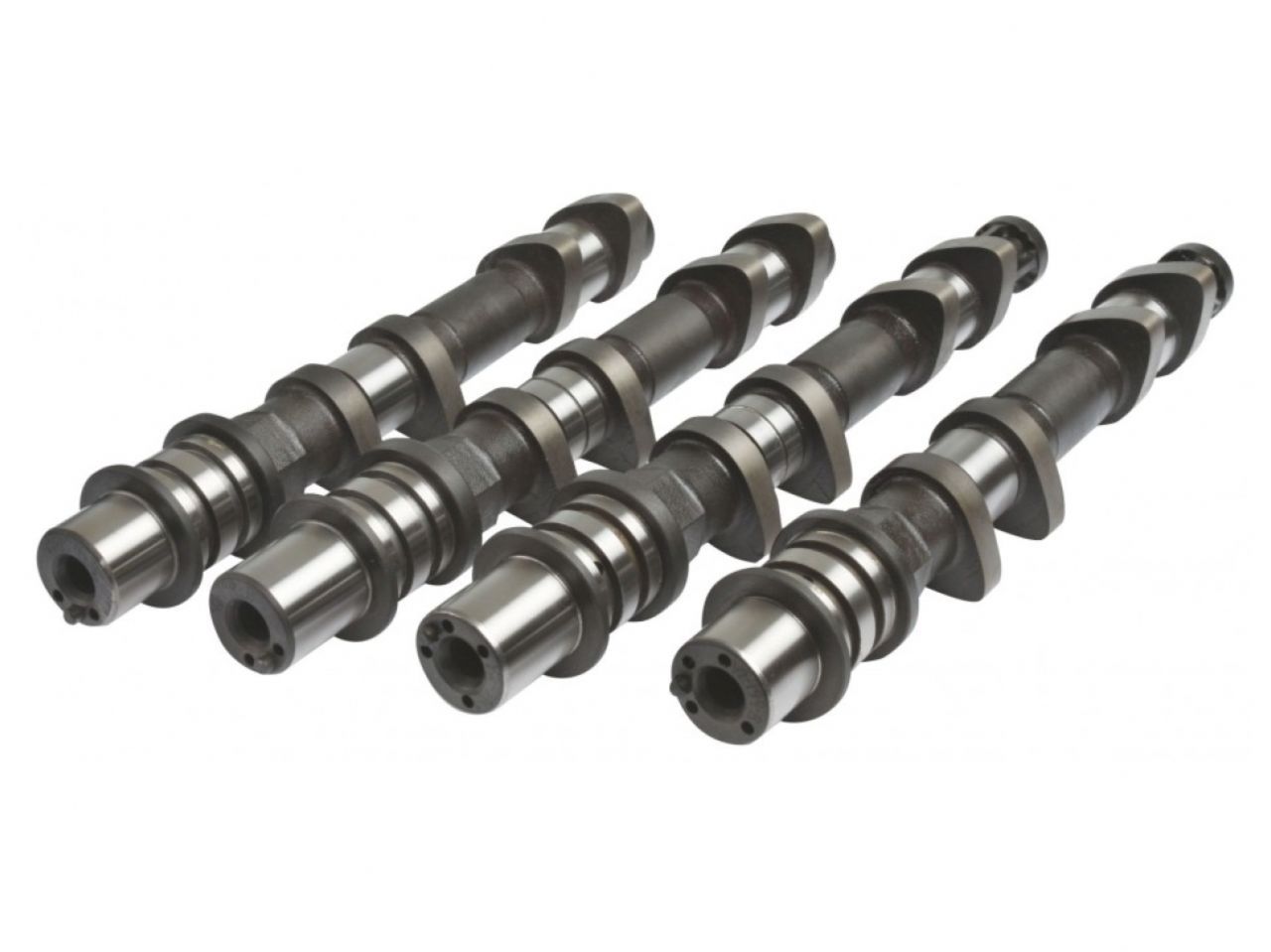

Kelford Cams Mechanical Cam Set; Race Cam; For Shim Under or Shimless Bucket
264&260/260 Degrees advertised duration. 10.70mm&10.20mm/10.20mm lift.
Race and Rally camshafts. High lift, low duration design for great throttle response. Must have shimless buckets and aftermarket ECU.
CAMSHAFT SPECIFICATION
- Engine Make: SUBARU
- Engine Model: EJ20 WRX Version 6-10 AVCS
-
Valve Clearance:
- Intake: 0.20mm Set: COLD at the: CAM
- Exhaust: 0.25mm Set: COLD at the: CAM
- Cam Lift: Intake: 10.90mm Exhaust: 10.45mm
- Rocker Ratio:Intake: 1 Exhaust: 1
- Nett Valve Lift: Intake: 10.70mm Exhaust: 10.20mm
- Advertised Duration @: 0.25mm Intake: 264 Exhaust: 260
- Duration @: 1.00mm VALVE LIFT Intake: 225 Exhaust: 222
-
Timing @: 1.00mm VALVE LIFT
- IVO: 17.5 ATDC EVO: 44 BBDC
- IVC: 62.5 ABDC EVC: 2 BTDC
- Suggested Centre Lines: Intake: 130 Exhaust: 113
- VALVE Lift @: TDC Intake: 0.03mm Exhaust: 0.83
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 | Subaru | Impreza | 2.5i Premium, XV, Outback Sport, 2.5i |
| 2014 - 2016 | Subaru | Impreza | I Limited |
| 2013 - 2016 | Subaru | Impreza | I Sport, i |
| 2011 - 2012 | Subaru | Impreza | R |
| 2011 - 2015 | Subaru | Impreza | Sport |
| 2012 - 2016 | Subaru | Impreza | Sport Limited, Sport Premium, Premium, Touring, Base, Limited |
| 2011 - 2014 | Subaru | Impreza | WRX STI Limited, WRX Limited, WRX STI, WRX Premium, WRX |
Kelford Cams Mechanical Cam Set; Race Cam; For Shim Under or Shimless Bucket
Sale price$988.00 USD
Regular price$1,040.00 USD
