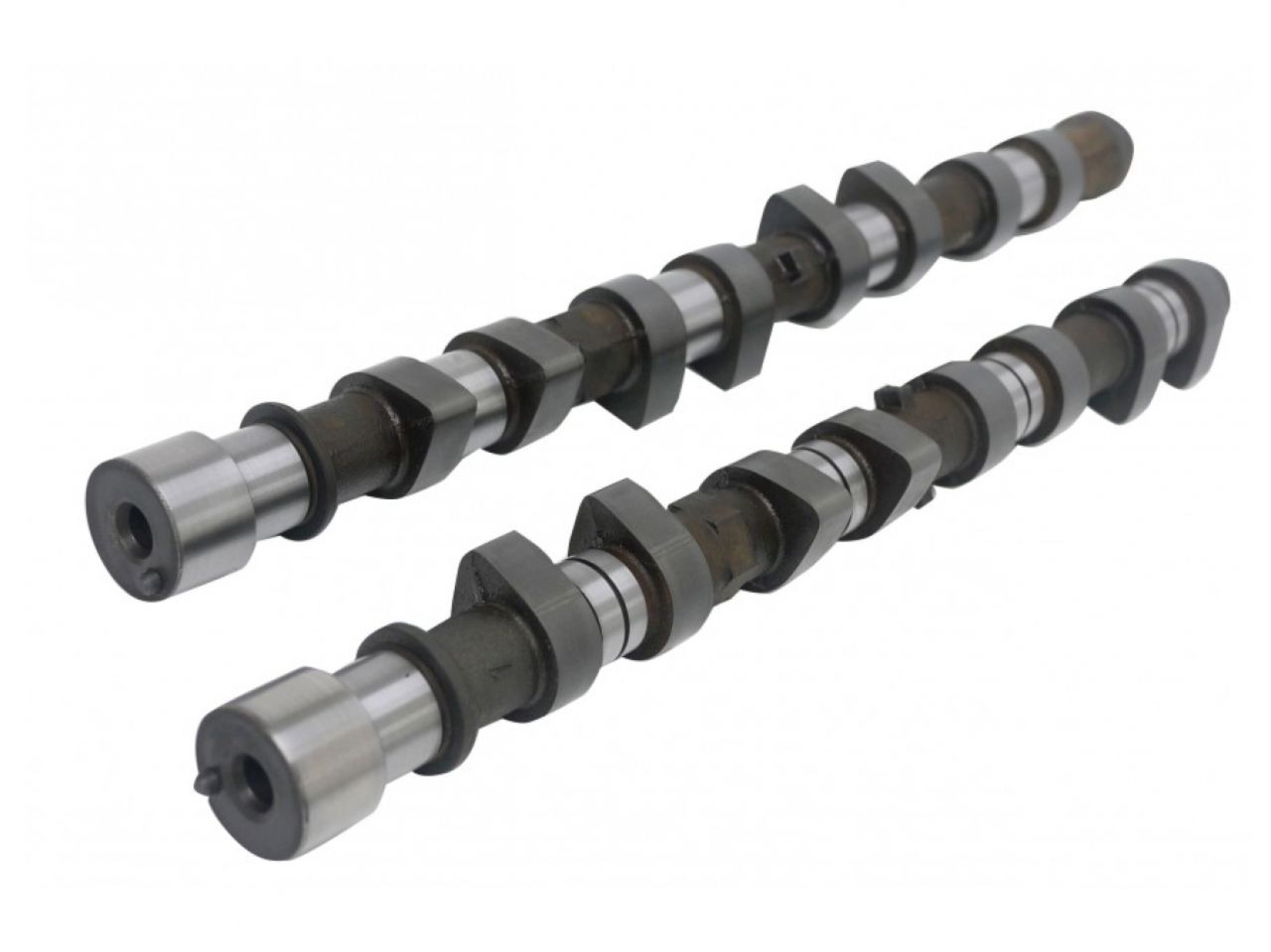

• Kelford Cams Camshafts T203-C Item Image
1 1
Kelford Cams Authorized Dealer

Kelford Cams Hydraulic Cam Set;Rally Cam;Good Midrange(Mazda 323(1988-1989))

Kelford Cams Hydraulic Cam Set;Rally Cam;Good Midrange(Mazda 323(1988-1989))

sku: 0U5TN | mpn: T203-C
$627.00
$660.00 $627.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

272/272 Degrees advertised duration, 10.00mm/9.00mm lift. Top end performance race cams to suit well modified engines.

Specifications

Engine Make: Mazda

Engine Model: Miata 323 B6 Turbo

Cam Lift: 10.00mm (Intake) / 9.00mm (Exhaust)

Rocker Ratio: 1 (Intake) / 1 (Exhaust)

Nett Valve Lift: 10.00mm (Intake) / 9.00mm (Exhaust)

Advertised Duration @: 0.10mm / 272 (Intake) / 272 (Exhaust)

Duration @: 1.00mm Valve Lift / 230 (Intake) / 230 (Exhaust)

Timing @: 1.00mm Valve Lift / 7 BTDC (IVO) / 49 BBDC (EVO);43 ABDC (IVC) / 1 ATDC (EVC)

Suggested Centre Line: 108 (Intake) / 114 (Exhaust)

Valve Lift @ TDC: 1.84mm (Intake) / 1.10 (Exhaust)
