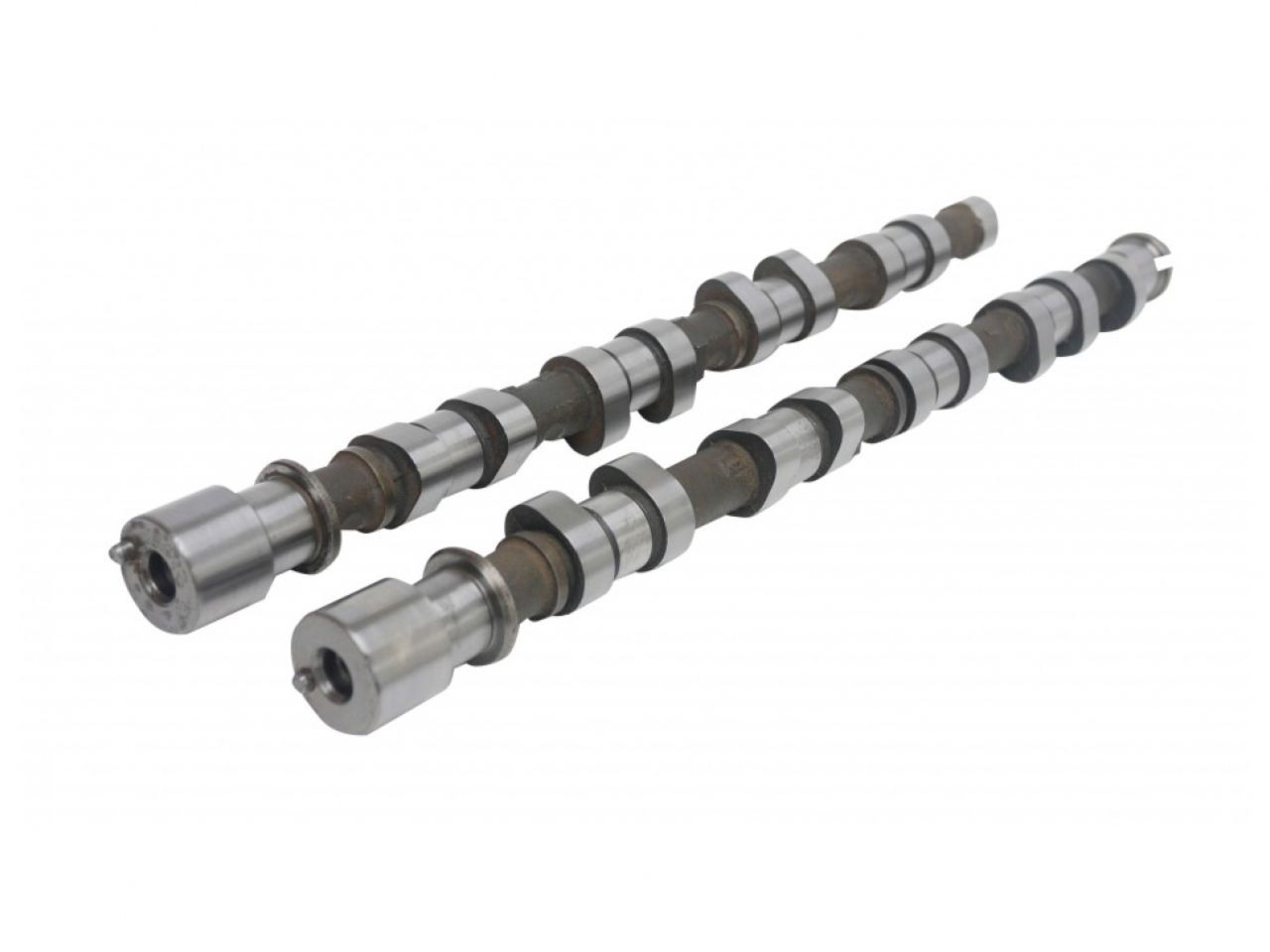

Kelford Cams Toyota Supra / 2jz Turbo Performance Cam

New Range Of High Performance Camshafts.292/302 Degrees advertised duration. 10.80mm/10.80mm lift.Pro-import cams to suit extreme boost, high RPM motors running on Alcohol. Shimless buckets are preferred for these cams.

Engine Make:		Engine Model:				Part Number:
TOYOTA		Supra / 2JZ TURBO				T202-G
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			11.05mm	Exhaust:	11.05mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.80mm	Exhaust:	10.80mm
Advertised Duration @	0.10mm	Intake:			292	Exhaust:	302
Duration @	1.00mm VALVE LIFT	Intake:			252	Exhaust:	260
Timing @	1.00mm VALVE LIFT	IVO:			14 BTDC	EVO:	70 BBDC
IVC:			58 ABDC	EVC:	10 ATDC
Suggested Centre Lines:	Intake:			112	Exhaust:	120
VALVE	Lift @ TDC	Intake:			2.44mm	Exhaust:	1.96

Vehicle Fitments:
