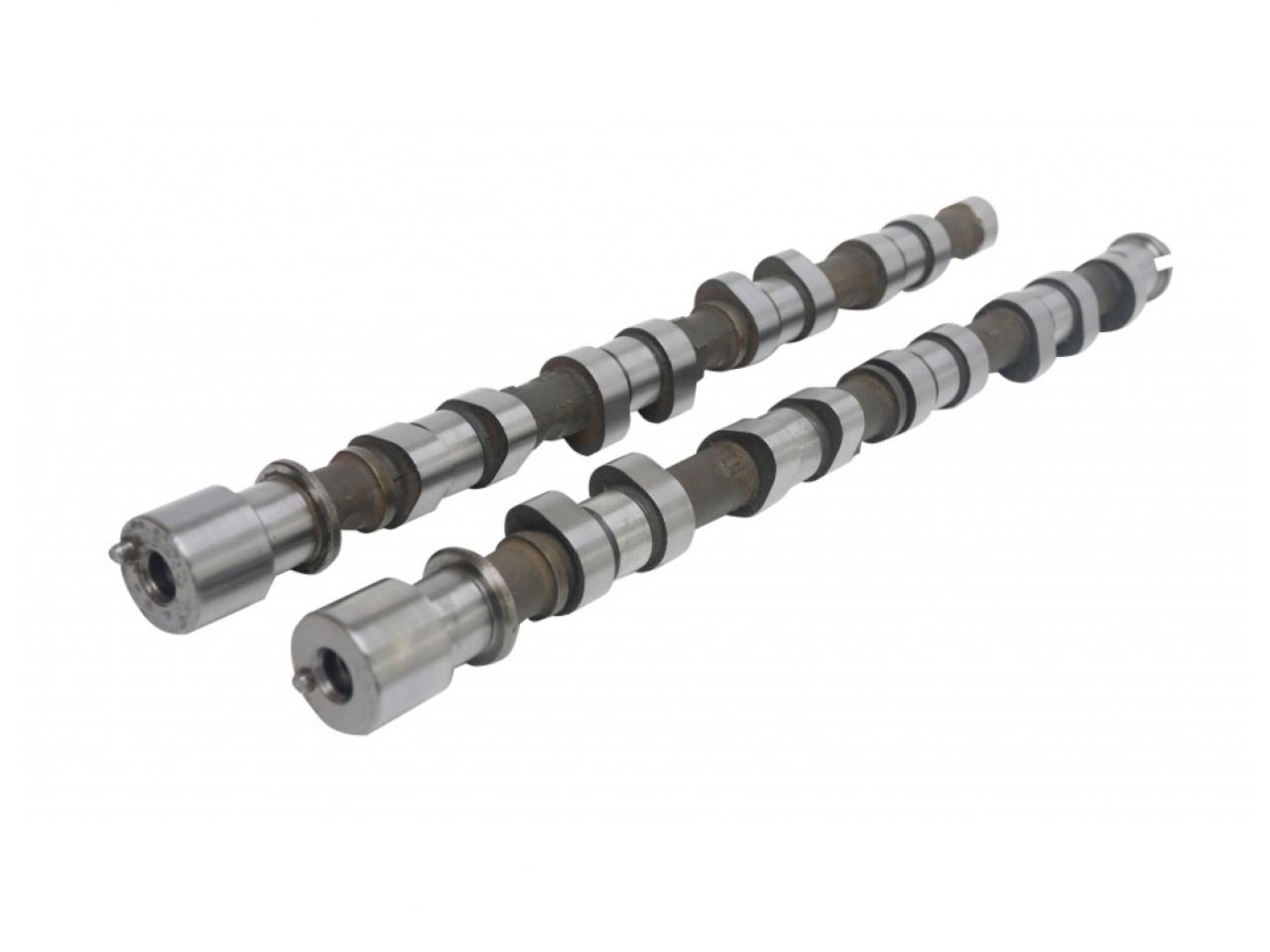

Kelford Cams Toyota Supra / 2JZ TURBO Performance Cam

New Range Of High Performance Camshafts.282/286 Degrees advertised duration. 11.00mm/11.00mm lift.282/286 Degree racing cams to suit engines running an E85 blend. These cams require shimless bucket or shim-under-bucket conversion.

Engine Make:		Engine Model:				Part Number:
TOYOTA		Supra / 2JZ TURBO				T202-F
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			11.25mm	Exhaust:	11.25mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			11.00mm	Exhaust:	11.00mm
Advertised Duration @	0.10mm	Intake:			282	Exhaust:	286
Duration @	1.00mm VALVE LIFT	Intake:			244	Exhaust:	248
Timing @	1.00mm VALVE LIFT	IVO:			10 BTDC	EVO:	64 BBDC
IVC:			54 ABDC	EVC:	4 ATDC
Suggested Centre Lines:	Intake:			112	Exhaust:	120
VALVE	Lift @ TDC	Intake:			2.36mm	Exhaust:	1.40

Vehicle Fitments:
