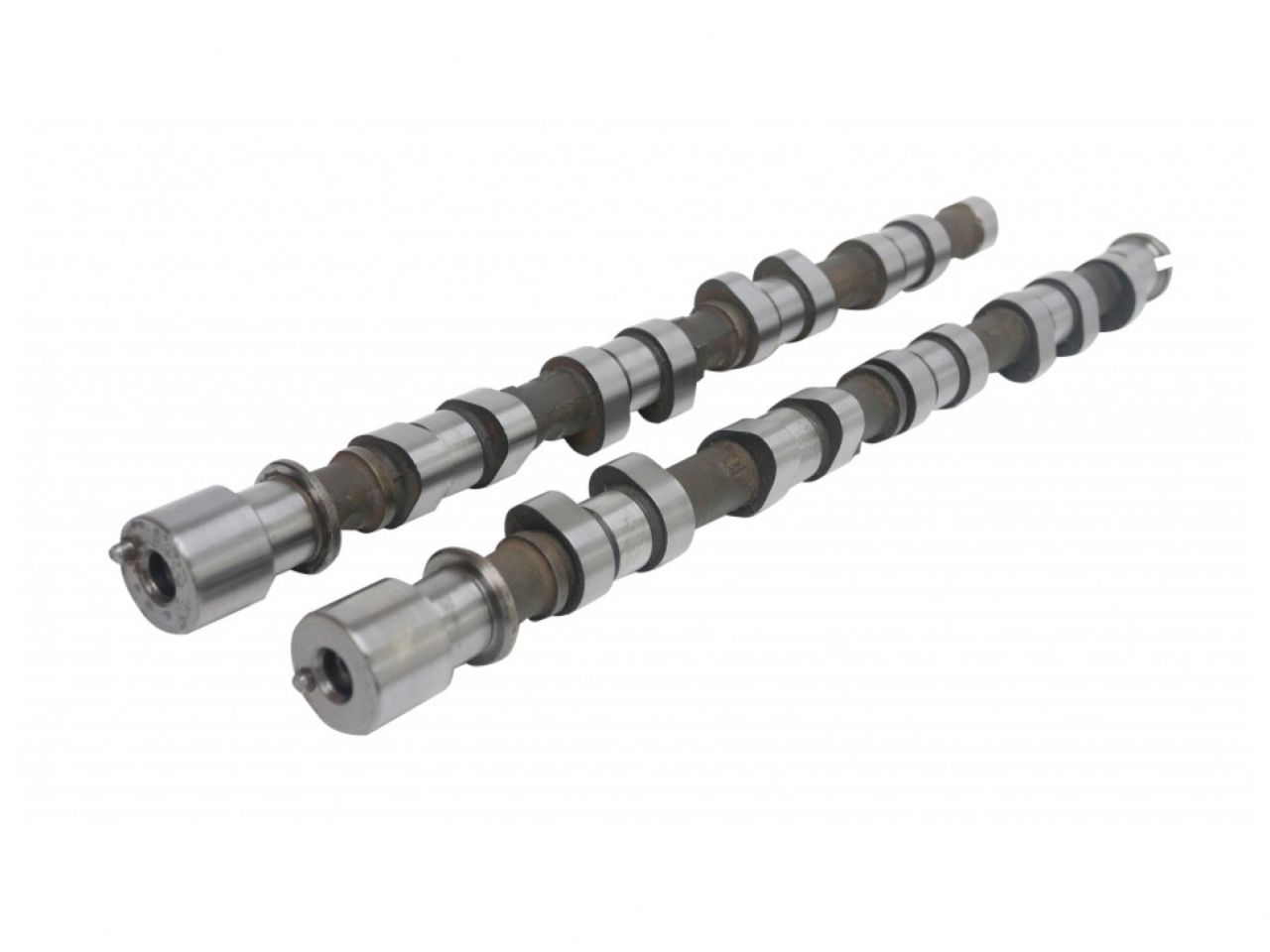

Kelford Cams Mechanical Cam Set; Drag Race Cam; Good Top End RPM; For Well Built En

New Range Of High Performance Camshafts.290/290 Degrees advertised duration. 10.60mm/10.20mm lift.Drag racing cams for top end performance, designed to keep the valve-train stable even on stock buckets.

Engine Make:		Engine Model:				Part Number:
TOYOTA		Supra / 2JZ TURBO				T202-E
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.55mm	Exhaust:	10.25mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.30mm	Exhaust:	10.00mm
Advertised Duration @	0.10mm	Intake:			290	Exhaust:	290
Duration @	1.00mm VALVE LIFT	Intake:			252	Exhaust:	252
Timing @	1.00mm VALVE LIFT	IVO:			16 BTDC	EVO:	66 BBDC
IVC:			56 ABDC	EVC:	6 ATDC
Suggested Centre Lines:	Intake:			110	Exhaust:	120
CAM	Lift @ TDC	Intake:			2.67mm	Exhaust:	1.60

Vehicle Fitments:
